AIR TEMP. DEG.F.								Alt	itude i	n Feet Above		Sea Level
AIR TEMP. DEG.F.	0	500	1000	1500	2000	2500	3000	3500	4000	4500	5000	5500	6000	6500	7000	7500	8000	8500	9000	10000
0°	0.87	0.89	0.91	0.92	0.94	0.96	0.98	0.99	1.01	1.03	1.05	1.06	1.09	1.10	1.13	1.15	1.17	1.19	1.22	1.26
40°	0.94	0.96	0.98	1.00	1.02	1.04	1.06	1.08	1.10	1.12	1.14	1.16	1.19	1.21	1.23	1.26	1.28	1.30	1.32	1.36
70°	1.00	1.02	1.04	1.06	1.08	1.10	1.12	1.14	1.16	1.18	1.20	1.22	1.25	1.27	1.30	1.32	1.35	1.37	1.40	1.45
80°	1.02	1.04	1.06	1.08	1.10	1.12	1.14	1.16	1.19	1.21	1.23	1.26	1.28	1.30	1.33	1.36	1.38	1.41	1.43	1.48
100°	1.06	1.08	1.10	1.12	1.14	1.16	1.19	1.21	1.23	1.25	1.28	1.30	1.33	1.35	1.38	1.41	1.43	1.46	1.48	1.54
120°	1.09	1.12	1.14	1.16	1.18	1.20	1.23	1.25	1.28	1.30	1.32	1.35	1.38	1.40	1.43	1.46	1.48	1.51	1.53	1.58
140°	1.13	1.15	1.18	1.20	1.22	1.25	1.27	1.29	1.32	1.34	1.37	1.40	1.42	1.45	1.48	1.51	1.54	1.57	1.58	1.65
160°	1.17	1.19	1.22	1.24	1.26	1.29	1.31	1.34	1.36	1.39	1.42	1.44	1.47	1.50	1.53	1.56	1.59	1.62	1.64	1.70
180°	1.21	1.23	1.26	1.28	1.3	1.33	1.36	1.38	1.41	1.43	1.46	1.49	1.52	1.55	1.58	1.61	1.64	1.67	1.70	1.75
200°	1.25	1.27	1.29	1.32	1.34	1.37	1.40	1.42	1.45	1.48	1.51	1.54	1.57	1.60	1.63	1.66	1.69	1.72	1.75	1.81
250°	1.34	1.36	1.39	1.42	4.45	1.47	1.50	1.53	1.56	1.59	1.62	1.65	1.68	1.71	1.74	1.78	1.82	1.85	1.88	1.94
300°	1.43	1.46	1.49	1.52	1.55	1.58	1.61	1.64	1.67	1.70	1.74	1.77	1.80	1.84	1.87	1.91	1.94	1.98	2.00	2.08
350°	1.53	1.56	1.59	1.62	1.65	1.68	1.72	1.75	1.78	1.81	1.85	1.88	1.92	1.96	2.00	2.04	2.07	2.11	2.14	2.22
400°	1.62	1.65	1.69	1.72	1.75	1.79	1.82	1.85	1.89	1.93	1.96	2.00	2.04	2.08	2.12	2.16	2.20	2.25	2.27	2.35
450°	1.72	1.75	1.79	1.82	1.86	1.89	1.93	1.96	2.00	2.04	2.08	2.12	2.16	2.20	2.24	2.29	2.33	2.38	2.41	2.50
500°	1.81	1.85	1.88	1.92	1.96	1.99	2.03	2.07	2.11	2.15	2.19	2.23	2.28	2.32	2.36	2.41	2.46	2.51	2.54	2.62
550°	1.91	1.94	1.98	2.02	2.06	2.10	2.14	2.18	2.22	2.26	2.30	2.35	2.40	2.44	2.49	2.54	2.58	2.63	2.68	2.77
600°	2.00	2.04	2.08	2.12	2.16	2.20	2.24	2.29	2.33	2.38	2.42	2.47	2.50	2.56	2.61	2.66	2.71	2.77	2.80	2.90
650°	2.10	2.14	2.18	2.22	2.26	2.31	2.35	2.40	2.44	2.49	2.54	2.58	2.63	2.68	2.74	2.79	2.84	2.90	2.94	3.04
700°	2.19	2.23	2.27	2.32	2.36	2.41	2.46	2.50	2.55	2.60	2.65	2.70	2.75	2.80	2.86	2.91	2.97	3.03	3.06	3.18
750°	2.28	2.33	2.37	2.42	2.47	2.51	2.56	2.61	2.66	2.71	2.76	2.81	2.87	2.92	2.98	3.04	3.10	3.16	3.19	3.31
800°	2.38	2.43	2.48	2.52	2.57	2.62	2.66	2.72	2.76	2.81	2.86	2.90	2.98	3.02	3.10	3.14	3.21	3.26	3.33	3.45
850°	2.47	2.52	2.57	2.62	2.67	2.72	2.76	2.82	2.87	2.92	2.97	3.02	3.09	3.14	3.21	3.26	3.33	3.38	3.46	3.58
900°	2.57	2.62	2.67	2.72	2.76	2.83	2.88	2.93	2.98	3.03	3.08	3.14	3.21	3.26	3.34	3.39	3.47	3.52	3.60	3.73
950°	2.66	2.72	2.77	2.82	2.87	2.92	2.98	3.03	3.08	3.14	3.19	3.24	3.32	3.38	3.46	3.51	3.58	3.64	3.72	3.86
1000°	2.76	2.82	2.87	2.92	2.98	3.04	3.09	3.14	3.20	3.26	3.31	3.37	3.45	3.50	3.59	3.64	3.72	3.78	3.86	4.00

Correction Factor Table - Industrial Blower Fan

Procedure for Using Correction Factors

The density of air at 70°F and 29.92" barometric pressure (sea level) is .075 lbs./cu. ft. and all Industrial Blower Fan performance tables shown herein have been developed at this standard density. When either temperature or barometric pressure deviates from the

Example: Use of correction factor table for Industrial Blower Fan. Requirement: An Industrial Blower Fan to deliver 9640 CFM at 8" SP at 450°F and 4000 ft. above sea level.

Data needed to fill requirements for Industrial Blower Fan:

Industrial Blower Fan size, BHP and RPM. 1 From the table above, the correction factor for 450°F and 4000 ft. above sea level is 2.0.

above, a change in density obviously results, thus changing Industrial Blower Fan BHP requirements (system capacity and pressure requirements being fixed by design conditions). In order to use standard performance tables to determine correct BHP

2 8" SP (Design S.P.) x 2.0 equals 16" S.P.

(S.P. corrected to 70°F at sea level). 3 Select from performance table an Industrial Blower Fan to deliver 9640 CFM at 16" S.P. Best

selection indicates a No. M21 Industrial Blower Fan,Type I.E. at 1519 RPM and

39.32 BHP. 4 Correct BHP by dividing 39.32 BHP

by 2.0. This equals 19.66 BHP (correct for 450°F at 4000 ft. altitude).

when installation environment involves either or both non-standard temperature and barometric pressure, the following density correction factor table has been developed through applicable physical laws for Industrial Blower Fans.

Recommended selection: NIS-CO Industrial Blower Fan, Size M21: Capacity 9640 CFM, S.P. 8", Temperature 450°F, Altitude 4000 ft.,1519 RPM and 19.66 BHP. Note: Caution should be exercised in selecting the Industrial Blower Fan

motor sizes for operating Industrial Blower Fans handling high temperature air. If the operation of the system is such that there is a build-up period starting with lower temperature air, this will result in the Industrial Blower Fan requiring more horsepower during that period and a motor size should be selected for the most severe condition.

General balancing machines for Industrial Blower Fans. The necessary M Wheels only are good for maximum Housings are made of prime steel weights are arc welded into place tip speed of 18,500 FPM in standard plate, continuously welded, and so that the wheel will always stay in duty construction with heavy duty rigidly braced. Wheels are made balance. After complete blowers are shaft and bearings.

of heavy steel plate, all welded and dynamically balanced. Standard paint finish is baked polyester over phosphatize-cleaned steel. Various corrosion resistant coatings are available — refer to NIS-CO Industrial Blower Fan Catalog No. 35-300 “Special Paints and Protective Coatings.”

Static and Dynamic Balancing

Completed wheel assemblies of all sizes for Industrial Blower Fans are statically and dynamically balanced on electronically controlled assembled, they are all given a running-in inspection and again examined for balance by a portable electronic balancing unit. Inspectors add balance weights to the wheel if necessary to pass a very rigid inspection requirement.

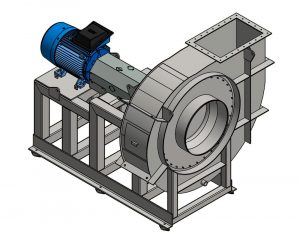

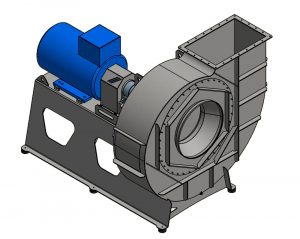

Standard Duty Construction - Industrial Blower Fans

This construction includes standard wheel, housing, shaft and bearing. All wheel types good for a maximum tip speed of 15,000 FPM.

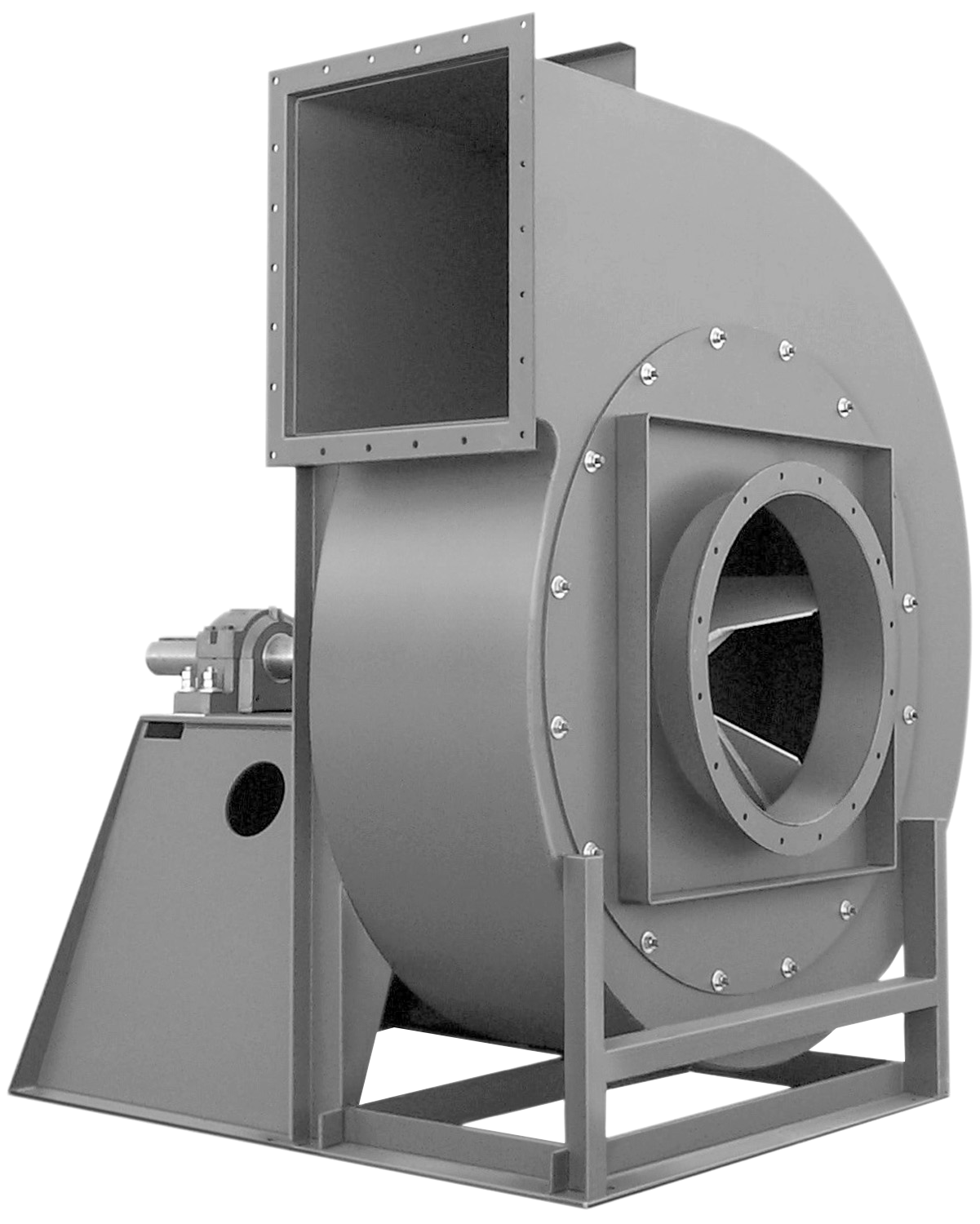

Heavy Duty Construction - Industrial Blower Fans

This construction is available only with the M type wheels and is used for exceptional abrasive conditions. This includes heavy duty wheel, housing, shaft and bearing with a maximum operating limit of 15,000 FPM tip speed.

Industrial Blower Fans are equipped with self-aligning single row ball bearings, double row spherical roller one-piece and two-piece housings.

Computerized selections have been made on all bearings based on radial, thrust and combined loads to give 100,000 average life hours (AFBMA L50) at the maximum design of each Industrial Blower Fan class.

Bearings selected have effective seals to retain the lubricant and to prevent against contamination. All have grease fittings for re-lubrication.

Bearings are available for 400,000 average life hours (AFBMA L50).

For high temperature Industrial Blower Fan application, the inboard bearing is protected by a cast aluminum heat slinger at system air temperatures of 250°F to 600°F, with both bearings furnished with hi-temp grease. Above 600°F, consult factory.

Standards adopted for spark-resistant Industrial Blower Fan AMCA Standard 99-0401-86

Spark Resistant — Type A:

AMCA Standards require that all parts of the Industrial Blower Fan in contact with the air or gas being handled shall be made of non-ferrous material.

Spark Resistant — Type B:

AMCA Standards require that the Industrial Blower Fan to have the wheel and ring about the opening through which the shaft passes of non-ferrous material. Ferrous hubs, shafts and hardware are permitted. Industrial Blower Fans for this condition are furnished with a non-ferrous wheel (except hub and hardware) and a non-ferrous shaft seal around the shaft opening.

Spark Resistant — Type C:

AMCA standards require the Industrial Blower Fan to be so constructed that a shift of the wheel or shaft will not permit two ferrous parts of the Industrial Blower Fan to rub or strike. Industrial Blower Fans for this condition will be furnished with a non-ferrous inlet cone and rubbing plate around the shaft opening.

Note: For all type spark resistant Industrial Blower Fans, the user shall electrically ground all Industrial Blower Fan parts. Either A or B construction conforms to requirements of National Board of Fire Underwriters Pamphlet No. 91 for Industrial Blower Fans handling flammable vapors. Bearings shall not be placed in the air or gas stream. A non-ferrous material shall be any material with less than 5% iron or other material with demonstrated ability to be spark resistant.

The use of these constructions in no way implies a guarantee of safety for any level of spark resistance. Spark resistant construction does not protect against ignition of explosive gases caused by catastrophic failure or from any airstream material that may be present in a system.

Spark-proof construction available in Arrangements 1, 8, 9, and 10 only.

Reprinted from Canada Blower publication 99.

OUTLET WHEEL DIAMETER — 121/8" INLET

0.277 SQ. FT. INSIDE AREA 0.267 SQ. FT. INSIDE AREA

L-07

6" x 7" OUTSIDE DIAMETER TIP SPEED (FPM) = 3.207 X RPM 71/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		1.5 S.P.		2 S.P.		3 S	.P.	4 S	.P.	5 S	.P.	6 S	.P.	7 S	.P.	8 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
277 332 388	1000 1200 1400	1164 1199 1240	0.09 0.11 0.13	1393 1422 1456	0.13 0.16 0.18	1590 1615 1644	0.18 0.21 0.25	1926 1945 1968	0.29 0.33 0.38	2211 2227 2247	0.41 0.46 0.52	2478 2496	0.60 0.67	2722	0.82
443 499 554	1600 1800 2000	1286 1336 1391	0.15 0.18 0.21	1495 1538 1585	0.21 0.24 0.28	1678 1716 1758	0.28 0.32 0.36	1996 2027 2063	0.42 0.47 0.52	2271 2298 2328	0.58 0.64 0.70	2516 2540 2567	0.74 0.81 0.88	2740 2762 2786	0.90 0.99 1.07	2948 2967 2990	1.08 1.17 1.27	3160 3180	1.36 1.48
609 665 720	2200 2400 2600	1449 1510 1573	0.25 0.29 0.34	1636 1690 1747	0.32 0.37 0.43	1804 1853 1904	0.41 0.46 0.52	2101 2143 2187	0.58 0.64 0.71	2362 2399 2438	0.77 0.84 0.92	2597 2630 2666	0.96 1.05 1.14	2814 2844 2876	1.17 1.26 1.36	3015 3042 3073	1.37 1.48 1.59	3203 3229 3257	1.59 1.71 1.82
776 831 886	2800 3000 3200	1639 1707 1776	0.39 0.45 0.52	1806 1868 1932	0.49 0.55 0.63	1959 2016 2075	0.58 0.66 0.74	2235 2284 2337	0.79 0.87 0.96	2480 2525 2572	1.00 1.09 1.19	2704 2745 2788	1.23 1.33 1.44	2912 2949 2989	1.47 1.58 1.70	3105 3141 3178	1.71 1.83 1.96	3288 3321 3356	1.96 2.09 2.23
942 997 1053	3400 3600 3800	1847 1919 1992	0.60 0.68 0.77	1998 2065 2134	0.71 0.80 0.90	2137 2200 2265	0.82 0.92 1.02	2391 2448 2506	1.06 1.16 1.28	2622 2673 2726	1.30 1.42 1.54	2834 2881 2931	1.56 1.68 1.82	3031 3076 3122	1.82 1.96 2.10	3217 3259 3302	2.10 2.24 2.40	3393 3432 3474	2.38 2.54 2.70
1108 1163 1219	4000 4200 4400	2066 2141	0.87 0.98	2204 2275 2347	1.00 1.12 1.24	2331 2399 2468	1.14 1.26 1.39	2566 2628 2692	1.40 1.54 1.68	2782 2839 2897	1.68 1.82 1.98	2982 3035 3090	1.96 2.12 2.28	3170 3220 3271	2.26 2.42 2.59	3348 3395 3443	3.56 2.73 2.92	3516 3561 3608	2.87 3.05 3.25
1274 1330 1385	4600 4800 5000			2420 2494 2568	1.38 1.52 1.68	2538 2609 2681	1.53 1.68 1.84	2756 2822 2889	1.84 2.00 2.18	2958 3019 3082	2.15 2.32 2.51	3146 3204 3264	2.46 2.65 2.85	3325 3379 3435	2.78 2.98 3.19	3494 3546 3599	3.11 3.32 3.54	3656 3705 3756	3.45 3.67 3.90
1440 1496 1551	5200 5400 5600			2643	1.84	2754 2827 2901	2.02 2.20 2.40	2958 3027 3097	2.36 2.56 2.77	3146 3212 3278	2.71 2.92 3.15	3324 3386 3449	3.06 3.29 3.52	3493 3552 3612	3.41 3.65 3.90	3654 3711 3768	3.77 4.02 4.28	3809 3863 3918	4.14 4.40 4.67
1607	5800					2975	2.61	3167	3.00	3345	3.39	3513	3.77	3673	4.16	3827	4.55	3974	4.95

VOL. CFM	OUTLET VEL. FPM	9 S.P.		10 S.P.		11 S.P.		12	S.P.	13	S.P.	14	S.P.	15	S.P.	16	S.P.	17 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
609 665 720	2200 2400 2600	3382 3406 3433	1.81 1.94 2.08	3552 3574 3599	2.04 2.18 2.33	3714 3735 3759	2.27 2.42 2.58	3869 3890 3912	2.50 2.67 2.84	4019 4038 4060	2.74 2.92 3.10	4163 4182 4202	2.99 3.18 3.37	4303 4320 4340	3.24 3.44 3.64	4438 4455 4474	3.49 3.70 3.92	4569 4585 4604	3.74 3.97 4.20
776 831 886	2800 3000 3200	3461 3492 3526	2.22 2.36 2.51	3627 3656 3687	2.48 2.63 2.80	3785 3813 3843	2.74 2.91 3.09	3937 3963 3992	3.01 3.19 3.38	4083 4109 4136	3.29 3.48 3.68	4225 4249 4275	3.57 3.77 3.98	4362 4385 4410	3.85 4.07 4.29	4494 4517 4541	4.14 4.37 4.60	4624 4645 4669	4.43 4.67 4.92
942 997 1053	3400 3600 3800	3561 3598 3637	2.67 2.84 3.01	3721 3756 3793	2.97 3.14 3.33	3874 3908 3944	3.27 3.45 3.65	4022 4055 4089	3.57 3.77 3.98	4165 4196 4229	3.88 4.09 4.31	4303 4333 4365	4.20 4.42 4.65	4437 4466 4497	4.52 4.75 4.99	4568 4596 4625	4.84 5.08 5.34
1108 1163 1219	4000 4200 4400	3678 3720 3765	3.19 3.38 3.59	3833 3873 3916	3.52 3.72 3.93	3981 4021 4061	3.85 4.07 4.29	4125 4163 4202	4.19 4.42 4.65	4264 4300 4338	4.54 4.77 5.01	4399 4434 4470	4.89 5.13 5.39	4529 4563 4599	5.24 5.50 5.76	4656	5.60
1274 1330 1385	4600 4800 5000	3811 3858 3907	3.80 4.03 4.26	3960 4006 4053	4.16 4.39 4.64	4104 4148 4193	4.52 4.77 5.02	4243 4285 4329	4.89 5.15 5.41	4378 4419 4461	5.27 5.53 5.81	4509 4548 4589	5.65 5.92 6.21	4636 4674	6.04 6.32
1440 1496 1551	5200 5400 5600	3958 4009 4063	4.52 4.78 5.06	4101 4151 4202	4.90 5.17 5.46	4240 4288 4338	5.29 5.57 5.87	4374 4421 4469	5.69 5.98 6.29	4505 4550 4597	6.10 6.40 6.71	4632 4676	6.51 6.82
1607 1662 1717	5800 6000 6200	4117 4173 4229	5.35 5.66 5.99	4255 4309 4363	5.76 6.08 6.42	4388 4441 4494	6.18 6.51 6.85	4518 4569 4620	6.61 6.95 7.30	4645	7.04
1773 1828	6400 6600	4287 4346	6.32 6.68	4420 4477	6.77 7.13	4548 4604	7.21 7.59	4673	7.67

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 15 5/8" INLET

0.44 SQ. FT. INSIDE AREA 0.44 SQ. FT. INSIDE AREA

M-09

9" x 71/2" OUTSIDE DIAMETER TIP SPEED (FPM) = 4.09 X RPM 91/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
440 528 616	1000 1200 1400	880 906 943	0.12 0.15 0.18	1223 1243	0.29 0.34	1492	0.52
704 792 880	1600 1800 2000	986 1032 1079	0.22 0.27 0.32	1268 1300 1338	0.39 0.45 0.52	1511 1533 1558	0.58 0.65 0.73	1722 1739 1761	0.79 0.87 0.96	1926 1944	1.11 1.21	2112	1.47
968 1056 1144	2200 2400 2600	1127 1177 1227	0.38 0.45 0.53	1380 1425 1472	0.60 0.69 0.78	1591 1628 1670	0.82 0.92 1.03	1785 1813 1847	1.06 1.17 1.30	1965 1988 2014	1.32 1.44 1.58	2130 2151 2174	1.60 1.73 1.88	2284 2303 2324	1.88 2.03 2.19	2446 2465	2.34 2.51	2583 2599	2.66 2.84	2728	3.19
1232 1320 1408	2800 3000 3200	1279 1331 1384	0.62 0.72 0.82	1519 1567 1616	0.891.011.14	1714 1760 1806	1.16 1.30 1.45	1886 1928 1972	1.441.591.76	2047 2083 2123	1.731.892.07	2200 2230 2265	2.03 2.20 2.40	2347 2373 2402	2.36 2.54 2.74	2487 2510 2536	2.69 2.89 3.09	2619 2641 2665	3.04 3.25 3.47	2746 2766 2788	3.39 3.62 3.85
1496 1584 1672	3400 3600 3800	1438 1493 1548	0.94 1.08 1.22	1666 1716 1767	1.28 1.44 1.61	1854 1901 1950	1.62 1.79 1.98	2017 2064 2111	1.94 2.14 2.35	2165 2209 2255	2.27 2.49 2.72	2304 2345 2388	2.61 2.83 3.08	2437 2474 2514	2.96 3.19 3.45	2565 2600 2636	3.32 3.57 3.83	2690 2719 2754	3.70 3.95 4.23	2812 2838 2867	4.09 4.35 4.63
1760 1848 1936	4000 4200 4400	1604 1661 1718	1.38 1.55 1.74	1819 1871 1924	1.79 1.98 2.19	1999 2049 2099	2.18 2.40 2.63	2158 2206 2255	2.58 2.81 3.07	2301 2348 2395	2.96 3.22 3.50	2433 2479 2525	3.34 3.62 3.92	2557 2601 2646	3.73 4.02 4.34	2675 2717 2760	4.12 4.43 4.76	2790 2829 2870	4.53 4.85 5.19	2902 2937 2976	4.95 5.27 5.63
2024 2112 2200	4600 4800 5000	1775 1834 1892	1.94 2.16 2.40	1978 2032 2087	2.42 2.66 2.92	2150 2202 2254	2.88 3.15 3.43	2304 2354 2404	3.34 3.62 3.93	2443 2492 2541	3.79 4.09 4.42	2572 2619 2667	4.23 4.56 4.91	2692 2739 2786	4.67 5.02 5.39	2805 2851 2897	5.11 5.48 5.87	2913 2958 3003	5.56 5.94 6.35	3017 3060 3104	6.00 6.41 6.83
2288 2376 2464	5200 5400 5600	1951 2011 2070	2.66 2.93 3.22	2142 2197 2253	3.20 3.50 3.81	2307 2360 2413	3.73 4.05 4.39	2455 2506 2558	4.25 4.59 4.95	2590 2640 2690	4.76 5.12 5.51	2715 2764 2814	5.27 5.66 6.06	2833 2881 2929	5.78 6.18 6.61	2944 2991 3038	6.28 6.71 7.15	3049 3095 3142	6.78 7.23 7.69	3149 3195 3241	7.27 7.74 8.23
2552	5800	2130	3.54	2309	4.15	2467	4.74	2610	5.33	2741	5.91	2863	6.48	2978	7.05	3086	7.62	3189	8.18	3288	8.74

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1144	2600	2852	3.54
1232 1320 1408	2800 3000 3200	2867 2886 2907	3.76 3.99 4.24	2984 3001 3021	4.13 4.38 4.64	3113 3131	4.77 5.04	3222 3238	5.17 5.46	3342	5.88	3444	6.31
1496 1584 1672	3400 3600 3800	2930 2954 2980	4.50 4.77 5.06	3043 3066 3090	4.915.20 5.50	3152 3174 3197	5.33 5.63 5.94	3257 3278 3301	5.766.07 6.40	3360 3380 3402	6.196.52 6.86	3460 3479 3500	6.63 6.97 7.33	3557 3575 3595	7.08 7.43 7.80	3653 3669 3688	7.54 7.90 8.28	3761 3779	8.38 8.77	3852 3868	8.86 9.26
1760 1848 1936	4000 4200 4400	3009 3044 3080	5.37 5.72 6.08	3117 3147 3182	5.82 6.166.54	3222 3249 3280	6.27 6.62 7.00	3325 3350 3378	6.74 7.107.48	3424 3449 3475	7.22 7.597.98	3522 3545 3570	7.70 8.08 8.49	3616 3639 3663	8.19 8.59 9.00	3709 3730 3753	8.68 9.09 9.53	3799 3820 3842	9.18 9.61 10.05	3887 3907 3929	9.69 10.13 10.59
2024 2112 2200	4600 4800 5000	3119 3159 3202	6.46 6.88 7.31	3218 3256 3297	6.937.357.80	3316 3351 3390	7.42 7.84 8.30	3409 3444 3481	7.908.348.81	3503 3536 3571	8.408.859.33	3596 3626 3659	8.91 9.36 9.86	3688 3715 3745	9.44 9.90 10.39	3778 3804 3832	9.97 10.44 10.94	3866 3891 3917	10.52 11.00 11.50	3952 3976 4001	11.06 11.56 12.07
2288 2376 2464	5200 5400 5600	3246 3291 3337	7.77 8.26 8.77	3340 3383 3428	8.288.78 9.30	3431 3473 3517	8.79 9.30 9.84	3520 3561 3604	9.319.83 10.38	3608 3647 3688	9.8310.37 10.93	3695 3732 3772	10.37 10.92 11.49	3781 3816 3854	10.92 11.47 12.06	3863 3900 3934	11.47 12.05 12.63	3946 3979 4014	12.03 12.61 13.21	4029 4059 4093	12.61 13.19 13.80
2552 2640 2728	5800 6000 6200	3383 3429 3476	9.30 9.85 10.42	3474 3520 3566	9.85 10.42 11.02	3562 3607 3653	10.40 10.99 11.31	3647 3692 3737	10.96 11.57 12.20	3731 3774 3819	11.53 12.15 12.80	3813 3855 3899	12.10 12.73 13.39	3893 3935 3977	12.67 13.32 13.99	3973 4013 4054	13.26 13.91 14.60	4051 4090 4130	13.85 14.51 15.21	4128 4166 4205	14.45 15.12 15.84
2816 2904	6400 6600	3523 3571	11.02 11.64	3613 3660	11.63 12.28	3699 3746	12.25 12.91	3783 3829	12.86 13.54	3864 3910	13.47 14.17	3943 3989	14.08 14.80	4021 4066	14.70 15.44	4097 4141	15.32 16.07	4172 4215	15.95 16.71	4245 4287	16.58 17.36

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts. Data in orange background applies to heavy duty shaft and bearings.

OUTLET WHEEL DIAMETER — 191/8" INLET

0.657 SQ. FT. INSIDE AREA 0.66 SQ. FT. INSIDE AREA

M-11

11" x 91/16" OUTSIDE DIAMETER TIP SPEED (FPM) = 5.01 X RPM 111/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
657 788 920	100 1200 1400	720 742 771	0.18 0.22 0.27	1001 1017	0.44 0.50	1221	0.77
1051 1183 1314	1600 1800 2000	807 844 883	0.33 0.40 0.48	1037 1064 1094	0.58 0.67 0.77	1236 1254 1275	0.87 0.97 1.09	1409 1423 1441	1.18 1.30 1.44	1576 1590	1.65 1.81	1728	2.20
1445 1577 1708	2200 2400 2600	922 963 1004	0.57 0.68 0.79	1129 1166 1204	0.89 1.02 1.17	1302 1332 1366	1.22 1.37 1.55	1460 1483 1511	1.58 1.75 1.94	1607 1627 1648	1.98 2.16 2.36	1743 1760 1779	2.39 2.59 2.80	1869 1884 1902	2.81 3.03 3.27	2001 2017	3.50 3.75	2113 2127	3.98 4.25	2232	4.76
1840 1971 2102	2800 3000 3200	1046 1089 1133	0.92 1.07 1.23	1243 1282 1322	1.34 1.51 1.71	1402 1440 1478	1.74 1.95 2.17	1543 1577 1613	2.15 2.38 2.63	1674 1704 1737	2.58 2.82 3.10	1800 1825 1853	3.04 3.29 3.58	1921 1941 1965	3.52 3.79 4.09	2035 2054 2075	4.03 4.31 4.62	2143 2161 2180	4.54 4.85 5.18	2247 2263 2281	5.07 5.40 5.75
2234 2365 2497	3400 3600 3800	1177 1222 1267	1.41 1.61 1.83	1363 1404 1446	1.92 2.15 2.40	1517 1556 1596	2.42 2.68 2.96	1651 1688 1727	2.90 3.20 3.51	1771 1808 1845	3.39 3.71 4.06	1885 1919 1954	3.89 4.23 4.60	1994 2024 2057	4.42 4.77 5.16	2098 2127 2156	4.96 5.33 5.73	2201 2225 2253	5.53 5.90 6.32	2301 2322 2346	6.12 6.50 6.92
2628 2759 2891	4000 4200 4400	1313 1359 1406	2.06 2.32 2.60	1488 1531 1574	2.67 2.96 3.28	1636 1676 1718	3.26 3.59 3.93	1766 1805 1845	3.85 4.20 4.58	1883 1921 1960	4.42 4.81 5.22	1991 2028 2066	4.99 5.41 5.85	2092 2128 2165	5.57 6.01 6.48	2189 2223 2259	6.16 6.62 7.11	2282 2314 2348	6.76 7.24 7.75	2374 2403 2435	7.39 7.88 8.41
3022 3154 3285	4600 4800 5000	1453 1500 1548	2.91 3.23 3.59	1618 1662 1707	3.61 3.98 4.37	1759 1802 1844	4.30 4.70 5.12	1885 1926 1967	4.98 5.41 5.86	1999 2039 2079	5.66 6.12 6.60	2104 2143 2182	6.32 6.81 7.33	2203 2241 2279	6.98 7.50 8.06	2295 2333 2370	7.64 8.19 8.77	2384 2420 2457	8.30 8.88 9.48	2469 2504 2540	8.97 9.57 10.20
3416 3548 3679	5200 5400 5600	1596 1645 1694	3.97 4.38 4.82	1752 1797 1843	4.78 5.22 5.69	1887 1931 1974	5.57 6.05 6.55	2008 2050 2093	6.35 6.86 7.39	2119 2160 2201	7.11 7.65 8.22	2222 2262 2302	7.88 8.45 9.05	2318 2357 2396	8.63 9.24 9.87	2409 2447 2486	9.38 10.02 10.69	2495 2533 2571	10.12 10.79 11.49	2577 2614 2652	10.87 11.56 12.29
3811	5800	1743	5.28	1889	6.20	2019	7.09	2135	7.96	2242	8.83	2342	9.68	2436	10.54	2525	11.38	2610	12.22	2690	13.06

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1708	2600	2334	5.29
1840 1971 2102	2800 3000 3200	2346 2361 2378	5.61 5.96 6.33	2442 2456 2472	6.17 6.54 6.93	2547 2562	7.13 7.53	2636 2649	7.73 8.15	2734	8.78	2818	9.43
2234 2365 2497	3400 3600 3800	2397 2417 2438	6.72 7.13 7.56	2489 2508 2528	7.33 7.76 8.21	2579 2597 2616	7.96 8.41 8.88	2665 2682 2701	8.60 9.07 9.56	2749 2766 2783	9.25 9.73 10.25	2831 2846 2863	9.91 10.41 10.94	2911 2925 2941	10.58 11.10 11.65	2989 3002 3018	11.26 11.80 12.37	3077 3092	12.51 13.10	3151 3165	13.24 13.84
2628 2759 2891	4000 4200 4400	2462 2491 2520	8.02 8.54 9.08	2550 2575 2604	8.69 9.20 9.77	2636 2658 2683	9.37 9.89 10.46	2720 2741 2764	10.07 10.61 11.18	2802 2822 2843	10.78 11.34 11.92	2881 2900 2921	11.50 12.08 12.68	2959 2977 2997	12.23 12.83 13.45	3034 3052 3071	12.97 13.59 14.23	3108 3125 3144	13.71 14.35 15.02	3180 3197 3215	14.47 15.13 15.82
3022 3154 3285	4600 4800 5000	2552 2585 2620	9.65 10.27 10.92	2633 2664 2698	10.35 10.99 11.66	2713 2742 2774	11.08 11.71 12.40	2789 2818 2848	11.80 12.46 13.16	2866 2893 2922	12.54 13.22 13.93	2942 2966 2994	13.31 13.99 14.72	3017 3040 3064	14.10 14.79 15.52	3091 3112 3135	14.90 15.60 16.34	3163 3183 3205	15.71 16.43 17.18	3233 3253 3274	16.53 17.27 18.03
3416 3548 3679	5200 5400 5600	2656 2693 2730	11.61 12.34 13.09	2732 2768 2805	12.36 13.11 13.89	2807 2842 2878	13.13 13.89 14.70	2880 2914 2948	13.90 14.69 15.51	2952 2984 3018	14.69 15.49 16.33	3023 3054 3086	15.49 16.31 17.16	3093 3122 3153	16.31 17.14 18.01	3161 3191 3219	17.13 18.00 18.87	3229 3255 3284	17.98 18.83 19.74	3296 3321 3349	18.84 19.70 20.62
3811 3942 4073	5800 6000 6200	2768 2806 2844	13.89 14.71 15.57	2842 2880 2918	14.71 15.57 16.46	2914 2951 2989	15.54 16.42 17.34	2984 3021 3058	16.38 17.28 18.23	3052 3088 3125	17.22 18.14 19.11	3120 3154 3190	18.07 19.02 20.01	3185 3219 3254	18.93 19.89 20.90	3250 3283 3317	19.80 20.78 21.81	3314 3346 3379	20.68 21.68 22.73	3378 3408 3440	21.58 22.59 23.64
4205 4336	6400 6600	2883 2921	16.46 17.39	2956 2994	17.38 18.34	3027 3065	18.30 19.29	3095 3133	19.21 20.23	3162 3199	20.12 21.17	3226 3264	21.04 22.11	3290 3326	21.96 23.06	3352 3388	22.89 24.01	3413 3448	23.82 24.96	3473 3508	24.77 25.93

OUTLET WHEEL DIAMETER — 225/8" INLET

0.918 SQ. FT. INSIDE AREA 0.92 SQ. FT. INSIDE AREA

M-13

13" x 101/2" OUTSIDE DIAMETER TIP SPEED (FPM) = 5.92 X RPM 131/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
918 1102 1285	1000 1200 1400	610 628 653	0.25 0.31 0.37	847 861	0.61 0.70	1033	1.08
1469 1652 1836	1600 1800 2000	683 714 747	0.46 0.56 0.67	878 900 926	0.81 0.93 1.08	1046 1061 1079	1.21 1.36 1.52	1192 1204 1219	1.65 1.82 2.01	1333 1346	2.31 2.53	1462	3.07
2020 2203 2387	2200 2400 2600	781 815 850	0.80 0.94 1.11	956 987 1019	1.24 1.43 1.64	1102 1127 1156	1.71 1.92 2.16	1236 1255 1279	2.21 2.44 2.70	1360 1376 1395	2.76 3.01 3.29	1475 1489 1505	3.33 3.62 3.92	1581 1594 1609	3.93 4.24 4.57	1693 1707	4.88 5.24	1788 1800	5.56 5.93	1888	6.65
2570 2754 2938	2800 3000 3200	885 922 958	1.29 1.49 1.72	1052 1085 1119	1.872.112.39	1187 1218 1251	2.43 2.72 3.03	1306 1335 1365	3.003.323.67	1417 1442 1469	3.603.944.32	1523 1544 1568	4.24 4.60 5.00	1625 1643 1663	4.92 5.30 5.71	1722 1738 1756	5.62 6.03 6.46	1813 1829 1845	6.34 6.78 7.23	1901 1915 1930	7.08 7.54 8.03
3121 3305 3488	3400 3600 3800	996 1034 1072	1.97 2.25 2.55	1153 1188 1223	2.68 3.00 3.35	1283 1316 1350	3.38 3.74 4.13	1397 1429 1461	4.06 4.47 4.91	1499 1530 1561	4.74 5.18 5.66	1595 1623 1653	5.44 5.91 6.43	1687 1713 1741	6.17 6.66 7.20	1775 1800 1825	6.92 7.45 8.00	1863 1883 1907	7.72 8.24 8.83	1947 1965 1985	8.54 9.08 9.67
3672 3856 4039	4000 4200 4400	1111 1150 1189	2.88 3.24 3.63	1259 1296 1332	3.734.144.58	1384 1419 1453	4.56 5.01 5.49	1494 1527 1561	5.375.876.40	1593 1626 1658	6.186.727.29	1684 1716 1748	6.97 7.56 8.18	1770 1801 1832	7.78 8.40 9.05	1852 1881 1911	8.60 9.25 9.94	1931 1958 1987	9.44 10.11 10.83	2009 2034 2060	10.32 11.00 11.74
4223 4406 4590	4600 4800 5000	1229 1269 1310	4.06 4.52 5.01	1369 1407 1445	5.055.556.10	1489 1525 1561	6.01 6.56 7.15	1595 1629 1664	6.967.568.19	1692 1725 1759	7.908.549.22	1781 1813 1846	8.83 9.52 10.24	1864 1896 1929	9.75 10.48 11.25	1942 1974 2006	10.67 11.44 12.25	2017 2048 2079	11.59 12.40 13.25	2089 2119 2149	12.53 13.36 14.25
4774 4957 5141	5200 5400 5600	1351 1392 1433	5.54 6.12 6.73	1483 1521 1560	6.687.29 7.95	1597 1634 1671	7.78 8.44 9.15	1699 1735 1771	8.869.57 10.33	1793 1827 1862	9.9410.69 11.49	1880 1914 1948	11.00 11.80 12.64	1961 1994 2028	12.06 12.90 13.79	2038 2071 2103	13.10 13.99 14.93	2111 2143 2175	14.14 15.08 16.05	2180 2212 2244	15.18 16.15 17.17
5324	5800	1475	7.38	1599	8.65	1708	9.90	1807	11.12	1897	12.33	1982	13.52	2062	14.71	2137	15.90	2208	17.07	2276	18.24

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
2387	2600	1975	7.39
2570 2754 2938	2800 3000 3200	1985 1998 2013	7.84 8.33 8.84	2066 2078 2092	8.62 9.13 9.67	2155 2168	9.95 10.52	2230 2242	10.80 11.38	2314	12.26	2384	13.17
3121 3305 3488	3400 3600 3800	2028 2045 2063	9.38 9.95 10.56	2106 2122 2139	10.2410.84 11.47	2182 2197 2213	11.12 11.74 12.40	2255 2270 2285	12.0112.66 13.35	2326 2340 2355	12.9113.60 14.31	2395 2408 2423	13.83 14.54 15.29	2463 2475 2489	14.77 15.51 16.28	2529 2540 2553	15.73 16.48 17.28	2604 2616	17.48 18.30	2667 2678	18.49 19.33
3672 3856 4039	4000 4200 4400	2083 2108 2132	11.21 11.93 12.68	2158 2178 2203	12.13 12.8513.64	2231 2249 2271	13.09 13.82 14.61	2302 2319 2338	14.06 14.8215.61	2371 2388 2406	15.06 15.8316.65	2438 2154 2471	16.06 16.87 17.71	2504 2519 2536	17.08 17.91 18.78	2567 2583 2599	18.11 18.97 19.87	2630 2645 2660	19.1620.0520.98	2691 2705 2720	20.21 21.13 22.09
4223 4406 4590	4600 4800 5000	2159 2187 2217	13.48 14.34 15.26	2228 2254 2283	14.4615.34 16.28	2296 2320 2347	15.48 16.36 17.32	2360 2385 2410	16.4717.40 18.38	2425 2448 2472	17.5218.46 19.46	2490 2510 2533	18.60 19.54 20.56	2553 2572 2593	19.69 20.65 21.67	2615 2633 2653	20.81 21.79 22.82	2676 2694 2712	21.94 22.94 24.00	2736 2753 2770	23.08 24.11 25.19
4774 4957 5141	5200 5400 5600	2247 2278 2310	16.22 17.23 18.29	2312 2342 2373	17.27 18.31 19.41	2375 2405 2435	18.34 19.40 20.53	2437 2465 2495	19.42 20.51 21.66	2498 2525 2553	20.52 21.63 22.81	2558 2584 2611	21.64 22.77 23.97	2617 2642 2668	22.79 23.93 25.15	2674 2700 2724	23.93 25.14 26.35	2732 2755 2779	25.11 26.30 27.57	2789 2810 2834	26.32 27.51 28.80
5324 5508 5692	5800 6000 6200	2342 2374 2406	19.39 20.50 21.74	2405 2437 2469	20.55 21.74 22.98	2466 2497 2529	21.71 22.94 24.22	2525 2556 2587	22.87 24.14 25.46	2583 2613 2644	24.05 25.34 26.70	2640 2669 2699	25.24 26.56 27.94	2695 2724 2753	26.44 27.79 29.20	2750 2778 2807	27.66 29.03 30.46	2804 2831 2859	28.89 30.28 31.74	2858 2884 2911	30.14 31.56 33.04
5875 6059	6400 6600	2439 2472	22.99 24.29	2501 2534	24.28 25.61	2561 2593	25.55 26.94	2619 2651	26.83 28.26	2675 2707	28.11 29.57	2730 2761	29.39 30.89	2784 2815	30.67 32.21	2836 2867	31.97 33.53	2888 2918	33.27 34.87	2939 2968	34.59 36.21

OUTLET WHEEL DIAMETER — 261/8" INLET

1.222 SQ. FT. INSIDE AREA 1.23 SQ. FT. INSIDE AREA

M-15

15" x 121/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 6.84 X RPM 151/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1222 1466 1711	1000 1200 1400	528 544 566	0.33 0.41 0.50	734 746	0.81 0.94	895	1.43
1955 2200 2444	1600 1800 2000	592 619 647	0.61 0.74 0.89	761 780 803	1.07 1.24 1.43	906 920 935	1.61 1.80 2.02	1033 1044 1056	2.19 2.42 2.67	1156 1166	3.08 3.36	1267	4.09
2688 2933 3177	2200 2400 2600	676 706 736	1.06 1.26 1.47	828 855 883	1.65 1.90 2.18	955 977 1002	2.27 2.55 2.87	1071 1088 1108	2.95 3.25 3.60	1179 1193 1209	3.68 4.01 4.38	1278 1291 1305	4.44 4.81 5.21	1371 1382 1395	5.23 5.64 6.08	1468 1479	6.50 6.98	1550 1560	7.40 7.90	1637	8.85
3422 3666 3910	2800 3000 3200	767 799 831	1.72 1.99 2.29	911 940 970	2.482.823.18	1028 1056 1084	3.23 3.62 4.04	1131 1157 1183	3.994.424.89	1228 1250 1274	4.795.255.76	1320 1338 1359	5.65 6.12 6.66	1408 1424 1441	6.55 7.05 7.60	1492 1506 1524	7.49 8.02 8.60	1572 1585 1599	8.44 9.02 9.63	1647 1660 1673	9.43 10.04 10.69
4155 4399 4644	3400 3600 3800	863 896 929	2.62 2.99 3.39	999 1030 1060	3.574.004.46	1112 1141 1170	4.49 1.98 5.50	1210 1238 1266	5.405.956.53	1299 1326 1353	6.316.907.54	1382 1407 1433	7.24 7.87 8.55	1462 1484 1509	8.21 8.87 9.59	1539 1560 1581	9.22 9.92 10.65	1614 1632 1652	10.28 10.97 11.75	1687 1703 1720	11.37 12.10 12.87
4888 5132 5377	4000 4200 4400	963 996 1031	3.84 4.32 4.84	1091 1123 1155	4.975.516.09	1200 1229 1260	6.07 6.67 7.31	1295 1324 1353	7.157.828.52	1381 1409 1437	8.228.959.71	1460 1487 1515	9.29 10.06 10.89	1534 1561 1588	10.36 11.18 12.05	1605 1630 1656	11.45 12.31 13.23	1674 1697 1722	12.57 13.47 14.42	1741 1762 1786	13.74 14.65 15.63
5621 5866 6110	4600 4800 5000	1065 1100 1135	5.40 6.01 6.67	1187 1219 1252	6.72 7.408.12	1290 1321 1353	8.00 8.74 9.52	1382 1412 1442	9.27 10.0610.90	1466 1495 1524	10.52 11.3712.28	1543 1572 1600	11.76 12.67 13.64	1615 1643 1671	12.98 13.95 14.98	1683 1711 1738	14.20 15.23 16.31	1748 1775 1802	15.43 16.50 17.64	1810 1836 1863	16.68 17.79 18.97
6354 6599 6843	5200 5400 5600	1171 1206 1242	7.38 8.14 8.96	1285 1318 1352	8.89 9.71 10.59	1384 1416 1448	10.36 11.24 12.18	1493 1504 1535	11.80 12.75 13.75	1554 1584 1614	13.23 14.23 15.29	1629 1659 1688	14.65 15.71 16.83	1700 1728 1757	16.05 17.18 18.36	1766 1795 1823	17.44 18.63 19.87	1829 1857 1885	18.83 20.07 21.37	1890 1917 1945	20.21 21.50 22.86
7088	5800	1278	9.83	1385	11.52	1480	13.18	1566	14.81	1644	16.41	1718	18.00	1787	19.59	1852	21.17	1914	22.73	1973	24.28

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
3177	2600	1711	9.84
3422 3666 3910	2800 3000 3200	1720 1732 1744	10.44 11.09 11.77	1791 1801 1813	11.48 12.16 12.88	1868 1879	13.25 14.01	1933 1943	14.37 15.15	2005	16.33	2066	17.53
4155 4399 4644	3400 3600 3800	1758 1772 1788	12.49 13.25 14.05	1826 1839 1854	13.6414.43 15.27	1891 1904 1918	14.80 15.64 16.51	1954 1967 1980	15.9916.86 17.77	2016 2028 2041	17.1918.10 19.05	2076 2087 2100	18.42 19.36 20.35	2134 2145 2157	19.67 20.64 21.67	2192 2201 2213	20.95 21.95 23.01	2257 2267	23.27 24.36	2311 2321	24.62 25.73
4888 5132 5377	4000 4200 4400	1806 1827 1848	14.92 15.88 16.88	1870 1888 1909	16.15 17.1118.17	1933 1949 1968	17.43 18.40 19.45	1995 2010 2027	18.72 19.7320.79	2055 2069 2085	20.04 21.0822.17	2113 2127 2142	21.38 22.46 23.58	2170 2183 2198	22.74 23.85 25.01	2225 2238 2252	24.11 25.26 26.46	2279 2292 2305	25.5026.6927.93	2332 2344 2357	26.91 28.14 29.41
5621 5866 6110	4600 4800 5000	1871 1896 1921	17.95 19.10 20.31	1931 1954 1978	19.2520.43 21.67	1990 2011 2034	20.61 21.78 23.06	2046 2067 2089	21.9323.17 24.47	2102 2121 2143	23.3224.58 25.91	2158 2175 2196	24.76 26.01 27.38	2213 2229 2247	26.22 27.49 28.85	2267 2282 2299	27.71 29.01 30.38	2319 2334 2350	29.21 30.55 31.95	2371 2386 2401	30.73 32.11 33.54
6354 6599 6843	5200 5400 5600	1948 1975 2002	21.59 22.94 24.35	2004 2030 2057	22.99 24.38 25.84	2059 2084 2110	24.41 25.83 27.33	2112 2137 2162	25.85 27.31 28.84	2165 2188 2213	27.32 28.80 30.37	2217 2239 2263	28.81 30.32 31.92	2268 2289 2312	30.34 31.86 33.49	2318 2340 2361	31.85 33.47 35.08	2368 2387 2408	33.43 35.02 36.70	2417 2435 2456	35.04 36.63 38.35
7088 7332 7576	5800 6000 6200	2030 2058 2086	25.82 27.35 28.95	2084 2112 2140	27.36 28.95 30.60	2137 2164 2192	28.90 30.54 32.25	2188 2215 2242	30.50 32.14 33.89	2238 2265 2291	32.02 33.74 35.54	2288 2313 2339	33.60 35.36 37.20	2336 2361 2386	35.20 36.99 38.87	2384 2408 2432	36.82 38.65 40.56	2431 2454 2478	38.46 40.32 42.26	2477 2499 2523	40.13 42.01 43.99
7821 8065	6400 6600	2114 2142	30.61 32.33	2168 2196	32.32 34.10	2220 2248	34.02 35.86	2270 2298	35.72 37.62	2319 2346	37.42 39.37	2366 2393	39.12 41.12	2413 2439	40.83 42.88	2458 2484	42.56 44.64	2503 2529	44.30 46.42	2547 2572	46.05 48.21

OUTLET WHEEL DIAMETER — 29 5/8" INLET

1.57 SQ. FT. INSIDE AREA 1.58 SQ. FT. INSIDE AREA

M-17

17" x 13 3/4" OUTSIDE DIAMETER TIP SPEED (FPM) = 7.76 X RPM 171/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1570 1884 2198	1000 1200 1400	466 480 499	0.43 0.52 0.64	647 658	1.04 1.20	790	1.84
2512 2826 3140	1600 1800 2000	522 546 571	0.79 0.95 1.15	671 688 708	1.38 1.59 1.84	800 811 825	2.07 2.32 2.59	912 921 932	2.81 3.11 3.43	1020 1029	3.95 4.32	1118	5.25
3454 3768 4082	2200 2400 2600	597 623 650	1.37 1.62 1.89	731 755 779	2.12 2.45 2.80	842 862 884	2.92 3.28 3.69	945 960 978	3.79 4.18 4.63	1040 1052 1066	4.72 5.15 5.63	1128 1139 1151	5.70 6.18 6.70	1209 1219 1230	6.72 7.25 7.81	1295 1305	8.35 8.96	1367 1376	9.50 10.15	1444	11.37
4396 4710 5024	2800 3000 3200	677 705 733	2.21 2.56 2.94	804 830 856	3.19 3.62 4.08	907 932 956	4.15 4.65 5.19	998 1021 1044	5.12 5.68 6.28	1083 1103 1124	6.16 6.75 7.39	1165 1181 1199	7.25 7.87 8.55	1243 1256 1272	8.41 9.06 9.76	1317 1329 1342	9.61 10.30 11.04	1387 1398 1411	10.8511.59 12.37	1454 1464 1476	12.11 12.90 13.73
5338 5652 5966	3400 3600 3800	761 790 820	3.37 3.84 4.36	882 909 936	4.58 5.135.73	981 1007 1032	5.77 6.40 7.07	1068 1093 1117	6.94 7.648.39	1146 1170 1194	8.10 8.879.69	1220 1241 1264	9.30 10.11 10.99	1290 1310 1331	10.55 11.39 12.31	1358 1376 1395	11.84 12.74 13.68	1424 1440 1458	13.2014.10 15.10	1489 1502 1518	14.61 15.54 16.54
6280 6594 6908	4000 4200 4400	849 879 909	4.93 5.54 6.21	963 991 1019	6.38 7.077.83	1059 1085 1111	7.79 8.56 9.39	1142 1168 1194	9.19 10.0410.94	1218 1243 1268	10.56 11.4912.47	1288 1312 1337	11.93 12.93 13.98	1354 1377 1401	13.30 14.36 15.48	1416 1438 1461	14.71 15.81 16.99	1477 1498 1519	16.15 17.30 18.52	1536 1555 1576	17.65 18.82 20.08
7222 7536 7850	4600 4800 5000	940 971 1002	6.94 7.72 8.57	1047 1076 1105	8.63 9.50 10.43	1138 1166 1193	10.28 11.23 12.23	1220 1246 1273	11.90 12.92 14.01	1294 1319 1345	13.51 14.61 15.77	1362 1387 1412	15.10 16.28 17.51	1425 1450 1475	16.67 17.92 19.24	1485 1509 1534	18.24 19.56 20.95	1542 1566 1590	19.82 21.20 22.65	1597 1620 1643	21.42 22.85 24.36
8164 8478 8792	5200 5400 5600	1033 1064 1096	9.48 10.46 11.50	1134 1163 1193	11.42 12.47 13.60	1221 1249 1278	13.30 14.44 15.65	1299 1327 1354	15.16 16.37 17.66	1371 1397 1424	16.99 18.28 19.64	1438 1463 1490	18.81 20.18 21.62	1500 1525 1551	20.62 22.07 23.58	1559 1583 1608	22.41 23.93 25.52	1614 1639 1664	24.18 25.78 27.45	1667 1692 1716	25.95 27.62 29.36
9106	5800	1128	12.62	1222	14.80	1306	16.93	1382	19.02	1451	21.08	1516	23.12	1576	25.16	1634	27.19	1689	29.19	1741	31.18

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
4082	2600	1510	12.64
4396 4710 5024	2800 3000 3200	1518 1528 1539	13.41 14.24 15.12	1580 1589 1599	14.74 15.61 16.54	1648 1658	17.02 17.99	1706 1714	18.46 19.47	1769	20.97	1823	22.52
5338 5652 5966	3400 3600 3800	1551 1564 1578	16.05 17.02 18.05	1611 1623 1636	17.5218.54 19.61	1669 1680 1693	19.01 20.08 21.21	1725 1736 1747	20.5321.65 22.83	1779 1789 1801	22.0823.25 24.47	1832 1842 1853	23.66 24.87 26.14	1883 1893 1903	25.26 26.52 27.83	1934 1942 1953	26.90 28.19 29.55	1991 2001	29.89 31.29	2039 2048	31.62 33.05
6280 6594 6908	4000 4200 4400	1593 1612 1630	19.16 20.39 21.68	1650 1666 1685	20.75 21.9723.33	1706 1720 1736	22.38 23.63 24.98	1760 1774 1788	24.05 25.3426.70	1813 1826 1840	25.74 27.0828.48	1864 1877 1890	27.46 28.84 30.29	1914 1926 1939	29.21 30.63 32.12	1963 1975 1987	30.97 32.45 33.99	2011 2022 2034	32.7634.2835.87	2058 2069 2080	34.57 36.14 37.78
7222 7536 7850	4600 4800 5000	1651 1673 1695	23.06 24.53 26.09	1703 1724 1746	24.7326.24 27.84	1756 1774 1795	26.47 27.98 29.62	1805 1824 1843	28.1729.76 31.43	1855 1872 1891	29.9631.57 33.28	1904 1919 1937	31.80 33.41 35.16	1952 1967 1983	33.68 35.32 37.06	2000 2014 2029	35.59 37.26 39.02	2047 2060 2074	37.52 39.24 41.03	2092 2105 2118	39.47 41.24 43.08
8164 8478 8792	5200 5400 5600	1718 1742 1766	27.73 29.46 31.27	1768 1791 1815	29.53 31.31 33.18	1816 1839 1862	31.35 33.18 35.11	1864 1885 1908	33.20 35.08 37.05	1910 1931 1953	35.09 37.00 39.01	1956 1976 1997	37.00 38.95 41.00	2001 2020 2040	38.97 40.93 43.01	2045 2065 2083	40.91 42.99 45.06	2089 2106 2125	42.93 44.98 47.14	2133 2149 2167	45.00 47.05 49.25
9106 9420 9734	5800 6000 6200	1791 1815 1840	33.16 35.13 37.18	1839 1863 1888	35.14 37.18 39.31	1886 1910 1934	37.12 39.23 41.42	1931 1954 1978	39.11 41.28 43.53	1975 1998 2022	41.12 43.34 46.65	2019 2041 2064	43.15 45.42 47.78	2061 2083 2106	45.21 47.52 49.93	2103 2124 2146	47.29 49.64 52.09	2145 2165 2186	49.40 51.79 54.28	2186 2205 2226	51.55 53.96 56.50
10048 10362	6400 6600	1865 1890	39.32 41.53	1913 1938	41.51 43.80	1958 1983	43.70 46.07	2003 2027	45.88 48.32	2046 2070	48.06 50.57	2088 2112	50.25 52.82	2129 2152	52.45 55.07	2169 2192	54.66 57.34	2208 2231	56.90 59.62	2247 2270	59.15 61.92

OUTLET WHEEL DIAMETER — 33" INLET

1.961 SQ. FT. INSIDE AREA 1.97 SQ. FT. INSIDE AREA

M-19

19" x 15 3/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 8.64 X RPM 191/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1961 2353 2745	1000 1200 1400	417 429 447	0.54 0.65 0.80	579 589	1.30 1.50	707	2.30
3138 3530 3922	1600 1800 2000	467 489 511	0.98 1.19 1.43	601 616 634	1.72 1.99 2.30	716 726 738	2.58 2.89 3.24	816 824 834	3.52 3.88 4.29	912 921	4.94 5.40	1000	6.56
4314 4706 5099	2200 2400 2600	534 557 581	1.71 2.02 2.37	654 675 697	3.65 3.05 3.50	754 771 791	3.64 4.10 4.61	845 859 875	4.73 5.22 5.78	931 942 954	5.90 6.44 7.03	1009 1019 1030	7.12 7.72 8.37	1082 1091 1101	8.40 9.05 9.76	1159 1168	10.43 11.20	1223 1231	11.87 12.68	1292	14.20
5491 5883 6275	2800 3000 3200	606 631 656	2.76 3.19 3.68	720 742 766	3.99 4.52 5.10	812 834 856	5.18 5.81 6.48	893 913 934	6.40 7.09 7.85	969 987 1005	7.69 8.43 9.24	1042 1056 1073	9.06 9.83 10.68	1112 1124 1138	10.51 11.32 12.19	1178 1189 1201	12.01 12.87 13.79	1241 1251 1262	13.5514.47 15.45	1301 1310 1321	15.13 16.11 17.15
6667 7060 7452	3400 3600 3800	681 707 733	4.21 4.80 5.45	789 813 837	5.73 6.41 7.16	878 901 924	7.21 7.99 8.83	956 978 1000	8.66 9.54 10.48	1026 1047 1068	10.12 11.08 12.10	1091 1111 1131	11.62 12.63 13.72	1154 1172 1191	13.17 14.23 15.38	1215 1232 1248	14.79 15.91 17.09	1274 1288 1305	16.49 17.61 18.86	1332 1344 1358	18.25 19.41 20.66
7844 8236 8628	4000 4200 4400	760 787 814	6.15 6.92 7.76	862 886 912	7.97 8.84 9.78	947 971 994	9.73 10.70 11.73	1022 1045 1068	11.48 12.54 13.67	1090 1112 1135	13.19 14.35 15.58	1163 1174 1196	14.90 16.15 17.47	1211 1232 1253	16.62 17.94 19.34	1267 1287 1308	18.37 19.75 21.22	1321 1340 1360	20.18 21.60 23.13	1375 1391 1410	22.05 23.50 25.08
9021 9413 9805	4600 4800 5000	841 869 896	8.67 9.65 10.71	937 962 988	10.78 11.87 13.02	1019 1043 1068	12.84 14.02 15.28	1091 1115 1139	14.87 16.14 17.50	1157 1180 1204	16.88 18.25 19.70	1218 1241 1263	18.86 20.33 21.88	1275 1297 1320	20.83 22.39 24.03	1329 1350 1372	22.78 24.43 26.17	1380 1401 1422	24.76 26.48 18.30	1429 1450 1470	26.76 28.55 30.43
10197 10589 10982	5200 5400 5600	924 952 981	11.84 13.06 14.37	1014 1041 1067	14.26 15.58 16.99	1093 1118 1143	16.62 18.04 19.55	1163 1187 1212	18.93 20.45 22.06	1227 1250 1274	21.22 22.83 24.54	1286 1309 1333	23.50 25.21 27.00	1342 1365 1387	25.76 27.56 29.45	1394 1417 1439	27.99 29.89 31.88	1444 1466 1488	30.20 32.20 34.29	1492 1514 1535	32.42 34.50 36.68
11374	5800	1009	15.76	1094	18.49	1169	21.14	1236	23.76	1298	26.33	1356	28.88	1411	31.43	1462	33.96	1511	36.47	1558	38.95

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
5099	2600	1351	15.79
5491 5883 6275	2800 3000 3200	1358 1367 1377	16.75 17.79 18.89	1414 1422 1431	18.42 19.50 20.66	1475 1483	21.26 22.47	1526 1534	23.06 24.31	1583	26.20	1631	28.13
6667 7060 7452	3400 3600 3800	1388 1399 1412	20.04 21.26 22.55	1441 1452 1464	21.8823.16 24.50	1493 1503 1514	23.75 25.09 26.49	1543 1553 1564	25.6527.05 28.51	1592 1601 1611	27.5829.04 30.57	1639 1648 1658	29.55 31.07 32.65	1685 1693 1703	31.56 33.12 34.77	1730 1738 1747	33.61 65.21 36.91	1782 1790	37.33 39.08	1824 1832	39.50 41.29
7844 8236 8628	4000 4200 4400	1425 1442 1459	23.94 25.47 27.08	1476 1491 1507	25.92 27.4529.15	1526 1539 1554	27.96 29.52 31.20	1575 1587 1600	30.04 31.6533.35	1622 1634 1646	32.16 33.8235.57	1668 1679 1691	34.31 36.03 37.83	1713 1724 1735	36.48 38.27 40.13	1757 1767 1778	38.69 40.53 42.45	1799 1809 1820	40.9242.8244.81	1841 1851 1861	43.18 45.40 47.19
9021 9413 9805	4600 4800 5000	1477 1497 1517	28.80 30.64 32.59	1524 1542 1562	30.8932.78 34.78	1571 1587 1606	33.06 34.95 37.00	1615 1632 1649	35.1937.17 39.26	1659 1675 1692	37.4239.43 41.57	1703 1717 1733	39.72 41.74 43.92	1747 1760 1774	42.07 44.11 46.30	1789 1802 1815	44.45 46.54 48.75	1831 1843 1855	46.87 49.01 51.26	1872 1883 1895	49.31 51.51 53.81
10197 10589 10982	5200 5400 5600	1538 1559 1580	34.64 36.80 39.06	1582 1603 1624	36.89 39.12 41.45	1625 1645 1666	39.17 41.45 43.85	1668 1687 1707	41.48 43.81 46.28	1709 1728 1747	43.83 46.21 48.73	1750 1768 1787	46.22 48.65 51.21	1791 1807 1825	48.67 51.12 53.73	1830 1847 1864	51.11 53.69 56.29	1869 1885 1901	53.63 56.18 58.88	1908 1923 1939	56.21 58.77 61.52
11374 11766 12158	5800 6000 6200	1602 1624 1647	41.43 43.89 46.45	1645 1667 1689	43.90 46.45 49.10	1687 1709 1730	46.37 49.00 51.74	1728 1749 1770	48.86 51.56 54.38	1767 1788 1809	51.37 54.13 57.03	1806 1826 1847	53.90 56.73 59.69	1844 1864 1884	56.47 59.35 62.37	1882 1901 1920	59.07 62.00 65.07	1919 1937 1956	61.71 64.69 67.81	1955 1973 1992	64.39 67.41 70.57
12550 12943	6400 6600	1669 1691	49.11 51.88	1711 1734	51.85 54.72	1752 1774	54.59 57.54	1792 1814	57.31 60.36	1830 1852	60.04 63.17	1868 1889	62.77 65.98	1905 1926	65.52 68.80	1941 1961	68.28 71.63	1976 1996	71.07 74.48	2011 2031	73.89 77.35

OUTLET WHEEL DIAMETER — 361/2" INLET

2.41 SQ. FT. INSIDE AREA 2.40 SQ. FT. INSIDE AREA

M-21

21" x 17" OUTSIDE DIAMETER TIP SPEED (FPM) = 9.56 X RPM 211/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
2410 2892 3374	1000 1200 1400	380 394 409	0.61 0.76 0.93	524 536	1.50 1.72	638	2.66
3856 4338 4820	1600 1800 2000	425 443 463	1.13 1.37 1.66	550 565 580	1.99 2.30 2.66	649 662 677	2.96 3.32 3.75	737 747 760	4.07 4.45 4.91	824 834	5.71 6.19	904	7.58
5302 5784 6266	2200 2400 2600	484 506 528	1.99 2.37 2.80	596 613 631	3.06 3.51 4.03	691 706 722	4.22 4.74 5.32	773 788 803	5.45 6.04 6.70	847 861 875	6.76 7.41 8.13	914 927 941	8.16 8.85 9.62	978 989 1002	9.68 10.37 11.18	1048 1059	12.00 12.82	1105 1114	13.74 14.56	1168	16.39
6748 7230 7712	2800 3000 3200	550 574 597	3.27 3.80 4.39	651 673 694	4.61 5.26 5.96	738 756 775	5.97 6.68 7.46	818 833 850	7.41 8.19 9.04	890 904 920	8.91 9.76 10.69	955 969 984	10.47 11.39 12.38	1015 1030 1044	12.08 13.06 14.13	1072 1086 1100	13.76 14.79 15.92	1126 1139 1153	15.5116.59 17.76	1178 1190 1203	17.35 18.45 19.67
8194 8676 9158	3400 3600 3800	621 645 669	5.04 5.75 6.53	716 738 760	6.73 7.57 8.47	795 816 837	8.33 9.28 10.31	867 885 905	9.96 10.97 12.08	936 952 969	11.68 12.75 13.92	999 1015 1031	13.45 14.60 15.83	1059 1074 1089	15.27 16.49 17.79	1115 1130 1144	17.13 18.42 19.80	1167 1182 1197	19.03 20.39 21.84	1217 1232 1246	20.99 22.41 23.93
9640 10122 10604	4000 4200 4400	694 718 743	7.38 8.31 9.32	783 806 829	9.46 10.51 11.65	859 881 903	11.41 12.58 13.84	925 947 968	13.28 14.58 15.96	988 1007 1027	15.17 16.54 18.00	1048 1065 1084	17.15 18.56 20.09	1105 1121 1138	19.18 20.67 22.25	1160 1175 1191	21.26 22.82 24.47	1212 1227 1242	23.38 25.01 26.74	1261 1276 1291	25.54 27.24 29.04
11086 11568 12050	4600 4800 5000	769 794 820	10.41 11.59 12.87	853 877 901	12.88 14.19 15.59	925 948 971	15.19 16.63 18.16	990 1011 1033	17.42 18.97 20.62	1048 1069 1091	19.58 21.26 23.03	1103 1123 1144	21.73 23.49 25.36	1156 1175 1194	23.94 25.76 27.69	1208 1225 1244	26.23 28.10 30.09	1258 1275 1292	28.56 30.50 32.55	1307 1322 1339	30.94 32.95 35.07
12532 13014 13496	5200 5400 5600	846 872 898	14.23 15.70 17.27	925 949 974	17.08 18.68 20.38	994 1017 1041	19.78 21.51 23.33	1056 1078 1101	22.38 24.22 26.17	1113 1134 1156	24.89 26.85 28.92	1165 1187 1208	27.35 29.44 31.63	1215 1236 1257	29.76 31.95 34.26	1263 1282 1303	32.21 34.47 36.86	1310 1328 1347	34.73 37.04 39.49	1356 1391 1373	37.31 39.67 42.18
13978	5800	924	18.95	999	22.18	1064	25.57	1124	28.23	1179	31.12	1230	33.92	1278	36.69	1324	39.39	1367	42.08	1410	44.83

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
6266	2600	1219	18.34
6748 7230 7712	2800 3000 3200	1228 1239 1252	19.28 20.38 21.63	1277 1287 1298	21.30 22.40 23.66	1333 1343	24.50 25.77	1378 1388	26.70 27.95	1431	30.22	1473	32.58
8194 8676 9158	3400 3600 3800	1265 1279 1294	23.00 24.47 26.05	1311 1325 1339	25.06 26.59 28.22	1356 1369 1383	27.19 28.75 30.43	1399 1412 1425	29.38 30.97 32.70	1441 1453 1466	31.65 33.25 35.01	1482 1493 1506	33.99 35.60 37.38	1523 1533 1545	36.41 38.02 39.81	1563 1572 1583	38.91 40.50 42.30	1610 1620	43.06 44.86	1648 1657	45.71 47.49
9640 10122 10604	4000 4200 4400	1308 1323 1338	27.73 29.51 31.38	1353 1368 1383	29.9631.8033.75	1397 1411 1426	32.23 34.14 36.16	1439 1453 1468	34.5536.5238.60	1480 1494 1508	36.9138.9341.07	1519 1533 1547	39.32 41.39 43.58	1558 1571 1585	41.78 43.89 46.14	1595 1608 1622	44.29 46.44 48.73	1632 1645 1658	46.8649.04 51.37	1668 1680 1693	49.49 51.69 54.06
11086 11568 12050	4600 4800 5000	1353 1368 1384	33.36 35.44 37.63	1398 1413 1428	35.80 37.96 40.22	1441 1456 1471	38.28 40.51 42.85	1482 1497 1512	40.79 43.09 45.50	1522 1537 1552	43.33 45.70 48.19	1561 1576 1591	45.90 48.34 50.90	1599 1614 1628	48.52 51.02 53.64	1636 1650 1665	51.16 53.73 56.42	1672 1686 1701	53.85 56.47 59.22	1707 1721 1735	56.58 59.25 62.06
12532 13014 13496	5200 5400 5600	1400 1417 1434	39.93 42.36 44.93	1444 1460 1477	42.60 45.10 47.73	1486 1502 1518	45.30 47.87 50.57	1527 1543 1558	48.03 50.67 53.44	1567 1582 1598	50.79 53.51 56.35	1605 1621 1636	53.57 56.37 59.29	1643 1658 1673	56.39 59.26 62.25	1680 1694 1709	59.23 62.17 65.24	1715 1730 1745	62.10 65.11 68.25	1750 1764 1779	65.01 68.08 71.29
13978 14460 14942	5800 6000 6200	1452 1471 1491	47.63 50.49 53.50	1494 1512 1530	50.49 53.40 56.47	1535 1552 1569	53.40 56.37 59.49	1574 1591 1608	56.34 59.38 62.56	1613 1629 1646	59.32 62.43 65.68	1651 1667 1683	62.33 65.51 68.83	1688 1704 1720	65.37 68.62 72.01	1724 1740 1755	68.43 71.76 75.23	1760 1775 1790	71.52 74.93 78.46	1794 1809 1824	74.64 78.11 81.73
15424 15906	6400 6600	1511 1531	56.67 60.00	1549 1569	59.69 63.08	1588 1607	62.77 66.22	1626 1644	65.90 69.40	1663 1681	69.08 72.64	1700 1717	72.30 75.92	1736 1752	75.55 79.24	1771 1787	78.83 82.59	1806 1821	82.14 85.97	1840 1855	85.48 89.38

OUTLET WHEEL DIAMETER — 40" INLET

2.89 SQ. FT. INSIDE AREA 2.88 SQ. FT. INSIDE AREA

M-23

23" x 18 5/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 10.47 X RPM 231/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
2890 3468 4046	1000 1200 1400	347 360 373	0.74 0.91 1.11	478 489	1.80 2.06	583	3.19
4624 5202 5780	1600 1800 2000	388 404 422	1.36 1.65 1.99	502 516 529	2.39 2.76 3.19	593 605 618	3.55 3.99 4.49	672 682 693	4.88 5.34 5.90	752 762	6.85 7.42	825	9.09
6358 6936 7514	2200 2400 2600	442 462 482	2.39 2.84 3.36	544 559 576	3.67 4.21 4.83	631 645 659	5.06 5.69 6.39	706 719 733	6.54 7.25 8.03	773 786 799	8.11 8.88 9.75	835 846 859	9.79 10.61 11.54	893 903 915	11.61 12.44 13.41	957 967	14.40 15.38	1009 1017	16.48 17.46	1066	19.66
8092 9670 9248	2800 3000 3200	503 524 545	3.92 4.56 5.26	595 614 634	5.53 6.30 7.15	674 690 707	7.16 8.01 8.95	747 761 776	8.89 9.82 10.84	812 826 840	10.69 11.71 12.82	872 885 899	12.55 13.66 14.85	927 940 953	14.49 15.67 16.95	979 992 1005	16.51 17.75 19.10	1028 1040 1053	18.6119.90 21.31	1075 1087 1099	20.81 22.13 23.59
9826 10404 10982	3400 3600 3800	567 589 611	6.04 6.89 7.83	654 674 694	8.07 9.08 10.17	726 745 764	9.99 11.13 12.37	792 808 826	11.95 13.16 14.49	854 869 885	14.01 15.30 16.69	913 927 941	16.14 17.51 18.99	967 981 995	18.32 19.78 21.34	1018 1031 1045	20.55 22.10 23.75	1066 1079 1093	22.8324.46 26.20	1112 1125 1138	25.18 26.88 28.70
11560 12138 12716	4000 4200 4400	633 656 679	8.86 9.97 11.18	715 736 757	11.34 12.61 13.98	784 804 824	13.69 15.09 16.61	845 864 884	15.93 17.48 19.14	902 919 938	18.20 19.83 21.60	957 973 989	20.57 22.27 24.10	1009 1024 1039	23.01 24.79 26.69	1059 1073 1088	25.51 27.37 29.35	1106 1120 1134	28.05 30.00 32.07	1151 1165 1179	30.63 32.68 34.84
13294 13872 14450	4600 4800 5000	702 725 749	12.49 13.91 15.43	779 801 822	15.44 17.02 18.70	845 865 886	18.22 19.94 21.78	904 923 943	20.90 22.76 24.73	957 976 996	23.49 25.50 27.62	1007 1025 1045	26.06 28.17 30.42	1056 1073 1091	28.72 30.90 33.22	1103 1119 1135	31.46 33.71 36.09	1149 1164 1179	34.26 36.59 39.05	1193 1207 1222	37.12 39.52 42.07
15028 15606 16184	5200 5400 5600	772 796 820	17.08 18.84 20.72	845 867 889	20.49 22.41 24.44	907 929 950	23.73 25.80 27.99	964 984 1005	26.84 29.05 31.39	1016 1036 1056	29.86 32.21 34.69	1064 1084 1103	32.80 35.31 37.94	1109 1128 1148	35.70 38.32 41.10	1153 1171 1189	38.64 41.34 44.21	1196 1213 1230	41.66 44.43 47.37	1238 1254 1270	44.75 47.59 50.60
16762	5800	844	22.73	912	26.61	972	30.31	1026	33.86	1076	37.32	1123	40.69	1167	44.01	1209	47.24	1249	50.48	1288	53.77

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
7514	2600	1113	22.00
8092 9670 9248	2800 3000 3200	1121 1131 1143	23.12 24.45 25.95	1166 1175 1185	25.55 26.87 28.38	1217 1227	29.39 30.91	1258 1267	32.03 33.53	1306	36.25	1345	39.08
9826 10404 10982	3400 3600 3800	1155 1168 1181	27.59 29.36 31.25	1197 1210 1223	30.06 31.89 33.85	1238 1250 1262	32.62 34.49 36.51	1277 1289 1301	35.25 37.15 39.22	1316 1327 1338	37.96 39.89 42.00	1353 1364 1375	40.77 42.70 44.84	1390 1400 1410	43.67 45.60 47.76	1427 1435 1445	46.68 48.58 50.75	1470 1479	51.66 53.81	1505 1513	54.83 56.96
11560 12138 12716	4000 4200 4400	1194 1208 1221	33.26 35.39 37.64	1236 1249 1262	35.9438.1540.49	1275 1289 1302	38.66 40.95 43.37	1314 1327 1340	41.4443.8046.30	1351 1364 1377	44.2746.7049.27	1387 1400 1412	47.16 49.65 52.28	1422 1434 1447	50.11 52.65 55.34	1456 1468 1481	53.13 55.71 58.46	1490 1502 1514	56.21 58.82 61.62	1523 1534 1546	59.37 62.00 64.84
13294 13872 14450	4600 4800 5000	1235 1249 1264	40.01 42.51 45.13	1276 1290 1304	42.9445.5348.25	1315 1329 1343	45.92 48.59 51.40	1353 1367 1381	48.9251.6954.58	1390 1403 1417	51.9754.8257.80	1426 1439 1452	55.06 57.99 61.06	1460 1473 1487	58.20 61.20 64.35	1494 1507 1520	61.37 64.45 67.67	1527 1540 1553	64.60 67.74 71.04	1559 1571 1584	67.87 71.07 74.44
15028 15606 16184	5200 5400 5600	1279 1294 1310	47.90 50.82 53.89	1318 1333 1348	51.1054.1057.25	1357 1371 1386	54.34 57.42 60.66	1394 1408 1423	57.6160.7964.11	1431 1445 1459	60.9264.1967.60	1466 1480 1494	64.26 67.62 71.12	1500 1514 1527	67.64 71.08 74.67	1533 1547 1561	71.05 74.58 78.26	1566 1579 1593	74.50 78.11 81.87	1598 1611 1624	77.98 81.67 85.52
16762 17340 17918	5800 6000 6200	1326 1343 1361	57.14 60.56 64.17	1364 1380 1397	60.5764.0667.73	1401 1417 1433	64.05 67.62 71.36	1438 1453 1468	64.5971.5375.05	1473 1488 1503	71.1674.8978.79	1508 1522 1537	74.77 78.59 82.57	1541 1556 1570	78.42 82.32 86.38	1574 1588 1603	82.09 86.08 90.24	1607 1620 1634	85.80 89.88 94.12	1638 1652 1666	89.53 93.70 98.04
18496 19074	6400 6600	1379 1398	67.97 71.97	1415 1433	71.6075.67	1450 1467	75.30 79.43	1484 1501	79.0583.25	1518 1534	82.8687.13	1552 1567	86.72 91.07	1585 1600	90.63 95.05	1617 1632	94.56 99.07	1649 1663	98.54 103.13	1680 1694	102.54 107.22

OUTLET WHEEL DIAMETER — 451/8" INLET

3.694 SQ. FT. INSIDE AREA 3.69 SQ. FT. INSIDE AREA

M-26

26" x 20 7/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 11.81 X RPM 261/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
3694 4433 5172	1000 1200 1400	307 318 330	0.94 1.16 1.42	423 433	2.30 2.64	516	4.08
5910 6649 7388	1600 1800 2000	343 358 374	1.73 2.10 2.54	444 456 468	3.05 3.53 4.07	524 535 547	4.53 5.09 5.74	595 603 613	6.24 6.82 7.53	665 674	8.76 9.48	730	11.62
8127 8866 9604	2200 2400 2600	391 408 426	3.06 3.64 4.29	481 495 510	4.69 5.38 6.17	558 571 583	6.47 7.27 8.16	625 636 648	8.35 9.26 10.27	684 695 707	10.36 11.35 12.46	738 749 760	12.51 13.56 14.74	790 799 809	14.83 15.90 17.14	846 856	18.40 19.66	892 900	21.07 22.31	943	25.13
10343 11082 11821	2800 3000 3200	445 463 482	5.01 5.83 6.73	526 543 561	7.06 8.06 9.14	596 611 626	9.14 10.23 11.44	661 673 686	11.36 12.55 13.85	718 731 743	13.66 14.97 16.38	771 783 795	16.04 17.46 18.98	820 832 843	18.52 20.02 21.65	866 877 889	21.09 22.68 24.40	910 920 931	23.78 25.43 27.23	951 961 972	26.59 28.28 30.14
12560 13298 14037	3400 3600 3800	501 521 540	7.72 8.81 10.01	578 596 614	10.32 11.60 12.99	642 659 676	12.77 14.23 15.80	700 715 731	15.27 16.82 18.52	756 769 783	17.90 19.55 21.33	807 820 833	20.62 22.38 24.26	855 867 880	23.40 25.28 27.27	900 912 924	26.26 28.24 30.35	943 955 967	29.18 31.26 33.48	983 995 1007	32.17 34.35 36.68
14776 15515 16254	4000 4200 4400	560 580 600	11.32 12.74 14.29	633 651 670	14.49 16.12 17.86	694 711 729	17.49 19.29 21.22	747 765 782	20.36 22.34 24.46	798 813 830	23.26 25.35 27.60	846 860 875	26.28 28.46 30.79	893 906 920	29.40 31.68 34.11	937 949 962	32.59 34.98 37.51	979 991 1003	35.84 38.34 40.99	1018 1031 1043	39.15 41.76 44.52
16992 17731 18470	4600 4800 5000	621 641 662	15.96 17.77 19.72	689 708 728	19.74 21.74 23.89	747 766 784	23.29 25.49 27.83	799 817 835	26.71 29.08 31.61	847 864 881	30.01 32.59 35.30	891 907 924	33.31 36.00 38.87	934 949 965	36.70 39.48 42.45	976 990 1004	40.20 43.07 46.12	1016 1030 1043	43.79 46.75 49.90	1055 1068 1081	47.43 50.51 53.75
19209 19948 20686	5200 5400 5600	683 704 725	21.82 24.07 26.48	747 767 787	26.19 28.63 31.24	803 822 841	30.32 32.97 35.77	858 871 889	34.30 37.12 40.11	899 916 934	38.16 41.16 44.33	941 959 976	41.92 45.13 48.48	981 998 1015	45.62 48.97 52.52	1020 1036 1052	49.38 52.83 56.50	1058 1073 1088	53.24 56.78 60.53	1095 1109 1124	57.19 60.82 64.66
21425	5800	747	29.05	807	34.00	860	38.73	908	43.27	952	47.70	994	52.00	1033	56.24	1069	60.37	1104	64.51	1139	68.72

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
9604	2600	985	28.11
10343 11082 11821	2800 3000 3200	992 1001 1011	29.55 31.24 33.16	1031 1039 1049	32.65 34.33 36.27	1077 1085	37.56 39.50	1113 1121	40.93 42.84	1156	46.32	1190	49.93
12560 13298 14037	3400 3600 3800	1022 1033 1045	35.25 37.51 39.93	1059 1070 1081	38.42 40.75 43.26	1095 1106 1117	41.68 44.07 46.65	1130 1140 1151	45.04 47.78 50.12	1164 1174 1184	48.51 50.97 53.67	1197 1206 1216	52.10 54.57 57.31	1230 1238 1248	55.81 58.27 61.03	1262 1270 1278	59.65 62.08 64.85	1300 1309	66.01 68.77	1331 1338	70.06 72.79
14776 15515 16254	4000 4200 4400	1057 1068 1081	42.51 45.23 48.10	1093 1105 1117	45.93 48.75 51.74	1128 1140 1152	49.41 52.33 55.42	1162 1174 1185	52.96 55.97 59.16	1195 1206 1218	56.58 59.68 62.96	1227 1238 1249	60.27 63.44 66.81	1258 1269 1280	64.04 67.28 70.72	1288 1299 1310	67.89 71.18 74.70	1318 1328 1339	71.83 75.17 78.75	1347 1357 1368	75.86 79.23 82.86
16992 17731 18470	4600 4800 5000	1093 1105 1118	51.13 54.32 57.68	1129 1141 1154	54.88 58.18 61.65	1164 1176 1188	58.67 62.09 65.68	1197 1209 1221	62.52 66.05 69.75	1230 1241 1253	66.42 70.05 73.86	1261 1273 1285	70.36 74.10 78.02	1292 1303 1315	74.37 78.20 82.23	1321 1333 1345	78.43 82.36 86.48	1350 1362 1374	82.55 80.56 90.78	1379 1390 1402	86.73 90.82 95.13
19209 19948 20686	5200 5400 5600	1131 1145 1159	61.21 64.94 68.87	1166 1179 1193	65.30 69.13 73.16	1200 1213 1226	69.44 73.38 77.51	1233 1246 1259	73.62 77.68 81.92	1266 1278 1290	77.85 82.02 86.38	1297 1309 1321	82.12 86.41 90.88	1327 1339 1351	86.44 90.83 95.42	1357 1368 1381	90.79 95.30 100.00	1385 1397 1409	95.20 99.81 104.62	1413 1425 1437	99.65 104.36 109.28
21425 22164 22903	5800 6000 6200	1173 1188 1204	73.01 77.39 82.00	1207 1221 1236	77.40 81.86 86.56	1240 1253 1268	81.85 86.41 91.19	1272 1285 1299	86.37 91.02 95.90	1303 1316 1329	90.94 95.70 100.68	1334 1346 1359	95.55 100.42 105.51	1364 1376 1389	100.21 105.19 110.39	1393 1405 1418	104.90 110.00 115.31	1421 1433 1446	109.64 114.85 120.28	1449 1461 1473	114.41 119.74 125.28
23642 24380	6400 6600	1220 1237	86.86 91.97	1251 1267	91.50 96.70	1282 1298	96.22 101.50	1313 1328	101.02 106.38	1343 1357	105.89 111.34	1373 1387	110.82 116.37	1402 1415	115.81 121.46	1430 1443	120.84 126.60	1458 1471	125.92 131.79	1486 1498	131.03 137.01

OUTLET WHEEL DIAMETER — 501/2" INLET

4.596 SQ. FT. INSIDE AREA 4.59 SQ. FT. INSIDE AREA

M-29

29" x 231/4" OUTSIDE DIAMETER TIP SPEED (FPM) = 13.22 X RPM 291/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
4596 5515 6434	1000 1200 1400	275 285 296	1.17 1.44 1.77	379 388	2.86 3.28	462	5.08
7354 8273 9192	1600 1800 2000	308 321 335	2.15 2.62 3.17	398 409 420	3.79 4.39 5.07	470 480 490	5.64 6.34 7.14	533 541 550	7.77 8.49 9.37	597 604	10.90 11.80	654	14.46
10111 11030 11950	2200 2400 2600	351 366 382	3.80 4.52 5.33	431 444 457	5.83 6.70 7.68	501 512 523	8.05 9.05 10.15	560 571 581	10.39 11.52 12.77	613 623 634	12.89 14.12 15.50	662 671 681	15.56 16.87 18.34	708 716 725	18.45 19.78 21.32	759 767	22.89 24.45	800 807	26.21 27.76	845	31.26
12869 13788 14707	2800 3000 3200	399 415 432	6.24 7.25 8.37	472 487 503	8.79 10.02 11.37	535 547 561	11.38 12.73 14.23	592 604 615	14.13 15.62 17.23	644 655 666	16.99 18.62 20.38	691 702 713	19.96 21.72 23.62	735 746 756	23.04 24.91 26.94	776 786 797	26.24 28.21 30.36	815 825 835	29.58 31.63 33.88	853 862 871	33.09 35.18 37.50
15626 16546 17465	3400 3600 3800	449 467 484	9.60 10.96 12.45	518 534 551	12.84 14.43 16.16	576 591 606	15.89 17.70 19.66	628 641 655	19.00 20.93 23.04	677 689 702	22.27 24.32 26.54	724 735 747	25.65 27.84 30.18	767 778 789	29.12 31.45 33.93	807 818 829	32.66 35.13 37.76	845 856 867	36.30 38.89 41.66	882 892 902	40.03 42.74 45.63
18384 19303 20222	4000 4200 4400	502 520 538	14.08 15.85 17.77	567 584 601	18.03 20.05 22.22	622 638 654	21.76 24.00 26.40	670 685 701	25.33 27.80 30.43	715 729 744	28.94 31.53 34.33	759 771 785	32.70 35.40 38.31	800 812 824	36.58 39.41 42.43	840 851 863	40.55 43.52 46.67	877 888 900	44.59 47.70 50.99	913 924 935	48.70 51.95 55.38
21442 22061 22980	4600 4800 5000	557 575 594	19.86 22.11 24.54	618 635 652	24.55 27.05 29.73	670 686 703	28.97 31.71 34.62	717 732 748	33.23 36.18 39.32	759 774 790	37.34 40.54 43.92	799 813 828	41.44 44.79 48.36	837 851 865	45.66 49.12 52.81	875 887 901	50.02 53.58 57.38	911 923 935	54.47 58.16 62.08	946 958 969	59.01 62.83 66.87
23899 24818 25738	5200 5400 5600	612 631 650	27.15 29.95 32.94	670 687 705	32.58 35.62 38.86	720 737 754	37.72 41.01 44.50	765 781 797	42.67 46.18 49.91	806 821 837	47.47 51.20 55.15	844 859 875	52.15 56.14 60.32	880 895 910	56.75 60.93 65.34	914 929 943	61.43 65.73 70.29	948 962 976	66.23 70.63 75.31	982 994 1008	71.14 75.66 80.44
26657	5800	669	36.14	723	42.30	771	48.19	814	53.84	854	59.34	891	64.69	926	69.97	959	75.11	990	80.25	1021	85.49

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
11950	2600	883	34.97
12869 13788 14707	2800 3000 3200	889 897 906	36.76 38.87 41.25	925 932 940	40.62 42.71 45.12	965 973	46.73 49.14	998 1005	50.92 53.30	1036	57.62	1067	62.12
15626 16546 17465	3400 3600 3800	916 926 937	43.86 46.67 49.68	950 959 970	47.79 50.70 53.82	982 991 1001	51.8554.83 58.04	1013 1022 1032	56.03 59.06 62.36	1043 1052 1062	60.3563.4266.77	1073 1081 1090	64.81 67.89 71.29	1103 1110 1119	69.4372.5075.93	1132 1138 1146	74.21 77.2480.68	1166 1173	82.12 85.55	1193 1200	87.17 90.56
18384 19303 20222	4000 4200 4400	947 958 969	52.88 56.27 59.84	980 991 1001	57.14 60.65 64.36	1012 1022 1033	61.4765.1168.95	1042 1052 1063	65.88 69.64 73.60	1071 1082 1092	70.3974.2478.32	1100 1110 1120	74.98 78.93 83.12	1128 1138 1148	79.67 83.70 87.99	1155 1165 1175	84.46 88.56 92.93	1182 1191 1201	89.36 93.51 97.97	1208 1217 1226	94.38 98.57 103.08
21442 22061 22980	4600 4800 5000	980 991 1002	63.61 67.58 71.75	1012 1023 1034	68.27 72.38 76.70	1043 1054 1065	73.0077.2591.71	1073 1084 1095	77.78 82.17 86.77	1102 1113 1124	82.6387.1591.89	1131 1141 1152	87.54 92.19 97.07	1158 1169 1179	92.5297.29102.30	1185 1195 1206	97.57102.46107.59	1211 1221 1231	102.70 107.69 112.94	1236 1246 1257	107.90 112.99 118.35
23899 24818 25738	5200 5400 5600	1014 1026 1039	76.15 80.79 85.68	1046 1057 1069	81.24 86.00 91.02	1076 1088 1099	86.3991.2996.43	1106 1117 1128	91.59 96.64 101.92	1135 1146 1157	96.85102.04107.46	1163 1173 1185	102.17 107.50 113.06	1190 1201 1211	107.53113.00118.71	1216 1227 1238	112.96118.56124.41	1242 1253 1263	118.43 124.17 130.16	1267 1278 1288	123.97 129.84 135.96
26657 27576 28495	5800 6000 6200	1052 1065 1079	90.84 96.28 102.02	1082 1095 1108	96.29 101.84 107.68	1111 1124 1137	101.83107.50113.45	1140 1152 1164	107.45 113.24 119.31	1168 1180 1192	113.13119.06125.25	1196 1207 1219	118.87 124.93 131.26	1223 1234 1245	124.66130.87137.33	1249 1260 1271	130.51136.85143.46	1274 1285 1296	136.40 142.88 149.63	1299 1310 1321	142.33 148.96 155.86
29414 30334	6400 6600	1094 1190	108.06 114.41	1122 1136	113.83 120.30	1150 1163	119.71126.28	1177 1190	125.68 132.35	1204 1217	131.74138.52	1231 1243	137.87 144.78	1257 1269	144.07151.11	1282 1294	150.34157.50	1308 1319	156.64 163.95	1332 1343	163.02 170.46

OUTLET WHEEL DIAMETER — 571/2" INLET

5.951 SQ. FT. INSIDE AREA 5.94 SQ. FT. INSIDE AREA

M-33

33" x 261/2" OUTSIDE DIAMETER TIP SPEED (FPM) = 15.05 X RPM 33 3/8" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	1 S.P.		2 S.P.		3 S.P.		4 S.P.		5 S.P.		6 S.P.		7 S.P.		8 S.P.		9 S.P.		10 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
5951 7141 8331	1000 1200 1400	242 251 260	1.52 1.87 2.29	333 341	3.70 4.25	406	6.57
9522 10712 11902	1600 1800 2000	270 282 294	2.79 3.39 4.10	350 359 369	4.91 5.69 6.56	413 422 431	7.30 8.21 9.25	469 475 483	10.06 10.99 12.14	524 531	14.11 15.28	575	18.72
13092 14282 15473	2200 2400 2600	308 322 336	4.93 5.86 6.91	379 390 402	7.55 8.67 9.94	440 450 459	10.42 11.72 13.15	492 501 511	13.45 14.92 16.54	539 548 557	16.69 18.29 20.07	582 590 599	20.15 21.84 23.75	622 629 637	23.90 25.61 27.61	667 674	29.63 31.66	703 709	33.94 35.95	743	40.48
16663 17853 19042	2800 3000 3200	350 365 380	8.08 9.38 10.83	415 428 442	11.38 12.98 14.73	470 481 493	14.73 16.48 18.43	520 530 541	18.30 20.22 22.32	566 576 585	22.01 24.11 26.39	608 617 626	25.84 28.12 30.58	646 655 664	29.83 32.26 34.88	682 691 700	33.98 36.53 39.31	717 725 734	38.31 40.96 43.86	750 757 766	42.84 45.55 48.56
20233 21424 22614	3400 3600 3800	395 410 426	12.43 14.19 16.12	455 470 484	16.62 18.69 20.93	506 519 533	20.57 22.92 25.46	552 563 576	24.60 27.10 29.83	595 606 617	28.84 31.49 34.36	636 646 656	33.22 36.05 39.08	674 683 693	37.70 40.72 43.94	709 719 728	42.30 45.49 48.89	743 752 762	47.00 50.36 53.94	775 784 793	51.83 55.34 59.09
23804 24994 26184	4000 4200 4400	441 457 473	18.23 20.52 23.02	498 513 528	23.35 25.96 28.77	547 560 574	28.17 31.07 34.19	589 602 616	32.80 35.99 39.41	628 641 654	37.47 40.83 44.46	667 678 690	42.34 45.84 49.61	703 714 724	47.37 51.03 54.94	738 748 758	52.51 56.35 60.43	771 781 791	57.74 61.76 66.03	802 812 822	63.06 67.27 71.72
27375 28565 29755	4600 4800 5000	489 505 522	25.71 28.63 31.77	543 558 573	31.79 35.03 38.49	589 603 618	37.52 41.06 44.83	630 644 658	43.03 46.85 50.92	667 681 694	48.35 52.49 56.87	702 715 728	53.66 57.99 62.62	736 748 760	59.13 63.60 68.39	769 780 791	64.77 69.39 74.30	801 811 822	70.54 75.32 80.38	831 842 852	76.41 81.36 86.60
30945 32135 33326	5200 5400 5600	538 555 571	35.15 38.78 42.66	589 604 620	42.19 46.13 50.32	632 647 662	48.85 53.10 57.62	672 686 701	55.25 59.80 64.62	708 722 736	61.47 66.30 71.42	742 755 769	67.53 72.69 78.11	773 786 800	73.48 78.90 84.61	803 816 829	79.54 85.11 91.02	833 845 857	85.76 91.46 97.51	863 874 885	92.12 97.97 104.16
34516	5800	548	47.14	634	55.00	675	62.60	713	69.91	748	77.10	783	83.77	814	90.60	842	97.26	870	103.92	897	110.70

VOL. CFM	OUTLET VEL. FPM	11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.		17 S.P.		18 S.P.		19 S.P.		20 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
15473	2600	776	45.29
166631785319042	2800 3000 3200	781 789 797	47.60 50.33 53.41	813 819 826	52.60 55.31 58.43	848 855	60.50 63.63	877 883	65.93 69.02	910	74.62	937	80.44
202332142422614	3400 3600 3800	805 814 823	56.79 60.43 64.33	834 843 852	61.89 65.65 69.69	863 871 880	67.14 71.00 75.15	890 898 907	72.56 76.48 80.74	917 925 933	78.15 82.12 86.46	943 950 958	83.93 87.91 92.32	969 976 983	89.90 93.8798.32	994 1000 1007	96.09 100.01104.47	1025 1031	106.34 110.78	1049 1055	112.87 117.26
23804 24994 26184	4000 4200 4400	832 842 851	68.48 72.86 77.49	861 871 880	73.99 78.54 83.34	889 898 907	79.60 84.31 89.28	916 925 934	85.31 90.17 95.31	942 950 960	91.14 96.13 101.42	967 975 984	97.09 102.20 107.63	991 1000 1009	103.17 108.38 119.93	1015 1023 1032	109.37 114.67 120.34	1039 1047 1055	115.72 121.09 126.86	1062 1069 1078	122.21 127.63 133.48
27375 28565 29755	4600 4800 5000	861 871 881	82.37 87.50 92.91	889 899 909	88.41 93.73 99.32	917 926 936	94.52 100.03 105.80	943 953 962	100.72 106.40 112.36	969 978 988	106.99 112.85118.99	994 1003 1012	113.35 119.38125.69	1018 1027 1036	119.80125.98 132.46	1041 1050 1059	126.64132.67 139.31	1064 1073 1082	132.98 139.45 146.24	1086 1095 1104	139.72 146.31 153.25
30945 32135 33326	5200 5400 5600	891 902 913	98.61 104.61 110.94	919 929 940	105.19 111.36 117.85	946 956 966	111.86 118.21 124.87	972 982 992	118.60 125.14 131.97	997 1007 1017	125.41132.13139.15	1022 1031 1041	132.29139.20146.40	1046 1055 1065	139.24 146.33 153.72	1069 1078 1088	146.27 153.53 161.10	1091 1101 1110	153.36 160.79 168.54	1114 1123 1132	160.53 168.13 176.05
34516 35706 36896	5800 6000 6200	924 936 949	117.62 124.67 132.10	951 962 974	124.68 131.87 139.44	977 987 999	131.86139.20146.91	1002 1012 1023	139.13 146.63 154.49	1027 1037 1047	146.49154.16162.19	1051 1061 1071	153.93161.78169.97	1074 1084 1094	161.43 169.46 177.83	1097 1107 1117	168.99 177.21 185.76	1120 1129 1139	176.62 185.02 193.76	1142 1151 1161	184.31 192.89 201.82
38086 39277	6400 6600	961 974	139.93 148.15	986 999	147.40 155.77	1010 1022	155.00163.51	1035 1046	162.74 171.38	1058 1069	170.58179.37	1082 1092	178.53187.47	1105 1115	186.56 195.66	1127 1137	194.67 203.94	1149 1159	202.85 212.30	1171 1181	211.09 220.72

OUTLET WHEEL DIAMETER — 15 5/8" INLET

0.44 SQ. FT. INSIDE AREA 0.44 SQ. FT. INSIDE AREA

A-09

9" x 71/2" OUTSIDE DIAMETER TIP SPEED (FPM) = 4.09 X RPM 91/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
440 528 616	1000 1200 1400	667 705 752	0.06 0.08 0.10	882 909 941	0.11 0.14 0.17	1077 1103	0.20 0.24	1225 1245	0.27 0.32	1374	0.40
704 792 880	1600 1800 2000	804 859 917	0.13 0.16 0.20	977 1021 1069	0.20 0.240.29	1134 1167 1205	0.29 0.33 0.38	1272 1302 1334	0.37 0.430.49	1396 1424 1454	0.46 0.520.59	1512 1536 1563	0.55 0.62 0.70	1621 1641 1666	0.64 0.72 0.80	1741 1763	0.82 0.91	1945	1.14
968 1056 1144	2200 2400 2600	976 1038 1101	0.24 0.30 0.36	1120 1174 1230	0.340.40 0.47	1249 1297 1347	0.44 0.51 0.59	1370 1411 1456	0.550.62 0.71	1485 1520 1559	0.660.74 0.83	1594 1625 1660	0.78 0.87 0.96	1694 1725 1757	0.90 0.99 1.10	1790 1818 1849	1.01 1.12 1.23	1967 1993 2021	1.25 1.38 1.51	2131 2154 2179	1.50 1.64 1.79
1232 1320 1408	2800 3000 3200	1164 1229 1360	0.43 0.50 0.59	1288 1347 1408	0.55 0.64 0.73	1400 1455 1511	0.67 0.77 0.87	1504 1555 1607	0.80 0.90 1.02	1603 1650 1699	0.93 1.04 1.16	1698 1741 1787	1.07 1.18 1.31	1792 1830 1872	1.21 1.33 1.46	1882 1917 1955	1.35 1.48 1.62	2051 2082 2116	1.65 1.79 1.95	2207 2236 2267	1.94 2.11 2.28
1496 1584 1672	3400 3600 3800	1427 1494 1562	0.69 0.80 0.92	1470 1532 1596	0.84 0.96 1.09	1569 1628 1688	0.99 1.12 1.26	1662 1718 1775	1.14 1.28 1.43	1750 1803 1858	1.29 1.44 1.59	1835 1885 1937	1.45 1.60 1.76	1917 1965 2014	1.61 1.77 1.94	1996 2041 2088	1.77 1.94 2.11	2151 2190 2232	2.11 2.28 2.47	2300 2334 2371	2.46 2.65 2.85
1760 1848 1936	4000 4200 4400	1630 1699 1768	1.05 1.20 1.36	1659 1724 1789	1.23 1.39 1.56	1749 1811 1874	1.41 1.58 1.76	1834 1893 1953	1.56 1.76 1.95	1914 1971 2029	1.76 1.95 2.14	1990 2045 2101	1.94 2.13 2.34	2065 2118 2171	2.12 2.32 2.53	2137 2188 2240	2.30 2.51 2.73	2276 2323 2372	2.68 2.90 3.13	2410 2453 2498	3.06 3.30 3.54
2024 2112 2200	4600 4800 5000	1837 1906 1975	1.53 1.72 1.92	1855 1921 1988	1.74 1.94 2.15	1937 2001 2065	1.95 2.16 2.38	2014 2076 2138	2.15 2.37 2.60	2088 2147 2208	2.35 2.58 2.82	2159 2217 2275	2.56 2.79 3.04	2227 2283 2341	2.76 3.00 3.26	2293 2348 2404	2.96 3.22 3.48	2422 2473 2526	3.38 3.65 3.93	2545 2593 2643	3.81 4.09 4.39
2288 2376 2464	5200 5400 5600	2045 2116 2186	2.14 2.38 2.64	2055 2122 2190	2.38 2.63 2.89	2130 2195 2260	2.62 2.88 3.15	2201 2265 2329	2.85 3.12 3.40	2269 2331 2394	3.08 3.36 3.65	2335 2395 2456	3.31 3.60 3.90	2399 2458 2517	3.54 3.83 4.15	2460 2518 2576	3.77 4.07 4.39	2579 2634 2690	4.23 4.55 4.89	2694 2746 2799	4.70 5.03 5.38
2552	5800	2186	2.91	2258	3.18	2326	3.44	2393	3.70	2457	3.97	2518	4.22	2577	4.48	2635	4.73	2747	5.24	2854	5.76

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1056 1144	2400 2600	2305 2327	1.91 2.07	2449 2467	2.19 2.36	2602	2.66
1232 1320 1408	2800 3000 3200	2352 2380 2409	2.24 2.43 2.62	2490 2516 2544	2.55 2.75 2.96	2622 2645 2671	2.86 3.08 3.30	2748 2769 2793	3.18 3.41 3.65	2871 2888 2910	3.51 3.75 4.00	3004 3024	4.09 4.36	3134	4.73	3242	5.10
1496 1584 1672	3400 3600 3800	2440 2472 2505	2.82 3.02 3.24	2573 2604 2635	3.173.403.64	2699 2728 2759	3.54 3.78 4.04	2819 2847 2876	3.904.164.44	2934 2961 2989	4.274.554.84	3046 3071 3098	4.64 4.94 5.24	3155 3178 3204	5.02 5.33 5.65	3260 3282 3306	5.41 5.73 6.07	3363 3383 3406	5.80 6.13 6.49	3464 3481 3503	6.20 6.54 6.91
1760 1848 1936	4000 4200 4400	2541 2579 2620	3.47 3.71 3.97	2668 2703 2740	3.88 4.14 4.41	2789 2822 2857	4.30 4.57 4.86	2907 2938 2970	4.72 5.01 5.31	3018 3050 3080	5.14 5.45 5.77	3127 3156 3188	5.56 5.89 6.24	3231 3260 3289	5.99 6.34 6.70	3332 3360 3389	6.42 6.78 7.16	3430 3457 3486	6.85 7.23 7.63	3526 3552 3579	7.29 7.69 8.10
2024 2112 2200	4600 4800 5000	2663 2709 2756	4.24 4.54 4.85	2779 2821 2866	4.69 4.99 5.32	2893 2932 2973	5.15 5.47 5.80	3005 3041 3079	5.63 5.95 6.30	3113 3147 3183	6.10 6.45 6.81	3218 3251 3285	6.58 6.95 7.32	3322 3351 3384	7.07 7.45 7.84	3418 3449 3481	7.55 7.95 8.36	3514 3544 3575	8.04 8.45 8.89	3608 3637 3667	8.53 8.96 9.41
2288 2376 2464	5200 5400 5600	2805 2855 2906	5.18 5.53 5.89	2912 2960 3009	5.666.036.41	3016 3062 3109	6.16 6.53 6.93	3119 3161 3206	6.667.057.45	3220 3260 3302	7.187.587.99	3320 3358 3397	7.71 8.12 8.54	3418 3454 3491	8.25 8.67 9.11	3514 3548 3583	8.79 9.22 9.68	3607 3640	9.33 9.78
2552 2640 2728	5800 6000 6200	2958 3011 3065	6.28 6.68 7.11	3059 3110 3162	6.817.237.67	3157 3206 3256	7.34 7.78 8.23	3252 3300 3349	7.888.338.81	3346 3392 3439	8.438.909.38	3438 3482 3257	8.99 9.47 9.96	3530 3571 3614	9.57 10.05 10.56	3620 3659	10.15 10.64
2816 2904	6400 6600	3120 3176	7.56 8.03	3215 3269	8.138.62	3308 3360	8.71 9.21	3398 3449	9.309.81	3487 3536	9.8910.42	3574 3622	10.49 11.03	3659	11.09

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 191/8" INLET

0.657 SQ. FT. INSIDE AREA 0.66 SQ. FT. INSIDE AREA

A-11

11" x 91/16" OUTSIDE DIAMETER TIP SPEED (FPM) = 5.01 X RPM 111/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
657 788 920	1000 1200 1400	546 577 615	0.09 0.12 0.15	721 744 770	0.17 0.21 0.25	881 903	0.31 0.36	1002 1019	0.41 0.48	1124	0.59
1051 1183 1314	1600 1800 2000	658 703 750	0.19 0.24 0.30	800 835 874	0.30 0.36 0.43	927 955 986	0.43 0.49 0.57	1041 1065 1091	0.55 0.64 0.72	1142 1165 1189	0.68 0.78 0.88	1237 1256 1279	0.81 0.92 1.04	1326 1343 1363	0.95 1.07 1.20	1424 1443	1.22 1.36	1591	1.70
1445 1577 1708	2200 2400 2600	799 849 901	0.36 0.44 0.53	916 960 1007	0.510.60 0.70	1022 1061 1102	0.66 0.76 0.88	1121 1154 1191	0.820.93 1.06	1215 1244 1276	0.991.11 1.24	1304 1330 1358	1.16 1.30 1.44	1386 1411 1437	1.34 1.48 1.64	1464 1488 1513	1.51 1.67 1.84	1609 1630 1654	1.87 2.06 2.25	1744 1762 1783	2.24 2.45 2.67
1840 1971 2102	2800 3000 3200	953 1005 1059	0.64 0.75 0.88	1054 1102 1152	0.82 0.95 1.10	1145 1190 1236	1.01 1.15 1.31	1231 1272 1315	1.20 1.35 1.52	1312 1350 1390	1.39 1.56 1.74	1390 1424 1462	1.60 1.77 1.96	1466 1497 1531	1.81 1.99 2.19	1539 1568 1599	2.02 2.21 2.42	1678 1704 1731	2.46 2.68 2.91	1806 1830 1855	2.90 3.15 3.41
2234 2365 2497	3400 3600 3800	1113 1168 1223	1.03 1.19 1.37	1203 1254 1305	1.26 1.43 1.63	1284 1332 1381	1.48 1.67 1.88	1360 1405 1452	1.70 1.91 2.13	1432 1475 1520	1.93 2.15 2.38	1502 1542 1585	2.17 2.39 2.63	1568 1607 1648	2.40 2.64 2.89	1633 1670 1709	2.64 2.89 3.16	1760 1792 1826	3.15 3.41 3.69	1881 1910 1940	3.68 3.96 4.26
2628 2759 2891	4000 4200 4400	1278 1334 1390	1.57 1.79 2.03	1358 1411 1464	1.84 2.07 2.33	1431 1482 1533	2.11 2.35 2.62	1500 1549 1598	2.37 2.63 2.91	1566 1612 1660	2.63 2.91 3.20	1628 1673 1719	2.90 3.18 3.49	1690 1733 1777	3.17 3.46 3.78	1749 1790 1833	3.44 3.75 4.08	1862 1901 1941	4.00 4.33 4.68	1972 2007 2044	4.58 4.92 5.29
3022 3154 3285	4600 4800 5000	1446 1503 1559	2.29 2.57 2.87	1517 1572 1626	2.60 2.90 3.22	1585 1637 1689	2.91 3.22 3.55	1648 1699 1750	3.21 3.54 3.89	1708 1757 1806	3.52 3.86 4.22	1766 1814 1862	3.82 4.17 4.55	1822 1868 1915	4.12 4.49 4.88	1876 1921 1967	4.43 4.80 5.20	1981 2023 2066	5.05 5.45 5.87	2082 2122 2163	5.69 6.11 6.55
3416 3548 3679	5200 2400 5600	1616 1674 1731	3.20 3.56 3.94	1681 1736 1792	3.56 3.93 4.32	1742 1796 1849	3.91 4.30 4.70	1801 1853 1905	4.26 4.66 5.08	1857 1908 1959	4.61 5.02 5.46	1910 1960 2010	4.95 5.37 5.83	1963 2011 2059	5.29 5.73 6.19	2013 2060 2108	5.63 6.08 6.56	2110 2155 2201	6.32 6.79 7.30	2204 2247 2290	7.02 7.52 8.04
3811	5800	1789	4.35	1847	4.75	1903	5.14	1958	5.53	2010	5.92	2060	6.31	2109	6.69	2156	7.07	2247	7.83	2335	8.60

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1577 1708	2400 2600	1886 1904	2.85 3.09	2004 2019	3.27 3.53	2129	3.98
1840 1971 2102	2800 3000 3200	1925 1948 1971	3.35 3.63 3.91	2037 2058 2081	3.81 4.11 4.42	2145 2164 2185	4.28 4.59 4.93	2248 2266 2285	4.75 5.09 5.45	2349 2363 2381	5.25 5.60 5.98	2458 2474	6.12 6.52	2564	7.06	2652	7.62
2234 2365 2497	3400 3600 3800	1996 2022 2050	4.21 4.52 4.84	2105 2131 2156	4.745.095.43	2208 2232 2257	5.28 5.65 6.03	2306 2329 2353	5.836.226.63	2401 2423 2446	6.386.797.23	2492 2513 2535	6.94 7.37 7.83	2591 2600 2621	7.50 7.96 8.44	2667 2685 2705	8.08 8.56 9.06	2751 2768 2787	8.66 9.16 9.69	2834 2848 2866	9.26 9.77 10.32
2628 2759 2891	4000 4200 4400	2079 2110 2143	5.18 5.54 5.93	2183 2211 2242	5.806.186.58	2282 2309 2337	6.42 6.83 7.25	2379 2404 2430	7.057.487.94	2470 2495 2520	7.688.158.62	2558 2582 2608	8.31 8.80 9.32	2644 2667 2691	8.95 9.47 10.00	2726 2749 2773	9.59 10.14 10.70	2807 2829 2852	10.23 10.81 11.40	2885 2906 2929	10.89 11.48 12.10
3022 3154 3285	4600 4800 5000	2179 2216 2255	6.34 6.78 7.24	2274 2308 2345	7.017.467.95	2367 2399 2432	7.70 8.17 8.67	2458 2488 2519	8.408.899.41	2547 2575 2604	9.129.6310.17	2633 2660 2687	9.83 10.38 10.94	2718 2742 2769	10.57 11.12 11.71	2797 2822 2848	11.28 11.88 12.49	2875 2900 2925	12.00 12.63 13.27	2952 2976	12.74 13.39
3416 3548 3679	5200 2400 5600	2295 2336 2377	7.74 8.26 8.80	2382 2422 2462	8.469.009.57	2468 2505 2543	9.19 9.76 10.35	2552 2587 2623	9.9510.5311.13	2635 2667 2702	10.7311.3211.94	2717 2747 2779	11.52 12.13 12.76	2797 2826 2856	12.32 12.95 13.60	2875 2903 2932	13.12 13.78 14.46	2951 2978	13.93 14.62
3811 3942 4073	5800 6000 6200	2420 2463 2508	9.38 9.98 10.62	2503 2544 2587	10.1710.7911.45	2583 2623 2664	10.97 11.62 12.30	2661 2700 2740	11.7812.4513.16	2738 2775 2814	12.6013.2914.02	2813 2849 2886	13.43 14.14 14.88	2888 2922 2957	14.29 15.01 15.77	2962 2994	15.16 15.90
4205 4336	6400 6600	2553 2598	11.29 12.00	2630 2674	12.1512.87	2706 2749	13.01 13.76	2780 2822	13.8914.66	2853 2893	14.7815.57	2924 2963	15.66 16.48	2994	16.57

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 22 5/8" INLET

0.918 SQ. FT. INSIDE AREA 0.92 SQ. FT. INSIDE AREA

A-13

13" x 101/2" OUTSIDE DIAMETER TIP SPEED (FPM) = 5.92 X RPM 131/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
918 1102 1285	1000 1200 1400	462 488 521	0.13 0.16 0.21	610 629 651	0.24 0.29 0.35	745 764	0.43 0.51	848 862	0.57 0.67	951	0.83
1469 1652 1836	1600 1800 2000	556 595 635	0.27 0.33 0.41	677 707 740	0.42 0.50 0.60	785 808 834	0.59 0.69 0.80	880 901 923	0.77 0.89 1.01	967 986 1006	0.95 1.09 1.23	1047 1063 1082	1.14 1.29 1.45	1122 1136 1153	1.33 1.49 1.67	1205 1221	1.71 1.90	1346	2.37
2020 2203 2387	2200 2400 2600	676 719 762	0.51 0.62 0.74	775 813 852	0.71 0.84 0.98	865 898 933	0.92 1.07 1.23	948 977 1008	1.15 1.30 1.48	1028 1053 1080	1.39 1.55 1.74	1103 1125 1149	1.63 1.81 2.01	1173 1194 1216	1.87 2.07 2.29	1239 1259 1280	2.11 2.34 2.57	1362 1380 1399	2.61 2.87 3.15	1476 1491 1508	3.13 3.42 3.73
2570 2754 2938	2800 3000 3200	806 851 896	0.89 1.05 1.23	892 933 975	1.15 1.33 1.53	969 1007 1046	1.40 1.60 1.82	1041 1076 1113	1.67 1.88 2.12	1110 1142 1176	1.94 2.17 2.43	1176 1205 1237	2.23 2.47 2.73	1240 1267 1296	2.52 2.78 3.05	1303 1327 1353	2.83 3.09 3.38	1420 1441 1465	3.44 3.74 4.06	1528 1548 1569	4.06 4.40 4.76
3121 3305 3588	3400 3600 3800	942 988 1035	1.44 1.66 1.92	1018 1061 1105	1.76 2.00 2.27	1086 1127 1169	2.07 2.33 2.62	1150 1189 1229	2.38 2.66 2.97	1212 1248 1286	2.70 3.00 3.32	1271 1305 1341	3.03 3.34 3.68	1327 1360 1394	3.36 3.69 4.04	1382 1413 1446	3.69 4.04 4.41	1489 1516 1545	4.40 4.77 5.16	1592 1616 1641	5.13 5.53 5.95
3672 3856 4039	4000 4200 4400	1081 1129 1176	2.19 2.50 2.83	1149 1194 1239	2.57 2.90 3.25	1211 1254 1297	2.94 3.29 3.66	1269 1310 1352	3.31 3.67 4.07	1325 1364 1405	3.68 4.06 4.47	1378 1416 1455	4.05 4.45 4.87	1430 1466 1503	4.42 4.84 5.28	1480 1515 1551	4.81 5.24 5.69	1576 1608 1642	5.59 6.05 6.54	1669 1698 1729	6.39 6.88 7.39
4223 4406 4590	4600 4800 5000	1224 1271 1319	3.19 3.59 4.01	1284 1330 1376	3.63 4.04 4.49	1341 1385 1430	4.07 4.50 4.96	1394 1437 1480	4.49 4.95 5.43	1445 1487 1529	4.91 5.38 5.89	1494 1535 1575	5.33 5.83 6.35	1542 1581 1620	5.76 6.27 6.81	1588 1625 1664	6.18 6.71 7.27	1677 1712 1748	7.06 7.61 8.20	1762 1795 1830	7.95 8.53 9.15
4774 4957 5141	5200 5400 5600	1368 1416 1465	4.47 4.97 5.51	1422 1469 1516	4.97 5.496.04	1474 1519 1565	5.46 6.00 6.57	1524 1568 1612	5.95 6.517.10	1571 1614 1657	6.43 7.017.62	1616 1658 1700	6.91 7.50 8.14	1661 1701 1743	7.39 8.00 8.65	1703 1743 1784	7.86 8.50 9.17	1786 1824 1862	8.83 9.49 10.19	1865 1901 1938	9.80 10.50 11.23
5324	5800	1513	6.08	1563	6.63	1611	7.18	1657	7.73	1701	8.27	1743	8.81	1784	9.34	1824	9.87	1902	10.94	1976	12.01

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
2203 2387	2400 2600	1596 1611	3.98 4.32	1696 1708	4.56 4.93	1801	5.55
2570 2754 2938	2800 3000 3200	1629 1648 1668	4.68 5.06 5.46	1724 1742 1761	5.32 5.73 6.17	1815 1831 1849	5.97 6.42 6.89	1902 1917 1933	6.64 7.11 7.61	1988 2000 2015	7.33 7.82 8.35	2080 2093	8.54 9.10	2169	9.86	2244	10.64
3121 3305 3588	3400 3600 3800	1689 1711 1735	5.88 6.31 6.76	1781 1803 1824	6.627.107.59	1868 1888 1910	7.38 7.89 8.42	1951 1971 1991	8.148.699.25	2031 2050 2070	8.909.4910.10	2109 2126 2145	9.69 10.30 10.94	2184 2200 2218	10.48 11.12 11.79	2257 2272 2289	11.28 11.96 12.66	2328 2342 2358	12.09 12.80 13.53	2398 2410 2425	12.93 13.65 14.42
3672 3856 4039	4000 4200 4400	1759 1786 1814	7.24 7.74 8.28	1847 1871 1897	8.10 8.639.19	1931 1954 1978	8.97 9.54 10.13	2013 2034 2056	9.85 10.4511.08	2090 2111 2132	10.72 11.3812.04	2165 2185 2207	11.61 12.29 13.02	2237 2257 2277	12.50 13.22 13.97	2307 2326 2346	13.39 14.16 14.94	2375 2393 2413	14.30 15.09 15.92	2441 2459 2478	15.21 16.04 16.90
4223 4406 4590	4600 4800 5000	1844 1875 1908	8.85 9.46 10.12	1924 1953 1984	9.79 10.42 11.10	2003 2030 2058	10.75 11.41 12.10	2080 2105 2131	11.74 12.42 13.14	2155 2179 2204	12.73 13.45 14.20	2228 2250 2274	13.74 14.49 15.27	2300 2320 2343	14.76 15.54 16.36	2367 2388 2410	15.75 16.59 17.45	2433 2454 2475	16.77 17.64 18.54	2498 2518	17.79 18.70
4774 4957 5141	5200 5400 5600	1942 1976 2012	10.81 11.53 12.29	2016 2049 2083	11.8112.5713.37	2088 2120 2152	12.84 13.63 14.45	2159 2189 2220	13.9014.7015.55	2230 2257 2286	14.8915.8116.67	2299 2325 2352	16.09 16.94 17.83	2366 2391 2417	17.20 18.08 19.00	2433 2456 2481	18.33 19.25 20.19	2497 2520	19.46 20.41
5324 5508 5692	5800 6000 6200	2048 2084 2122	13.10 13.94 14.84	2118 2153 2189	14.2015.0816.00	2186 2220 2254	15.32 16.23 17.18	2252 2285 2318	16.4517.3918.37	2316 2348 2381	17.5918.5619.58	2380 2411 2442	18.76 19.75 20.79	2444 2472 2502	19.96 20.96 22.02	2506 2533	21.18 22.20
5875 6059	6400 6600	2160 2198	15.77 16.76	2226 2263	16.9617.98	2290 2326	18.17 19.22	2353 2388	19.4020.47	2414 2448	20.6421.74	2474 2507	21.88 23.02	2533	23.14

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 261/8" INLET

1.222 SQ. FT. INSIDE AREA 1.23 SQ. FT. INSIDE AREA

A-15

15" x 121/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 6.84 X RPM 151/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1222 1466 1711	1000 1200 1400	400 423 451	0.17 0.22 0.28	529 546 564	0.32 0.39 0.47	646 662	0.57 0.68	735 747	0.76 0.89	824	1.10
1955 2200 2444	1600 1800 2000	482 515 550	0.35 0.44 0.55	586 612 641	0.56 0.67 0.80	680 700 723	0.79 0.92 1.06	763 781 800	1.03 1.18 1.35	838 854 872	1.27 1.45 1.64	907 921 938	1.51 1.71 1.93	972 985 1000	1.77 1.99 2.23	1044 1058	2.27 2.53	1167	3.16
2688 2933 3177	2200 2400 2600	586 623 660	0.68 0.82 0.99	672 704 738	0.95 1.12 1.31	749 778 808	1.23 1.42 1.63	822 846 874	1.53 1.73 1.97	891 912 936	1.84 2.07 2.31	956 975 996	2.17 2.41 2.68	1017 1035 1054	2.49 2.76 3.05	1074 1091 1109	2.81 3.11 3.43	1180 1196 1213	3.48 3.82 4.19	1279 1292 1307	4.17 4.55 4.96
3422 3666 3910	2800 3000 3200	699 737 776	1.18 1.40 1.64	773 808 845	1.53 1.77 2.04	840 873 907	1.87 2.13 2.43	903 933 964	2.22 2.51 2.82	962 990 1020	2.59 2.89 3.23	1019 1045 1072	2.97 3.29 3.64	1075 1098 1123	3.36 3.70 4.06	1129 1150 1173	3.76 4.12 4.50	1231 1249 1269	4.58 4.98 5.41	1324 1342 1360	5.40 5.86 6.34
4155 4399 4644	3400 3600 3800	816 856 897	1.91 2.21 2.55	882 919 957	2.34 2.67 3.03	941 977 1013	2.75 3.11 3.49	997 1031 1065	3.17 3.55 3.96	1050 1082 1115	3.59 3.99 4.43	1101 1131 1162	4.03 4.45 4.90	1150 1179 1208	4.47 4.91 5.38	1198 1225 1253	4.92 5.38 5.87	1291 1314 1339	5.86 6.35 6.87	1380 1400 1422	6.84 7.36 7.92
4888 5132 5377	4000 4200 4400	937 978 1019	2.92 3.33 3.77	996 1034 1073	3.42 3.86 4.33	1050 1087 1124	3.92 4.38 4.88	1100 1136 1172	4.41 4.89 5.41	1148 1182 1217	4.90 5.40 5.95	1194 1227 1261	5.39 5.92 6.49	1239 1271 1303	5.89 6.44 7.03	1282 1313 1344	6.40 6.97 7.58	1366 1394 1423	7.44 8.05 8.70	1446 1472 1499	8.51 9.15 9.84
5621 5866 6110	4600 4800 5000	1061 1102 1143	4.25 4.78 5.34	1113 1153 1193	4.83 5.38 5.98	1162 1200 1239	5.41 5.99 6.61	1208 1246 1283	5.98 6.58 7.23	1253 1288 1325	6.54 7.17 7.84	1295 1330 1365	7.10 7.76 8.45	1336 1370 1404	7.67 8.34 9.07	1376 1409 1442	8.23 8.93 9.68	1453 1484 1515	9.40 10.13 10.92	1527 1556 1586	10.58 11.36 12.18
6354 6599 6843	5200 5400 5600	1185 1227 1269	5.96 6.62 7.33	1233 1273 1314	6.62 7.31 8.04	1278 1317 1356	7.28 7.99 8.75	1321 1359 1397	7.93 8.67 9.45	1362 1399 1436	8.56 9.33 10.15	1401 1437 1474	9.20 9.99 10.83	1439 1475 1510	9.83 10.65 11.52	1476 1511 1546	10.47 11.31 12.20	1548 1581 1614	11.75 12.6413.57	1616 1648 1680	13.05 13.98 14.96
7088	5800	1312	8.09	1355	8.83	1396	9.56	1436	10.29	1474	11.02	1511	11.73	1546	12.43	1581	13.14	1648	14.56	1712	15.99

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
2933 3177	2400 2600	1383 1396	5.30 5.75	1470 1480	6.08 6.56	1561	7.39
3422 3666 3910	2800 3000 3200	1411 1428 1446	6.23 6.74 7.27	1494 1509 1526	7.08 7.63 8.22	1573 1587 1602	7.95 8.54 9.17	1649 1661 1676	8.84 9.47 10.13	1723 1733 1746	9.76 10.41 11.12	1802 1814	11.37 12.12	1880	13.13	1945	14.17
4155 4399 4644	3400 3600 3800	1464 1483 1503	7.82 8.40 9.00	1544 1562 1581	8.829.4610.10	1619 1637 1655	9.82 10.50 11.22	1691 1708 1726	10.8311.5612.32	1761 1777 1794	11.8612.6313.44	1828 1843 1859	12.90 13.71 14.57	1893 1907 1922	13.95 14.81 15.70	1956 1969 1984	15.02 15.92 16.85	2018 2030 2043	16.10 17.04 18.02	2078 2089 2102	17.22 18.18 19.19
4888 5132 5377	4000 4200 4400	1525 1547 1572	9.63 10.30 11.02	1601 1622 1644	10.78 11.49 12.24	1674 1693 1714	11.94 12.70 13.49	1744 1763 1782	13.11 13.91 14.76	1811 1830 1848	14.27 15.15 16.03	1876 1894 1913	15.45 16.37 17.33	1939 1956 1973	16.64 17.61 18.60	1999 2016 2033	17.83 18.85 19.89	2058 2074 2091	19.03 20.09 21.19	2116 2131 2148	20.25 21.35 22.50
5621 5866 6110	4600 4800 5000	1598 1625 1654	11.78 12.60 13.47	1668 1693 1719	13.03 13.87 14.77	1736 1759 1784	14.32 15.19 16.11	1803 1824 1847	15.63 16.54 17.49	1868 1888 1910	16.95 17.91 18.91	1931 1950 1971	18.29 19.29 20.34	1993 2011 2030	19.65 20.69 21.78	2051 2069 2088	20.97 22.08 23.23	2109 2127 2145	22.32 23.49 24.68	2165 2182	23.68 24.89
6354 6599 6843	5200 5400 5600	1683 1713 1743	14.39 15.35 16.36	1747 1776 1805	15.7316.7417.80	1810 1837 1865	17.10 18.14 19.24	1871 1897 1924	18.5019.5720.70	1932 1956 1981	19.9521.0422.20	1992 2015 2038	21.42 22.55 23.73	2051 2072 2095	22.91 24.08 25.30	2108 2129 2150	24.41 25.62 26.88	2164 2184	25.91 27.18
7088 7332 7576	5800 6000 6200	1775 1806 1839	17.43 18.56 19.75	1835 1866 1897	18.9120.0721.30	1894 1924 1954	20.40 21.61 22.87	1951 1980 2009	21.9023.1524.46	2008 2035 2063	23.4224.7126.06	2063 2089 2116	24.98 26.29 27.68	2118 2143 2168	26.57 27.91 29.32	2172	28.19
7821 8065	6400 6600	1872 1905	21.00 22.31	1929 1961	22.5923.94	1985 2016	24.19 25.58	2039 2069	25.8327.25	2092 2122	27.4728.95	2144 2173	29.13 30.65

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 29 5/8" INLET

1.57 SQ. FT. INSIDE AREA 1.58 SQ. FT. INSIDE AREA

A-17

17" x 13 3/4" OUTSIDE DIAMETER TIP SPEED (FPM) = 7.76 X RPM 171/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1570 1884 2198	1000 1200 1400	353 373 398	0.22 0.28 0.36	467 481 498	0.41 0.50 0.60	570 584	0.73 0.87	648 659	0.98 1.14	727	1.42
2512 2826 3140	1600 1800 2000	425 455 485	0.45 0.57 0.71	517 540 566	0.72 0.86 1.03	600 618 638	1.02 1.18 1.37	673 689 706	1.32 1.52 1.73	739 754 770	1.63 1.86 2.11	800 813 828	1.95 2.20 2.48	858 869 882	2.27 2.56 2.86	922 933	2.92 3.25	1030	4.05
3454 3768 4082	2200 2400 2600	517 550 583	0.87 1.06 1.27	593 621 651	1.22 1.43 1.68	661 686 713	1.58 1.82 2.10	725 747 771	1.96 2.23 2.53	786 805 826	2.37 2.66 2.97	844 860 879	2.78 3.10 3.44	897 913 930	3.19 3.55 3.92	947 963 979	3.61 4.00 4.40	1041 1055 1070	4.47 4.91 5.38	1128 1140 1154	5.35 5.85 6.37
4396 4710 5024	2800 3000 3200	616 651 685	1.52 1.80 2.11	682 713 745	1.96 2.27 2.62	741 770 800	2.40 2.74 3.12	796 823 851	2.86 3.22 3.63	849 874 900	3.32 3.72 4.15	899 922 946	3.81 4.22 4.68	949 969 991	4.32 4.75 5.22	996 1015 1035	4.83 5.29 5.78	1086 1102 1120	5.88 6.40 6.95	1168 1184 1200	6.94 7.52 8.14
5338 5652 5966	3400 3600 3800	720 755 791	2.46 2.84 3.28	778 811 845	3.00 3.43 3.89	831 862 894	3.53 3.99 4.49	880 909 940	4.07 4.56 5.09	927 955 983	4.61 5.13 5.68	972 998 1025	5.17 5.71 6.29	1015 1040 1066	5.74 6.30 6.91	1057 1081 1106	6.32 6.90 7.54	1139 1159 1181	7.53 8.15 8.82	1217 1236 1255	8.78 9.46 10.17
6280 6594 6908	4000 4200 4400	827 863 899	3.75 4.27 4.84	879 913 947	4.40 4.95 5.56	926 959 992	5.03 5.62 6.26	971 1002 1034	5.66 6.28 6.95	1013 1043 1074	6.29 6.94 7.64	1054 1083 1112	6.92 7.60 8.34	1093 1121 1150	7.56 8.27 9.03	1132 1158 1186	8.22 8.95 9.74	1205 1230 1256	9.55 10.34 11.18	1276 1298 1322	10.94 11.76 12.64
7222 7536 7850	4600 4800 5000	936 972 1009	5.46 6.13 6.86	982 1017 1052	6.21 6.92 7.68	1025 1059 1093	6.95 7.69 8.49	1066 1099 1132	7.68 8.46 9.29	1105 1137 1169	8.40 9.21 10.07	1143 1173 1205	9.12 9.96 10.86	1179 1209 1239	9.85 10.72 11.64	1214 1243 1272	10.58 11.47 12.43	1282 1309 1337	12.07 13.0114.02	1347 1373 1399	13.59 14.59 15.65
8164 8478 8792	5200 5400 5600	1046 1083 1120	7.65 8.50 9.41	1088 1123 1159	8.50 9.38 10.33	1127 1162 1197	9.34 10.26 11.24	1165 1199 1233	10.18 11.13 12.14	1201 1234 1267	11.00 11.99 13.04	1236 1268 1300	11.81 12.83 13.91	1270 1301 1333	12.63 13.68 14.79	1303 1333 1364	13.45 14.53 15.67	1366 1395 1424	15.09 16.23 17.43	1426 1454 1482	16.77 17.95 19.21
9106	5800	1157	10.39	1195	11.34	1232	12.28	1267	13.22	1301	14.15	1333	15.06	1364	15.97	1395	16.88	1454	18.70	1511	20.54

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
3768 4082	2400 2600	1220 1232	6.81 7.39	1297 1306	7.81 8.43	1377	9.50
4396 4710 5024	2800 3000 3200	1245 1260 1275	8.01 8.66 9.34	1318 1332 1347	9.10 9.81 10.55	1388 1400 1414	10.21 10.97 11.77	1455 1466 1478	11.35 12.16 13.02	1520 1529 1541	12.53 13.37 14.28	1590 1601	14.61 15.56	1659	16.86	1716	18.20
5338 5652 5966	3400 3600 3800	1292 1309 1326	10.05 10.79 11.56	1362 1379 1395	11.3312.1512.97	1429 1444 1461	12.62 13.49 14.41	1492 1507 1523	13.9114.8515.82	1553 1568 1583	15.2316.2217.26	1613 1626 1640	16.56 17.61 18.71	1670 1682 1696	17.92 19.02 20.17	1726 1738 1750	19.29 20.45 21.64	1780 1791 1803	20.68 21.89 23.14	1834 1843 1855	22.11 23.35 24.65
6280 6594 6908	4000 4200 4400	1345 1365 1387	12.37 13.23 14.15	1412 1431 1450	13.85 14.76 15.72	1477 1494 1512	15.33 16.31 17.33	1539 1555 1573	16.84 17.87 18.95	1598 1615 1631	18.33 19.46 20.59	1655 1671 1688	19.85 21.02 22.26	1711 1726 1741	21.37 22.61 23.89	1764 1779 1794	22.90 24.21 25.55	1816 1830 1845	24.45 25.81 27.22	1867 1880 1895	26.01 27.42 28.90
7222 7536 7850	4600 4800 5000	1410 1434 1459	15.14 16.19 17.30	1471 1494 1517	16.74 17.82 18.98	1532 1552 1574	18.59 19.51 20.70	1591 1610 1630	20.07 21.24 22.47	1648 1666 1685	21.78 23.00 24.28	1704 1721 1739	23.49 24.78 26.12	1759 1774 1792	25.24 26.57 27.97	1810 1826 1843	26.94 28.36 29.83	1861 1876 1893	28.67 30.17 31.70	1910 1925	30.42 31.97
8164 8478 8792	5200 5400 5600	1485 1511 1538	18.48 19.72 21.02	1542 1567 1593	20.2021.5022.86	1597 1621 1646	21.96 23.30 24.72	1651 1674 1697	23.7725.1426.59	1705 1726 1748	25.6227.0328.51	1758 1778 1798	27.51 28.96 30.48	1810 1828 1848	29.42 30.92 32.49	1860 1878 1897	31.35 32.91 34.53	1910 1927	33.28 34.91
9106 9420 9734	5800 6000 6200	1566 1594 1623	22.39 23.84 25.37	1619 1646 1674	24.2925.7827.36	1671 1697 1724	26.20 27.75 29.38	1722 1747 1773	28.1329.7431.42	1771 1796 1821	30.0831.7433.47	1820 1843 1867	32.08 33.77 35.55	1869 1891 1913	34.13 35.85 37.66	1917	36.21
10048 10362	6400 6600	1652 1681	26.97 28.65	1702 1730	29.0130.74	1751 1779	31.07 32.86	1799 1826	33.1835.01	1846 1872	35.2937.18	1892 1917	37.41 39.36

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 33" INLET

1.961 SQ. FT. INSIDE AREA 1.97 SQ. FT. INSIDE AREA

A-19

19" x 15 3/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 8.64 X RPM 19 1/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
1961 2353 2745	1000 1200 1400	316 334 356	0.27 0.35 0.45	418 431 446	0.51 0.62 0.75	510 523	0.91 1.08	580 590	1.22 1.42	651	1.77
3138 3530 3922	1600 1800 2000	381 407 434	0.57 0.71 0.88	463 483 506	0.90 1.08 1.28	537 553 571	1.27 1.48 1.71	602 617 632	1.65 1.90 2.16	661 674 689	2.03 2.32 2.63	716 727 741	2.43 2.75 3.10	768 777 789	2.84 3.19 3.58	825 835	3.65 4.06	921	5.06
4314 4706 5099	2200 2400 2600	463 492 521	1.09 1.32 1.59	531 556 583	1.52 1.79 2.10	592 614 638	1.97 2.28 2.62	649 668 690	2.45 2.78 3.15	704 720 739	2.96 3.32 3.71	755 770 786	3.48 3.87 4.30	803 817 832	3.99 4.43 4.89	848 861 876	4.51 4.99 5.50	932 944 957	5.58 6.13 6.72	1010 1020 1032	6.68 7.30 7.96
5491 5883 6275	2800 3000 3200	552 582 613	1.90 2.24 2.63	610 638 667	2.45 2.84 3.27	663 689 716	3.00 3.42 3.90	713 737 761	3.57 4.03 4.53	759 782 805	4.15 4.64 5.18	805 825 846	4.76 5.27 5.84	849 867 887	5.39 5.93 6.52	891 908 926	6.04 6.61 7.22	971 986 1002	7.34 7.99 8.68	1045 1059 1074	8.66 9.40 10.17
6667 7060 7452	3400 3600 3800	644 676 708	3.07 3.55 4.09	696 726 756	3.75 4.28 4.86	743 771 800	4.42 4.98 5.61	787 814 841	5.08 5.69 6.35	829 854 880	5.76 6.40 7.10	869 893 918	6.46 7.13 7.86	908 931 954	7.17 7.87 8.64	946 967 989	7.89 8.62 9.42	1019 1037 1057	9.40 10.18 11.02	1089 1106 1123	10.97 11.81 12.71
7844 8236 8628	4000 4200 4400	740 772 805	4.69 5.34 6.05	786 817 847	5.49 6.19 6.94	829 858 888	6.29 7.03 7.82	869 897 925	7.07 7.85 8.69	906 933 961	7.86 8.67 9.55	943 969 995	8.65 9.50 10.41	978 1003 1029	9.45 10.33 11.28	1012 1036 1061	10.27 11.18 12.16	1078 1100 1123	11.93 12.92 13.96	1142 1162 1183	13.66 14.69 15.79
9021 9413 9805	4600 4800 5000	837 870 903	6.82 7.66 8.57	879 910 941	7.76 8.64 9.59	918 948 978	8.68 9.61 10.61	954 983 1013	9.59 10.56 11.60	989 1017 1046	10.49 11.50 12.58	1022 1050 1078	11.39 12.44 13.56	1055 1081 1109	12.30 13.39 14.55	1086 1112 1139	13.21 14.33 15.53	1147 1171 1196	15.07 16.25 17.51	1205 1228 1252	16.97 18.23 19.55
10197 10589 10982	5200 5400 5600	936 969 1002	9.56 10.62 11.76	973 1005 1037	10.62 11.72 12.90	1009 1040 1071	11.67 12.81 14.03	1043 1073 1103	12.72 13.90 15.17	1075 1104 1134	13.74 14.98 16.28	1106 1135 1163	14.76 16.03 17.38	1136 1164 1192	15.78 17.09 18.48	1165 1193 1220	16.80 18.15 19.58	1222 1248 1274	18.85 20.27 21.78	1276 1301 1326	20.94 22.43 24.00
11374	5800	1035	12.98	1070	14.16	1102	15.34	1133	16.51	1164	17.67	1193	18.82	1221	19.95	1248	21.09	1301	23.36	1352	25.65

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
4706 5099	2400 2600	1092 1102	8.50 9.23	1160 1169	9.75 10.53	1232	11.86
5491 5883 6275	2800 3000 3200	1114 1128 1141	10.00 10.82 11.67	1180 1192 1205	11.37 12.25 13.18	1242 1253 1265	12.76 13.71 14.71	1302 1312 1323	14.18 15.20 16.26	1360 1368 1379	15.65 16.71 17.84	1423 1432	18.25 19.44	1484	21.07	1535	22.73
6667 7060 7452	3400 3600 3800	1156 1171 1187	12.55 13.48 14.44	1219 1234 1248	14.1515.1716.21	1278 1292 1307	15.76 16.85 17.99	1335 1349 1362	17.3818.5519.77	1390 1403 1416	19.0220.2721.57	1443 1455 1468	20.69 22.00 23.37	1494 1505 1517	22.38 23.76 25.19	1544 1555 1566	24.10 25.54 27.04	1593 1602 1613	25.84 27.34 28.91	1641 1649 1659	27.62 29.16 30.80
7844 8236 8628	4000 4200 4400	1204 1222 1241	15.46 16.53 17.68	1264 1280 1298	17.30 18.44 19.64	1321 1337 1353	19.15 20.37 21.64	1377 1392 1407	21.04 22.33 23.67	1430 1445 1459	22.90 24.31 25.72	1481 1495 1510	24.80 26.26 27.80	1531 1544 1558	26.69 28.25 29.84	1578 1592 1605	28.60 30.24 31.92	1625 1638 1651	30.54 32.24 34.01	1670 1682 1695	32.49 34.26 36.10
9021 9413 9805	4600 4800 5000	1262 1283 1306	18.91 20.22 21.61	1316 1336 1357	20.91 22.26 23.70	1371 1389 1408	22.97 24.37 25.86	1423 1440 1458	25.07 26.54 28.07	1475 1491 1508	27.20 28.74 30.33	1524 1540 1556	29.34 30.96 32.63	1573 1587 1603	31.53 33.19 34.94	1619 1634 1649	33.65 35.43 37.27	1665 1679 1693	35.82 37.68 39.60	1709 1723	38.00 39.94
10197 10589 10982	5200 5400 5600	1329 1352 1376	23.08 24.63 26.25	1379 1402 1425	25.2426.8628.56	1429 1450 1472	27.43 29.11 30.87	1477 1498 1519	29.6931.4033.22	1525 1544 1564	32.0033.7635.62	1573 1590 1609	34.36 36.18 38.08	1619 1636 1654	36.75 38.63 40.58	1664 1681 1697	39.16 41.11 43.13	1709 1724	41.57 43.61
11374 11766 12158	5800 6000 6200	1401 1426 1452	27.97 29.78 31.69	1449 1473 1498	30.3432.2034.17	1495 1519 1542	32.73 34.67 36.70	1541 1563 1586	35.1337.1539.25	1585 1607 1629	37.5839.6541.81	1629 1649 1671	40.08 42.19 44.41	1672 1692 1712	42.63 44.78 47.04	1715 1733	45.23 47.43
12550 12943	6400 6600	1478 1504	33.69 35.79	1523 1548	36.2438.40	1567 1592	38.81 41.05	1610 1634	41.4443.73	1652 1675	44.0846.44	1693 1715	46.74 49.17	1733	49.42

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 361/2" INLET

2.41 SQ. FT. INSIDE AREA 2.40 SQ. FT. INSIDE AREA

A-21

21" x 17" OUTSIDE DIAMETER TIP SPEED (FPM) = 9.56 X RPM 211/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
2410 2892 3374	1000 1200 1400	281 298 317	0.31 0.40 0.52	373 383 397	0.58 0.71 0.86	456 465	1.04 1.23	527	1.62
3856 4338 4820	1600 1800 2000	338 361 385	0.65 0.82 1.01	412 430 450	1.04 1.25 1.49	477 492 509	1.45 1.69 1.97	536 548 562	1.87 2.15 2.47	591 600 612	2.32 2.63 2.99	641 649 659	2.78 3.13 3.51	695 703	3.65 4.06	746	4.63
5302 5784 6266	2200 2400 2600	411 437 464	1.24 1.51 1.82	471 493 517	1.76 2.07 2.42	527 546 567	2.29 2.64 3.03	578 595 614	2.83 3.22 3.66	626 641 658	3.38 3.82 4.29	671 685 700	3.95 4.42 4.94	714 726 740	4.52 5.04 5.59	755 766 779	5.12 5.66 6.26	833 841 852	6.37 6.97 7.62	912 920	8.34 9.05
6748 7230 7712	2800 3000 3200	492 520 549	2.18 2.58 3.04	541 566 592	2.81 3.25 3.74	588 611 635	3.47 3.95 4.48	634 654 676	4.14 4.66 5.24	676 695 715	4.81 5.38 6.00	717 734 753	5.50 6.11 6.78	756 772 790	6.20 6.85 7.55	793 808 825	6.90 7.59 8.34	864 877 892	8.34 9.11 9.94	930 942 955	9.82 10.67 11.57
8194 9676 9158	3400 3600 3800	577 607 636	3.55 4.13 4.77	619 646 674	4.29 4.90 5.57	659 684 710	5.07 5.71 6.41	698 722 746	5.87 6.55 7.30	736 758 781	6.68 7.40 8.19	773 794 815	7.49 8.27 9.10	808 828 848	8.31 9.13 10.01	842 861 880	9.14 10.00 10.92	907 924 942	10.82 11.76 12.77	969 984 1000	12.53 13.56 14.64
9640 10122 10604	4000 4200 4400	666 695 725	5.47 6.25 7.10	701 729 758	6.31 7.12 8.00	736 763 790	7.19 8.03 8.95	770 795 821	8.11 8.98 9.94	804 828 852	9.05 9.97 10.96	837 859 883	9.99 10.96 11.99	869 890 913	10.95 11.95 13.03	900 921 942	11.91 12.96 14.08	960 979 999	13.84 14.98 16.19	1017 1035 1053	15.79 17.02 18.31
11086 11568 12050	4600 4800 5000	756 786 816	8.04 9.05 10.15	786 815 844	8.96 10.00 11.13	817 845 873	9.95 11.03 12.19	848 874 901	10.97 12.08 13.28	877 903 929	12.02 13.16 14.39	907 931 956	13.10 14.28 15.54	936 959 983	14.18 15.41 16.72	964 987 1010	15.27 16.54 17.89	1020 1040 1062	17.4718.82 20.26	1073 1092 1113	19.68 21.13 22.66
12532 13014 13496	5200 5400 5600			874 903 933	12.35 13.66 15.06	901 930 958	13.44 14.78 16.21	928 956 984	14.56 15.94 17.41	955 982 1009	15.71 17.13 18.63	981 1007 1034	16.89 18.34 19.88	1008 1033 1058	18.10 19.58 21.15	1033 1058 1082	19.33 20.85 22.46	1084 1107 1130	21.78 23.39 25.08	1134 1155 1177	24.26 25.96 27.74
13978	5800			963	16.57	987	17.75	1012	18.98	1036	20.23	1060	21.52	1084	22.82	1107	24.16	1154	26.88	1199	29.62

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
6266	2600	985	10.54
6748 7230 7712	2800 3000 3200	994 1003 1015	11.37 12.27 13.24	1054 1062 1072	12.97 13.92 14.95	1111 1119 1128	14.61 15.63 16.71	1173 1181	17.38 18.53	1233	20.38	1282	22.27
8194 9676 9158	3400 3600 3800	1028 1042 1056	14.27 15.38 16.55	1084 1096 1110	16.0517.2318.48	1138 1149 1162	17.87 19.11 20.43	1190 1200 1211	19.7421.0422.42	1241 1250 1260	21.66 23.0224.45	1290 1298 1307	23.62 25.03 26.53	1337 1345 1353	25.61 27.09 28.65	1390 1398	29.18 30.81	1434 1442	31.30 33.00	1484	35.22
9640 10122 10604	4000 4200 4400	1072 1088 1105	17.78 19.08 20.46	1124 1140 1156	19.79 21.18 22.63	1175 1190 1205	21.83 23.30 24.83	1224 1238 1252	23.89 25.44 27.06	1271 284 1298	25.98 27.60 29.30	1318 1329 1342	28.12 29.80 31.57	1363 1374 1385	30.29 32.03 33.86	1407 1417 1428	32.51 34.30 36.19	1450 1459 1469	34.76 36.61 38.56	1492 1501 1510	37.05 38.96 40.97
11086 11568 12050	4600 4800 5000	1124 1142 1162	21.91 23.45 25.06	1173 1190 1209	24.17 25.78 27.48	1220 1237 1254	26.45 28.14 29.93	1267 1283 1299	28.75 30.53 32.39	1312 1327 1342	31.08 32.94 34.88	1356 1370 1385	33.43 35.37 37.39	1398 1412 1426	35.80 37.82 39.93	1440 1453 1466	38.19 40.29 42.47	1481 1493 1506	40.62 42.78 45.04	1521 1532 1544	43.08 45.30 47.63
12532 13014 13496	5200 5400 5600	1181 1202 1223	26.76 28.55 30.42	1228 1247 1267	29.27 31.1433.11	1273 1291 1310	31.80 33.75 35.80	1316 1334 1352	34.34 36.3838.52	1359 1376 1393	36.91 39.0341.25	1400 1417 1433	39.50 41.70 44.00	1441 1457 1473	42.12 44.40 46.77	1481 1496 1511	44.75 47.11 49.57	1520 1534 1549	47.40 49.85 52.39	1558	50.07
13978 14460 14942	5800 6000 6200	1244 1266 1288	32.37 34.44 36.60	1288 1309 1330	35.1637.3139.55	1330 1350 1371	37.95 40.19 42.53	1371 1391 1411	40.7543.0845.51	1412 1430 1449	43.5645.9848.49	1451 1569 1488	46.40 48.90 51.50	1489 1507 1525	49.25 51.83 54.51	1527 1544 1561	51.12 54.78 57.55	1565	55.02
15424 15906	6400 6600	1311 1334	38.87 41.24	1352 1374	41.9144.36	1392 1413	44.96 47.51	1431 1452	48.0450.67	1469 1489	51.1153.84	1507 1526	54.20 57.02	1543 1562	57.31 60.21

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 40" INLET

2.891 SQ. FT. INSIDE AREA 2.88 SQ. FT. INSIDE AREA

A-23

23" x 18 5/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 10.47 X RPM 231/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
2891 3469 4047	1000 1200 1400	257 272 289	0.37 0.48 0.62	341 350 362	0.69 0.85 1.03	416 425	1.25 1.47	481	1.94
4626 5204 5782	1600 1800 2000	309 329 352	0.79 0.98 1.22	377 393 411	1.25 1.50 1.79	436 449 464	1.73 2.03 2.37	490 500 513	2.24 2.58 2.97	539 548 559	2.78 3.15 3.58	585 593 602	3.34 3.75 4.22	635 642	4.38 4.87	681	5.56
6360 6938 7517	2200 2400 2600	375 399 424	1.49 1.81 2.18	430 450 472	2.11 2.48 2.90	481 499 518	2.75 3.17 3.64	528 543 560	3.39 3.87 4.39	572 586 601	4.06 4.58 5.15	613 625 639	4.73 5.30 5.92	652 663 676	5.43 6.04 6.71	689 699 711	6.14 6.79 7.51	760 768 778	7.64 8.36 9.14	832 840	10.00 10.86
8095 8673 9251	2800 3000 3200	449 475 501	2.61 3.10 3.65	494 517 541	3.37 3.89 4.48	537 558 579	4.16 4.74 5.38	578 597 617	4.96 5.59 6.28	617 635 653	5.78 6.46 7.20	654 671 688	6.60 7.33 8.13	690 705 721	7.43 8.21 9.06	724 738 753	8.28 9.11 10.00	789 801 814	10.00 10.93 11.92	849 860 872	11.79 12.79 13.88
9829 10408 10986	3400 3600 3800	527 554 581	4.26 4.95 5.72	565 590 615	5.14 5.87 6.68	602 625 648	6.08 6.85 7.69	638 659 681	7.04 7.86 8.76	672 692 713	8.01 8.88 9.83	706 725 744	8.99 9.92 10.91	738 756 774	9.97 10.95 12.01	769 786 804	10.96 12.00 13.10	828 844 860	12.98 14.11 15.32	885 899 913	15.04 16.26 17.56
11564 12142 12720	4000 4200 4400	608 635 662	6.56 7.50 8.52	640 666 692	7.57 8.54 9.60	672 697 721	8.62 9.64 10.74	703 726 750	9.73 10.78 11.92	734 756 778	10.85 11.96 13.14	764 785 806	11.99 13.14 14.38	793 813 833	13.13 14.34 15.63	822 841 860	14.28 15.54 16.89	877 894 912	16.60 17.97 19.42	929 945 962	18.95 20.41 21.97
13299 13877 14455	4600 4800 5000	690 718 745	9.64 10.86 12.17	718 744 771	10.75 12.00 13.35	746 772 797	11.94 13.23 14.62	774 798 823	13.16 14.49 15.93	801 824 848	14.42 15.79 17.27	828 850 873	15.71 17.13 18.64	854 876 898	17.01 18.48 20.05	880 901 922	18.32 19.84 21.46	931 950 970	20.96 22.58 24.30	979 997 1016	23.61 25.35 27.18
15033 15611 16190	5200 5400 5600			798 825 852	14.81 16.38 18.07	823 849 875	16.12 17.73 19.45	848 873 898	17.46 19.12 20.89	872 897 921	18.85 20.54 22.35	896 920 944	20.26 22.00 23.84	920 943 966	21.72 23.49 25.37	944 966 988	23.18 25.01 26.94	990 1011 1032	26.13 28.06 30.09	1035 1055 1075	29.10 31.14 33.28
16768	5800			879	19.87	901	21.29	924	22.77	946	24.27	968	25.81	990	27.38	1011	28.98	1053	32.25	1095	35.53

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
7517	2600	899	12.64
8095 8673 9251	2800 3000 3200	907 916 927	13.64 14.71 15.88	962 970 979	15.55 16.70 17.93	1015 1022 1030	17.52 18.75 20.05	1071 1078	20.85 22.23	1125	24.45	1171	26.71
9829 10408 10986	3400 3600 3800	938 951 964	17.12 18.45 19.85	989 1001 1013	19.2520.6722.16	1039 1049 1061	21.44 22.93 24.51	1087 1096 1106	23.6825.2426.90	1133 1141 1150	25.98 27.6129.33	1177 1185 1194	28.33 30.03 31.82	1221 1228 1236	30.72 32.50 34.36	1269 1277	35.01 36.95	1309 1316	37.55 39.58	1355	42.24
11564 12142 12720	4000 4200 4400	979 994 1009	21.33 22.89 24.54	1027 1041 1055	23.74 25.40 27.15	1073 1086 1100	26.18 27.94 29.79	1118 1130 1143	28.66 30.51 32.46	1161 1172 1185	31.17 33.11 35.15	1203 1214 1225	33.73 35.74 37.87	1244 1254 1265	36.33 38.42 40.62	1285 1294 1304	38.99 41.14 43.42	1324 1332 1342	41.70 43.92 46.26	1362 1370 1379	44.44 46.74 49.14
13299 13877 14455	4600 4800 5000	1026 1043 1061	26.29 28.13 30.06	1071 1087 1104	28.99 30.93 32.97	1114 1130 1145	31.72 33.76 35.90	1157 1171 1186	34.49 36.62 38.85	1198 1211 1226	37.29 39.51 41.84	1238 1251 1264	40.10 42.43 44.86	1277 1289 1302	42.94 45.37 47.89	1315 1326 1339	45.81 48.33 50.95	1352 1363 1375	48.72 51.32 54.03	1388 1399 1410	51.68 54.34 57.14
15033 15611 16190	5200 5400 5600	1079 1097 1116	32.10 34.24 36.49	1121 1139 1157	35.11 37.3639.71	1162 1179 1196	38.14 40.49 42.95	1202 1218 1235	41.19 43.6446.20	1241 1256 1272	44.27 46.8249.48	1279 1293 1309	47.38 50.02 52.78	1316 1330 1345	50.52 53.26 56.11	1352 1366 1380	53.68 56.52 59.46	1388 1401 1414	56.86 59.79 62.84	1422	60.06
16768 17346 17924	5800 6000 6200	1136 1156 1176	38.83 41.31 43.90	1176 1195 1214	42.1844.7547.44	1214 1233 1252	45.52 48.21 51.01	1252 1270 1288	48.8851.6754.59	1289 1306 1323	52.2655.1558.17	1325 1341 1358	55.66 58.65 61.77	1360 1376 1392	59.08 62.17 65.39	1395 1410 1426	62.52 65.71 69.03	1428	66.00
18502 19081	6400 6600	1197 1218	46.62 49.47	1234 1255	50.2753.22	1271 1290	53.93 56.99	1307 1325	57.6260.78	1341 1360	61.3164.58	1376 1393	65.02 68.39	1409 1426	68.74 72.22

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 451/8" INLET

3.694 SQ. FT. INSIDE AREA 3.69 SQ. FT. INSIDE AREA

A-26

26" x 207/8" OUTSIDE DIAMETER TIP SPEED (FPM) = 11.81 X RPM 261/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
3694 4433 5172	1000 1200 1400	227 240 256	0.47 0.62 0.79	301 309 320	0.89 1.09 1.32	368 376	1.60 1.88	426	2.48
5910 6649 7388	1600 1800 2000	273 291 311	1.00 1.26 1.55	333 348 364	1.60 1.92 2.28	386 397 411	2.22 2.60 3.03	433 443 454	2.86 3.30 3.79	477 485 494	3.55 4.03 4.58	518 524 532	4.27 4.80 5.39	561 568	5.59 6.23	603	7.10
8127 8866 9604	2200 2400 2600	332 353 375	1.90 2.31 2.79	380 398 417	2.70 3.17 3.70	425 441 458	3.51 4.05 4.65	467 481 496	4.34 4.94 5.61	506 518 532	5.18 5.85 6.58	542 553 566	6.05 6.78 7.57	577 587 598	6.94 7.72 8.57	610 619 629	7.85 8.68 9.59	673 679 688	9.76 10.68 11.69	736 743	12.78 13.87
10343 11082 11821	2800 3000 3200	397 420 443	3.34 3.96 4.66	437 457 478	4.30 4.98 5.73	475 494 513	5.32 6.05 6.87	512 528 546	6.34 7.15 8.03	546 562 578	7.38 8.25 9.20	579 593 608	8.43 9.37 10.39	610 624 638	9.50 10.50 11.58	641 653 666	10.58 11.64 12.78	698 709 720	12.78 13.97 15.24	751 761 771	15.06 16.35 17.74
12560 13298 14037	3400 3600 3800	466 490 514	5.45 6.33 7.31	500 522 544	6.57 7.51 8.54	532 553 573	7.77 8.75 9.83	564 583 602	8.99 10.04 11.19	595 612 630	10.23 11.35 12.56	624 641 658	11.49 12.67 13.94	653 669 685	12.74 14.00 15.34	680 695 711	14.01 15.33 16.74	733 746 761	16.59 18.03 19.57	783 795 808	19.21 20.78 22.44
14776 15515 16254	4000 4200 4400	538 562 586	8.39 9.58 10.89	566 589 612	9.67 10.91 12.27	595 616 638	11.02 12.32 13.72	622 643 663	12.43 13.77 15.23	649 668 688	13.87 15.28 16.79	676 694 713	15.32 16.79 18.38	702 719 737	16.78 18.32 19.97	727 744 761	18.25 19.86 21.58	775 791 807	21.21 22.96 24.81	821 836 851	24.21 26.09 28.07
16992 17731 18470	4600 4800 5000	610 635 659	12.32 13.87 15.56	635 659 682	13.74 15.34 17.06	660 683 705	15.25 16.91 18.69	685 706 728	16.81 18.52 20.35	709 729 750	18.42 20.18 22.06	732 752 772	20.08 21.89 23.83	756 775 794	21.73 23.62 25.62	779 797 816	23.41 25.35 27.42	823 840 858	26.78 28.85 31.06	866 882 899	30.17 32.39 34.73
19209 19948 20686	5200 5400 5600			706 730 753	18.93 20.93 23.09	728 751 774	20.60 22.65 24.85	750 772 795	22.32 24.23 26.69	772 793 815	24.09 26.25 28.56	793 814 835	25.90 28.11 30.70	814 834 855	27.75 30.02 32.42	835 854 874	29.63 31.96 34.42	876 894 913	33.39 35.85 38.45	916 933 951	37.19 39.79 42.52
21425	5800			778	25.39	797	27.20	817	29.10	837	31.01	856	32.99	875	34.99	894	37.04	932	41.21	969	45.40

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
9604	2600	796	16.15
10343 11082 11821	2800 3000 3200	802 810 820	17.43 18.80 20.29	851 858 866	19.88 21.34 22.92	898 904 911	22.39 23.96 25.62	948 954	26.64 28.40	996	31.24	1035	34.13
12560 13298 14037	3400 3600 3800	830 841 853	21.88 23.58 25.36	875 885 897	24.60 26.41 28.32	919 928 938	27.40 29.30 31.32	961 969 979	30.27 32.2534.37	1002 1009 1018	33.20 35.2837.48	1042 1048 1056	36.20 38.37 40.67	1080 1086 1093	39.25 41.53 43.91	1123 1129	44.74 47.22	1158 1165	47.98 50.58	1199	53.98
14776 15515 16254	4000 4200 4400	866 879 893	27.25 29.25 31.36	908 921 934	30.34 32.46 34.69	949 961 973	33.46 35.71 38.07	989 1000 1011	36.62 38.99 41.48	1027 1037 1048	39.83 42.31 44.92	1064 1074 1084	43.10 45.67 48.39	1101 1109 1119	46.43 49.09 51.91	1136 1144 1153	49.83 52.58 55.48	1171 1179 1187	53.28 56.12 59.11	1205 1212 1220	56.79 59.72 62.80
16992 17731 18470	4600 4800 5000	907 923 938	33.59 35.94 38.42	947 961 976	37.05 39.52 42.13	986 999 1013	40.54 43.14 45.87	1023 1036 1049	44.08 46.80 49.65	1060 1072 1084	47.65 50.49 53.47	1095 1106 1119	51.24 54.22 57.32	1129 1140 1152	54.87 57.97 61.20	1163 1173 1184	58.54 61.75 65.11	1196 1206 1216	62.26 65.58 69.04	1228 1237 1247	66.04 69.44 73.02
19209 19948 20686	5200 5400 5600	954 971 988	41.02 43.76 46.62	992 1007 1023	44.87 47.74 50.75	1028 1043 1058	48.74 51.74 54.88	1063 1077 1092	52.64 55.77 59.04	1097 1111 1125	56.58 59.83 63.23	1131 1144 1158	60.55 63.92 67.45	1164 1176 1189	64.56 68.06 71.70	1196 1208 1221	68.60 72.22 75.98	1227 1239 1251	72.66 76.41 80.30	1258 1269	76.75 80.62
21425 22164 22903	5800 6000 6200	1005 1022 1040	49.62 52.79 56.10	1040 1057 1074	53.9057.1960.62	1074 1091 1107	58.17 61.61 65.19	1108 1123 1139	62.4666.0369.75	1140 1155 1171	66.7870.4874.33	1172 1186 1201	71.12 74.95 78.94	1203 1217 1232	75.49 79.45 83.56	1234 1247 1261	79.90 83.97 88.21	1264	84.34
23642 24380	6400 6600	1059 1078	59.58 63.21	1092 1110	64.2468.00	1124 1141	68.92 72.82	1156 1172	73.6477.67	1187 1203	78.3582.53	1217 1233	83.09 87.40	1247 1262	87.84 92.29

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 501/2" INLET

4.596 SQ. FT. INSIDE AREA 4.59 SQ. FT. INSIDE AREA

A-29

29" x 231/4" OUTSIDE DIAMETER TIP SPEED (FPM) = 13.22 X RPM 29 1/4" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
4596 5515 6434	1000 1200 1400	204 216 229	0.59 0.77 0.99	270 277 287	1.10 1.35 1.65	330 337	1.99 2.34	382	3.09
7354 8273 9192	1600 1800 2000	245 261 279	1.25 1.56 1.93	299 312 326	1.99 2.38 2.84	346 356 368	2.76 3.23 3.76	388 397 407	3.56 4.11 4.72	428 435 443	4.42 5.02 5.69	464 470 477	5.31 5.97 6.70	503 509	6.96 7.75	540	8.83
10111 11030 11950	2200 2400 2600	297 317 336	2.37 2.88 3.47	341 357 374	3.36 3.94 4.61	381 396 410	4.37 5.04 5.78	418 431 444	5.39 6.15 6.98	453 464 477	6.45 7.28 8.19	486 496 507	7.53 8.43 9.42	517 526 536	8.63 9.60 10.67	547 555 564	9.77 10.80 11.93	603 609 617	12.14 13.29 14.54	660 666	15.90 17.26
12869 13788 14707	2800 3000 3200	356 377 397	4.15 4.92 5.80	392 410 429	5.35 6.19 7.13	426 443 460	6.61 7.53 8.55	459 474 489	7.89 8.89 9.99	490 504 518	9.18 10.27 11.45	519 532 545	10.49 11.66 12.92	547 559 572	11.82 13.06 14.40	574 585 597	13.16 14.48 15.90	625 635 646	15.90 17.38 18.95	674 682 692	18.74 20.34 22.06
15626 16546 17465	3400 3600 3800	418 439 461	6.78 7.87 9.09	448 468 488	8.18 9.34 10.62	477 495 514	9.66 10.89 12.23	506 523 540	11.19 12.50 13.92	533 549 565	12.73 14.12 15.62	560 575 590	14.29 15.76 17.35	585 599 614	15.85 17.41 19.09	610 623 637	17.43 19.07 20.83	657 669 682	20.63 22.43 24.35	702 713 724	23.90 25.85 27.92
18384 19303 20222	4000 4200 4400	482 504 525	10.44 11.92 13.55	508 528 549	12.03 13.58 15.26	533 552 572	13.71 15.32 17.07	558 576 595	15.46 17.13 18.95	582 599 617	17.25 19.01 20.89	606 622 639	19.06 20.89 22.87	629 645 661	20.88 22.79 24.85	652 667 682	22.71 24.71 26.84	695 709 723	26.39 28.56 30.87	736 749 763	30.12 32.45 34.92
21142 22061 22980	4600 4800 5000	547 569 591	15.32 17.26 19.35	569 590 611	17.09 19.08 21.23	592 612 632	18.98 21.03 23.25	614 633 653	20.92 23.04 25.32	635 654 673	22.92 25.10 27.45	656 674 692	24.98 27.23 29.64	677 694 712	27.04 29.38 31.88	698 714 731	29.12 31.54 34.11	738 753 769	33.32 35.90 38.64	777 791 806	37.54 40.00 43.21
23899 24818 25738	5200 5400 5600			633 654 676	23.55 26.04 28.72	653 673 694	25.63 28.18 30.92	672 692 712	27.76 30.40 33.20	692 711 731	29.97 32.66 35.53	711 729 749	32.22 34.97 37.91	730 748 766	34.53 37.34 40.34	748 766 784	36.86 39.76 42.83	785 802 818	41.54 44.60 47.84	821 836 852	46.27 49.50 52.90
26657	5800			697	31.59	715	33.84	733	36.20	750	38.58	768	41.04	785	43.53	802	46.08	835	51.27	869	56.48

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
11950	2600	713	20.09
12869 13788 14707	2800 3000 3200	719 727 735	21.68 23.39 25.24	763 769 777	24.73 26.55 28.51	805 810 817	27.85 29.81 31.88	850 855	33.14 35.33	893	38.87	928	42.46
15626 16546 17465	3400 3600 3800	744 754 765	27.22 29.33 31.56	785 794 804	30.61 32.86 35.24	824 832 841	34.08 36.45 38.97	862 869 877	37.65 40.12 42.76	898 905 912	41.31 43.89 46.63	934 940 947	54.04 47.74 50.59	968 974 980	48.84 51.67 54.63	1007 1012	55.65 58.75	1039 1044	59.70 62.93	1075	67.16
18384 19303 20222	4000 4200 4400	776 788 801	33.90 36.39 39.02	814 825 837	37.75 40.38 43.16	851 861 872	41.63 44.43 47.36	886 896 907	45.56 48.51 51.60	921 930 940	49.55 52.63 55.88	954 963 972	53.62 56.82 60.20	987 995 1003	57.76 61.08 64.58	1019 1026 1034	61.99 56.41 69.02	1050 1057 1064	66.29 69.82 73.54	1080 1087 1093	70.65 74.30 78.13
21142 22061 22980	4600 4800 5000	814 827 841	41.79 44.72 47.79	849 862 875	46.09 49.17 52.41	884 896 908	50.44 53.67 57.07	917 929 941	54.84 58.22 61.77	950 961 972	59.28 62.82 66.52	982 992 1003	63.75 67.45 71.31	1013 1022 1033	68.26 72.12 76.14	1043 1052 1062	72.83 76.83 81.00	1072 1081 1090	77.46 81.58 85.90	1101 1109 1118	82.16 86.40 90.84
23899 24818 25738	5200 5400 5600	856 870 885	51.03 54.44 58.00	889 903 918	55.82 59.39 63.13	921 935 949	60.64 64.37 68.28	953 966 979	65.49 69.38 73.46	984 996 1009	70.39 74.43 78.66	1014 1026 1038	75.33 79.53 83.91	1043 1055 1066	80.32 84.67 89.20	1072 1083 1094	85.34 89.85 94.53	1100 1111 1122	90.39 95.06 99.90	1128	95.48
26657 27576 28495	5800 6000 6200	901 917 933	61.74 65.68 69.80	932 948 963	67.05 71.15 75.42	963 978 993	72.37 76.64 81.10	993 1007 1021	77.71 82.15 86.78	1022 1036 1050	83.08 87.68 92.48	1051 1064 1077	88.48 93.25 98.21	1079 1091 1104	93.92 98.84 103.96	1106 1118 1131	99.40 104.47 109.75	1133	104.93
29414 30334	6400 6600	949 966	74.12 78.64	979 995	79.9284.60	1008 1023	85.74 90.60	1036 1051	91.6196.63	1064 1078	97.47 102.68	1091 1105	103.37 108.73	1118 1131	109.28 114.81

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

OUTLET WHEEL DIAMETER — 571/2" INLET

5.951 SQ. FT. INSIDE AREA 5.94 SQ. FT. INSIDE AREA

A-33

33" x 261/2" OUTSIDE DIAMETER TIP SPEED (FPM) = 15.05 X RPM 33 3/8" OUTSIDE DIAMETER

VOL. CFM	OUTLET VEL. FPM	.5 S.P.		1 S.P.		1.5 S.P.		2 S.P.		2.5 S.P.		3 S.P.		3.5 S.P.		4 S.P.		5 S.P.		6 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
5951 7141 8331	1000 1200 1400	179 189 202	0.76 0.99 1.28	237 244 252	1.43 1.75 2.13	290 296	2.57 3.03	335	4.00
9522 10712 11902	1600 1800 2000	215 230 245	1.62 2.02 2.50	262 274 286	2.57 3.09 3.68	304 313 324	3.57 4.18 4.88	341 349 358	4.61 5.32 6.11	376 382 389	5.72 6.49 7.37	408 413 419	6.87 7.73 8.68	442 448	9.01 10.03	475	11.44
13092 14282 15473	2200 2400 2600	261 278 295	3.07 3.73 4.49	300 314 329	4.35 5.11 5.97	335 348 361	5.65 6.52 7.49	368 379 391	6.99 7.96 9.03	398 408 419	8.35 9.42 10.60	427 436 446	9.74 10.92 12.19	454 462 471	11.17 12.44 13.81	480 487 496	12.65 13.98 15.45	530 535 542	15.72 17.21 18.82	580 586	20.58 22.35
16663 17853 19043	2800 3000 3200	313 331 349	5.37 6.37 7.50	344 360 377	6.93 8.02 9.23	374 389 404	8.56 9.75 11.07	403 416 430	10.22 11.52 12.94	430 442 455	11.89 13.30 14.83	456 467 479	13.58 15.09 16.73	481 491 503	15.30 16.91 18.65	505 514 525	17.04 18.75 20.59	550 558 568	20.59 22.50 24.54	592 599 608	24.26 26.34 28.57
20233 21424 22614	3400 3600 3800	367 386 405	8.77 10.19 11.77	394 411 429	10.59 12.09 13.76	419 435 452	12.51 14.10 15.84	444 459 474	14.49 16.18 18.02	469 482 497	16.48 18.29 20.23	492 505 518	18.50 20.41 22.46	514 527 540	20.53 22.55 24.72	536 548 560	22.57 24.70 26.97	577 588 599	26.72 29.04 31.53	617 626 636	30.95 3.48 36.15
23804 24994 26184	4000 4200 4400	424 443 462	13.51 15.43 17.54	446 464 482	15.58 17.58 19.76	469 486 503	17.75 19.84 22.11	490 506 523	20.02 22.19 24.54	512 527 542	22.34 24.61 27.06	532 547 562	24.68 27.05 29.61	553 567 581	27.03 29.52 32.17	573 586 600	29.41 32.00 34.76	611 623 636	34.17 36.99 39.97	647 659 670	39.00 42.02 45.22
27375 28565 29755	4600 4800 5000	481 500 520	19.84 22.35 25.06	500 519 537	22.13 24.70 27.49	520 538 556	24.57 27.23 30.10	539 556 574	27.08 29.83 32.79	558 575 591	29.68 32.50 35.54	577 592 608	32.34 35.26 38.38	595 610 626	35.01 38.05 41.28	614 628 643	37.71 40.84 44.17	649 662 676	43.14 46.48 50.03	683 695 708	48.60 52.18 55.95
30945 32135 33326	5200 5400 5600			556 575 594	30.49 33.72 37.19	574 592 610	33.18 36.49 40.04	591 608 626	35.95 39.36 43.00	608 625 642	38.80 42.49 46.01	625 641 658	41.72 45.28 49.09	641 657 673	44.71 48.35 52.23	658 673 689	47.73 51.48 55.46	690 704 719	53.79 57.75 61.94	721 735 749	59.92 64.10 68.50
34516	5800			613	40.91	628	43.82	644	46.87	659	49.96	675	53.14	690	56.36	705	59.66	734	66.38	763	73.14

VOL. CFM	OUTLET VEL. FPM	7 S.P.		8 S.P.		9 S.P.		10 S.P.		11 S.P.		12 S.P.		13 S.P.		14 S.P.		15 S.P.		16 S.P.
VOL. CFM	OUTLET VEL. FPM	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP	RPM	BHP
15473	2600	627	26.02
16663 17853 19043	2800 3000 3200	632 639 646	28.07 30.29 32.68	671 676 682	32.02 34.38 36.91	707 712 718	36.07 38.60 41.27	747 752	42.91 45.75	784	50.33	816	54.98
20233 21424 22614	3400 3600 3800	654 663 672	35.25 37.98 40.86	690 698 706	39.64 42.54 45.63	724 731 739	44.14 47.20 50.46	757 764 771	48.76 51.96 55.37	790 795 802	53.49 56.83 60.39	821 826 832	58.32 61.82 65.51	851 856 861	63.24 66.90 70.74	885 890	72.07 76.07	913 918	77.30 81.48	945	86.97
23804 24994 26184	4000 4200 4400	682 692 703	43.90 47.12 50.52	716 725 736	48.88 52.29 55.89	748 757 767	53.90 57.53 61.32	779 788 797	58.99 62.81 66.82	809 917 926	64.16 68.16 72.36	839 846 854	69.43 73.58 77.95	867 874 882	74.80 79.09 83.62	895 902 909	80.27 84.70 89.38	923 929 935	85.84 90.41 95.23	950 955 961	91.49 96.21 101.17
27375 28565 29755	4600 4800 5000	715 727 739	54.12 57.90 61.89	746 758 769	59.68 63.67 67.87	777 787 798	65.31 69.50 73.90	806 816 827	71.01 75.39 79.98	835 844 854	76.76 81.34 86.13	863 872 881	82.55 87.34 92.34	890 898 908	88.39 93.39 98.59	916 924 933	94.31 99.48 104.89	942 950 958	100.30 105.64 111.23	968 975 983	106.39 111.87 117.62
30945 32135 33326	5200 5400 5600	752 765 778	66.08 70.49 75.11	781 794 806	72.28 76.90 81.75	810 822 834	78.52 83.35 88.41	838 849 861	84.80 89.84 95.12	865 875 887	91.14 96.38 101.86	891 901 912	97.55 102.98 108.65	917 927 937	104.00 109.64 115.50	942 952 962	110.51 116.34 122.41	967 976 986	117.05 123.09 129.36	991	123.63
34516 35706 36896	5800 6000 6200	792 806 820	79.94 85.05 90.38	819 833 846	86.83 92.13 97.65	846 859 872	93.71 99.24 105.02	873 885 898	100.62 106.37 112.37	898 910 922	107.58 113.54 119.75	923 935 947	114.57 120.74 127.17	948 959 970	121.61 127.99 134.62	972 983 994	128.71 135.28 142.11	996	135.87
38086 39277	6400 6600	834 849	95.97 101.83	860 874	103.48 109.55	886 899	111.03 117.32	911 924	118.62 125.13	935 948	126.22 132.95	959 971	133.85 140.79	982 994	141.51 148.67

Data in bold indicates the quietest and most efficient performance. BHP does not include drive losses. Performance shown is for Industrial Blower Fans with inlet and outlet ducts.

SIZE	WHEELDIA.	SHAFT DIA.	KEYWAY	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z
7	121/8	13/16	1/4 X 1/8 X 3	18	1	7	6	13	161/4	105/8	89/16	75/8	95/8	95/8	213/4	61/8	71/4	83/8	101/4	43/16	233/8	9/16	16	10	9
9	155/8	13/16	1/4 X 1/8 X 3	171/2	11/8	9	71/2	175/8	141/2	135/16	111/16	911/16	123/16	1111/16	281/2	67/8	91/4	97/8	121/4	415/16	295/8	9/16	187/8	12	101/2
11	191/8	17/16	3/8X 3/16 X 5	22	19/16	11	91/16	17	193/4	161/2	131/4	113/4	147/8	133/4	30	75/8	111/4	115/8	141/4	511/16	313/16	9/16	221/2	14	121/16
13	225/8	111/16	3/8 X 3/16 X 5	22	19/16	13	101/2	17	193/4	191/2	155/8	137/8	179/16	157/8	31	83/8	131/4	131/8	171/4	67/16	3211/16	9/16	2211/16	17	141/2
15	261/8	115/16	1/2 X 1/4 X 5	251/2	11/8	15	121/8	221/2	231/4	221/2	181/8	161/16	205/16	191/16	363/16	93/16	151/4	161/4	191/4	93/8	407/8	11/16	25	19	161/8
17	295/8	115/16	1/2 X 1/4 X 5	27	11/8	17	13 3/4	221/2	243/4	251/2	205/8	185/16	231/16	213/8	37	111/16	171/4	177/8	211/4	103/16	423/8	11/16	28	21	173/4
19	33	23/16	1/2 X 1/4 X 6	29	11/8	19	153/8	241/2	263/4	281/2	227/8	205/16	2511/16	233/8	413/8	1113/16	191/4	201/2	241/4	111/2	47	11/16	31	24	203/8
21	361/2	27/16	5/8 X 5/16 X 6	311/2	11/8	21	17	241/2	291/4	311/2	253/8	221/2	287/16	259/16	423/16	125/8	211/4	221/8	261/4	125/16	485/8	11/16	34	26	22
23	40	211/16	5/8 X 5/16 X 7	36	11/8	23	185/8	281/2	333/4	341/2	273/4	245/8	311/8	2811/16	48	1315/16	231/4	24	271/4	133/8	543/4	11/16	37	28	235/8
26	451/8	211/16	5/8 X 5/16 X 7	421/2	11/8	26	207/8	281/2	401/4	39	313/8	273/4	353/16	313/4	491/8	151/8	261/4	261/4	301/4	141/2	57	11/16	411/2	31	257/8
29	501/2	215/16	3/4 X 3/8 X 7	493/4	11/2	29	231/4	313/4	443/4	431/2	35	31	391/4	351/8	547/8	165/8	291/4	301/4	351/4	1615/16	643/8	13/16	461/2	35	291/4
33	571/2	37/16	7/8 X 7/16 X 9	551/2	11/2	33	261/2	313/4	51	491/2	403/8	3513/16	4415/16	3913/16	581/2	181/4	333/8	34	393/8	19	683/4	13/16	53	39	321/2

SIZE	WHEELDIA.	SHAFT DIA.	KEYWAY	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z
9	155/8	17/16	3/8 X 3/16 X 3	171/2	11/8	9	71/2	175/8	141/2	135/16	111/16	911/16	123/16	1111/16	281/2	67/8	91/4	97/8	121/4	415/16	295/8	9/16	187/8	12	101/2
11	191/8	111/16	3/8 X 3/16 X 5	22	19/16	11	91/16	17	193/4	161/2	131/4	113/4	147/8	133/4	30	75/8	111/4	115/8	141/4	511/16	313/16	9/16	221/2	14	121/16
13	225/8	115/16	1/2 X 1/4 X 5	22	19/16	13	101/2	17	193/4	191/2	155/8	137/8	179/16	157/8	31	83/8	131/4	131/8	171/4	67/16	3211/16	9/16	2211/16	17	141/2
15	261/8	115/16	1/2 X 1/4 X 5	251/2	11/8	15	121/8	221/2	231/4	221/2	181/8	161/16	205/16	191/16	363/16	93/16	151/4	161/4	191/4	93/8	407/8	11/16	25	19	161/8
17	295/8	23/16	1/2 X 1/4 X 5	27	11/8	17	133/4	221/2	243/4	251/2	205/8	185/16	231/16	213/8	37	111/16	171/4	177/8	211/4	103/16	423/8	11/16	28	21	173/4
19	33	27/16	5/8 X 5/16 X 6	29	11/8	19	153/8	241/2	263/4	281/2	227/8	205/16	2511/16	233/8	413/8	1113/16	191/4	201/2	241/4	111/2	47	11/16	31	24	203/8
21	361/2	211/16	5/8 X 5/16 X 6	311/2	11/8	21	17	241/2	291/4	311/2	253/8	221/2	287/16	259/16	423/16	125/8	211/4	221/8	261/4	125/16	485/8	11/16	34	26	22
23	40	215/16	3/4 X 3/8 X 7	36	11/8	23	185/8	281/2	333/4	341/2	273/4	245/8	311/8	2811/16	48	1315/16	231/4	24	271/4	133/8	543/4	11/16	37	28	235/8
26	451/8	37/16	7/8 X 7/16 X 7	421/2	11/8	26	207/8	281/2	401/4	39	313/8	273/4	353/16	313/4	491/8	151/8	261/4	261/4	301/4	141/2	57	11/16	411/2	31	257/8
29	501/2	37/16	7/8 X 7/16 X 7	493/4	11/2	29	231/4	313/4	443/4	431/2	35	31	391/4	351/8	547/8	165/8	291/4	301/4	351/4	1615/16	643/8	13/16	461/2	35	291/4
33	571/2	315/16	1 X 1/2 X 9	551/2	11/2	33	261/2	313/4	51	491/2	403/8	3513/16	4415/16	3913/16	581/2	181/4	333/8	34	393/8	19	683/4	13/16	53	39	321/2

SIZE	WHEELDIA.	SHAFT DIA.	KEYWAY	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z	MAX. MOTOR FRAME
7	121/8	13/16	1/4 X 1/8 X 3	18	1	7	6	13	161/4	105/8	89/16	75/8	95/8	95/8	213/4	61/8	71/4	83/8	101/4	43/16	233/8	9/16	16	10	9	184T
9	155/8	13/16	1/4 X1/8 X31/2	171/2	11/8	9	71/2	175/8	141/2	135/16	111/16	911/16	123/16	1111/16	281/2	67/8	91/4	97/8	121/4	415/16	295/8	9/16	187/8	12	101/2	215T
11	191/8	17/16	3/8 X 3/16 X 5	22	19/16	11	91/16	17	193/4	161/2	131/4	113/4	147/8	133/4	30	75/8	111/4	115/8	141/4	511/16	313/16	9/16	221/2	14	121/16	254T
13	225/8	111/16	3/8 X 3/16 X 5	22	19/16	13	101/2	17	193/4	191/2	155/8	137/8	179/16	157/8	31	83/8	131/4	131/8	171/4	67/16	3211/16	9/16	2211/16	17	141/2	254T
15	261/8	115/16	1/2 X 1/2 X 5	251/2	11/8	15	121/8	221/2	231/4	221/2	181/8	161/16	205/16	191/16	363/16	93/16	151/4	161/4	191/4	93/8	407/8	11/16	25	19	161/8	286T
17	295/8	115/16	1/2 X 1/4 X 5	27	11/8	17	133/4	221/2	243/4	251/2	205/8	185/16	231/16	213/8	37	111/16	171/4	177/8	211/4	103/16	423/8	11/16	28	21	173/4	324T
19	33	23/16	1/2 X 1/4 X 6	29	11/8	19	153/8	241/2	263/4	281/2	227/8	205/16	2511/16	233/8	413/8	1113/16	191/4	201/2	241/4	111/2	47	11/16	31	24	203/8	365T
21	361/2	27/16	5/8 X 5/16 X 6	311/2	11/8	21	17	241/2	291/4	311/2	253/8	221/2	287/16	259/16	423/16	125/8	211/4	221/8	261/4	125/16	485/8	11/16	34	26	22	365T
23	40	211/16	5/8 X 5/16 X 7	36	11/8	23	185/8	281/2	333/4	341/2	273/4	245/8	311/8	2811/16	48	1315/16	231/4	24	271/4	133/8	543/4	11/16	37	28	235/8	405T
26	451/8	211/16	5/8 X 5/16 X 7	421/2	11/8	26	207/8	281/2	401/4	39	313/8	273/4	353/16	313/4	491/8	151/8	261/4	261/4	301/4	141/2	57	11/16	411/2	31	257/8	405T
29	501/2	215/16	3/4 X 3/8 X 7	493/4	11/2	29	231/4	313/4	443/4	431/2	35	31	391/4	351/8	547/8	165/8	291/4	301/4	351/4	1615/16	643/8	13/16	461/2	35	291/4	405T

SIZE	WHEELDIA.	SHAFT DIA.	KEYWAY	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z	MAX. MOTOR FRAME
7	121/8	17/16	3/8 X 3/16 X 3	18	1	7	6	13	161/4	105/8	89/16	75/8	95/8	95/8	213/4	61/8	71/4	83/8	101/4	43/16	233/8	9/16	16	10	9	184T
9	155/8	17/16	3/8 X 3/16 X 3	171/2	11/8	9	71/2	175/8	141/2	135/16	111/16	911/16	123/16	1111/16	281/2	67/8	91/4	97/8	121/4	415/16	295/8	9/16	187/8	12	101/2	215T
11	191/8	111/16	3/8 X 3/16 X 5	22	19/16	11	91/16	17	193/4	161/2	131/4	113/4	147/8	133/4	30	75/8	111/4	115/8	141/4	511/16	313/16	9/16	221/2	14	121/16	254T
13	225/8	115/16	1/2 X 1/4 X 5	22	19/16	13	101/2	17	193/4	191/2	155/8	137/8	179/16	157/8	31	83/8	131/4	131/8	171/4	67/16	3211/16	9/16	2211/16	17	141/2	254T
15	261/8	23/16	1/2 X 1/4 X 5	251/2	11/8	15	121/8	221/2	231/4	221/2	181/8	161/16	205/16	191/16	363/16	93/16	151/4	161/4	191/4	93/8	407/8	11/16	25	19	161/8	286T
17	295/8	23/16	1/2 X 1/4 X 5	27	11/8	17	133/4	221/2	243/4	251/2	205/8	185/16	231/16	213/8	37	111/16	171/4	177/8	211/4	103/16	423/8	11/16	28	21	173/4	324T
19	33	27/16	5/8 X 5/16 X 6	29	11/8	19	153/8	241/2	263/4	281/2	227/8	205/16	2511/16	233/8	413/8	1113/16	191/4	201/2	241/4	111/2	47	11/16	31	24	203/8	365T
21	361/2	211/16	5/8 X 5/16 X 6	311/2	11/8	21	17	241/2	291/4	311/2	253/8	221/2	287/16	259/16	423/16	125/8	211/4	221/8	261/4	125/16	485/8	11/16	34	26	22	365T
23	40	215/16	3/4 X 3/8 X 7	36	11/8	23	185/8	281/2	333/4	341/2	273/4	245/8	311/8	2811/16	48	1315/16	231/4	24	271/4	133/8	543/4	11/16	37	28	235/8	405T
26	451/8	215/16	3/4 X 3/8 X 7	421/2	11/8	26	207/8	281/2	401/4	39	313/8	273/4	353/16	313/4	491/8	151/8	261/4	261/4	301/4	141/2	57	11/16	411/2	31	257/8	405T
29	501/2	37/16	7/8 X 7/16 X 7	493/4	11/2	29	231/4	313/4	443/4	431/2	35	31	391/4	351/8	547/8	165/8	291/4	301/4	351/4	1615/16	643/8	13/16	461/2	35	291/4	405T

SIZE	WHEELDIA.	SHAFT DIA.	KEYWAY	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z	MAX. MOTOR FRAME
7	121/8	13/16	1/4 X 1/8 X 3	18	1	7	6	13	161/4	105/8	89/16	75/8	95/8	95/8	213/4	61/8	71/4	83/8	101/4	43/16	233/8	9/16	16	10	9	184T
9	155/8	13/16	1/4 X 1/8 X31/2	171/4	1	9	71/2	175/8	141/2	135/16	111/16	911/16	123/16	1111/16	281/2	67/8	91/4	97/8	121/4	415/16	291/2	9/16	187/8	12	101/2	215T
11	191/8	17/16	3/8 X 3/16 X 5	215/8	13/8	11	91/16	17	193/4	161/2	131/4	113/4	147/8	133/4	30	75/8	111/4	115/8	141/4	511/16	31	9/16	221/2	14	121/16	254T
13	225/8	111/16	3/8 X 3/16 X 5	215/8	13/8	13	101/2	17	193/4	191/2	155/8	137/8	179/16	157/8	31	83/8	131/4	131/8	171/4	67/16	321/2	9/16	2211/16	17	141/2	256T
15	261/8	115/16	1/2 X 1/2 X 5	251/2	7/8	15	121/8	221/2	231/4	221/2	181/8	161/16	205/16	191/16	363/16	93/16	151/4	161/4	191/4	93/8	401/2	11/16	25	19	161/8	286T
17	295/8	115/16	1/2 X 1/4 X 5	27	7/8	17	133/4	221/2	243/4	251/2	205/8	185/16	231/16	213/8	37	111/16	171/4	177/8	211/4	103/16	421/8	11/16	28	21	173/4	286T
19	33	23/16	1/2 X 1/4 X 6	29	7/8	19	153/8	241/2	263/4	281/2	227/8	205/16	2511/16	233/8	413/8	1113/16	191/4	201/2	241/4	111/2	463/4	11/16	31	24	203/8	286T
21	361/2	27/16	5/8 X 5/16 X6	311/2	7/8	21	17	241/2	291/4	311/2	253/8	221/2	287/16	259/16	423/16	125/8	211/4	221/8	261/4	125/16	483/8	11/16	34	26	22	286T
23	40	211/16	5/8 X 5/16 X 7	36	7/8	23	185/8	281/2	333/4	341/2	273/4	245/8	311/8	2811/16	48	1315/16	231/4	24	271/4	133/8	541/2	11/16	37	28	235/8	365T
26	451/8	211/16	5/8 X 5/16 X 7	421/2	7/8	26	207/8	281/2	401/4	39	313/8	273/4	353/16	313/4	491/8	151/8	261/4	261/4	301/4	141/2	563/4	11/16	411/2	31	257/8	365T

SIZE	WHEELDIA.	SHAFT DIA.	KEYWAY	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z	MAX. MOTOR FRAME
9	155/8	17/16	3/8 X 3/16 X3	171/4	1	9	71/2	175/8	141/2	135/16	111/16	911/16	123/16	1111/16	281/2	67/8	91/4	97/8	121/4	415/16	291/2	9/16	187/8	12	101/2	215T
11	191/8	111/16	3/8 X 3/16 X 5	215/8	13/8	11	91/16	17	193/4	161/2	131/4	113/4	147/8	133/4	30	75/8	111/4	115/8	141/4	511/16	31	9/16	221/2	14	121/16	254T
13	225/8	115/16	1/2 X 1/4 X 5	215/8	13/8	13	101/2	17	193/4	191/2	155/8	137/8	179/16	157/8	31	83/8	131/4	131/8	171/4	67/16	321/2	9/16	2211/16	17	141/2	256T
15	261/8	23/16	1/2 X 1/4 X 5	251/2	7/8	15	121/8	221/2	231/4	221/2	181/8	161/16	205/16	191/16	363/16	93/16	151/4	161/4	191/4	93/8	401/2	11/16	25	19	161/8	286T
17	295/8	23/16	1/2 X 1/4 X 5	27	7/8	17	133/4	221/2	243/4	251/2	205/8	185/16	231/16	213/8	37	111/16	171/4	177/8	211/4	103/16	421/8	11/16	28	21	173/4	286T
19	33	27/16	5/8 X 5/16 X 6	29	7/8	19	153/8	241/2	263/4	281/2	227/8	205/16	2511/16	233/8	413/8	1113/16	191/4	201/2	241/4	111/2	463/4	11/16	31	24	203/8	286T
21	361/2	211/16	5/8 X 5/16 X6	311/2	7/8	21	17	241/2	291/4	311/2	253/8	221/2	287/16	259/16	423/16	125/8	211/4	221/8	261/4	125/16	483/8	11/16	34	26	22	286T
23	40	215/16	3/4 X 3/8 X 7	36	7/8	23	185/8	281/2	333/4	341/2	273/4	245/8	311/8	2811/16	48	1315/16	231/4	24	271/4	133/8	541/2	11/16	37	28	235/8	365T
26	451/8	37/16	7/8 X 7/16 X7	421/2	7/8	26	207/8	281/2	401/4	39	313/8	273/4	353/16	313/4	491/8	151/8	261/4	261/4	301/4	141/2	563/4	11/16	411/2	31	257/8	365T

SIZE	WHEEL DIA.	MOTOR FRAME SIZE		A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z
SIZE	WHEEL DIA.	MAX.	MIN.	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	X	Y	Z
7	121/8	184T	48	18	1	7	6	13	161/4	105/8	89/16	75/8	95/8	95/8	183/16	61/8	71/4	83/8	101/4	43/16	233/8	9/16	123/4	10	9
9	155/8	184T	48	161/2	15/16	9	71/2	121/4	141/2	135/16	111/16	911/16	123/16	1111/16	181/8	67/8	91/4	115/8	121/4	71/16	261/16	9/16	153/4	12	101/2
11	191/8	215T	48	181/2	15/16	11	91/16	161/4	161/2	161/2	131/4	113/4	147/8	133/4	2215/16	75/8	111/4	131/4	141/4	77/8	315/8	9/16	19	14	121/16
13	225/8	256T	56	191/4	15/16	13	101/2	181/4	171/4	191/2	155/8	137/8	179/16	157/8	255/8	83/8	131/4	145/8	171/4	89/16	351/16	9/16	22	17	141/2
15	261/8	256T	143T	251/2	13/8	15	121/8	201/4	231/4	221/2	181/8	161/16	205/16	191/16	281/2	93/16	151/4	161/4	191/4	93/8	383/4	11/16	25	19	161/8
17	295/8	284T	182T	27	11/8	17	133/4	221/2	243/4	251/2	205/8	185/16	231/16	213/8	3011/16	111/16	171/4	177/8	211/4	103/16	423/8	11/16	28	21	173/4
19	33	286T	213T	29	13/8	19	153/8	223/4	263/4	281/2	227/8	205/16	2511/16	233/8	351/8	1113/16	191/4	201/2	241/4	111/2	451/2	11/16	31	24	203/8
21	361/2	286T	213T	311/2	11/8	21	17	223/4	291/4	311/2	253/8	221/2	287/16	259/16	3515/16	125/8	211/4	221/8	261/4	125/16	471/8	11/16	34	26	22

Standard Duty Construction

Heavy Duty Construction

MODEL NUMBER	WHEEL DIAMETER	STD. SHAFT & BRGS. DIAMETER	HOUSING GAUGE		BACKPLATE	WHEEL GAUGE BLADE SHROUD		REIN. RING
MODEL NUMBER	WHEEL DIAMETER	STD. SHAFT & BRGS. DIAMETER	BAND	FACE	A, M & L	A, M & L	A & M	A
7	121/8	13/16	12	12	7	7	—	—
9	155/8	13/16	12	12	7	7	10	10
11	191/8	17/16	12	12	7	7	10	10
13	225/8	111/16	12	12	7	7	10	10
15	261/8	115/16	12	12	7	7	10	10
17	295/8	115/16	12	10	1/4	7	7	10
19	33	23/16	12	10	1/4	7	7	7
21	361/2	27/16	12	10	5/16	7	7	7
23	40	211/16	10	10	5/16	7	7	7
26	451/8	211/16	10	7	3/8	1/4	7	7
29	501/2	215/16	10	7	3/8	1/4	7	1/4
33	571/2	37/16	7	7	1/2	5/16	7	1/4

MODEL NUMBER	WHEEL DIAMETER	SHAFT & BRGS. DIAMETER	HOUSING GAGE		BACKPLATE	WHEEL GAUGE BLADE	SHROUD
MODEL NUMBER	WHEEL DIAMETER	SHAFT & BRGS. DIAMETER	BAND	FACE	M	M	M
9	155/8	17/16	10	10	7	7	10
11	191/8	111/16	10	10	7	7	10
13	225/8	115/16	10	10	1/4	7	10
15	261/8	23/16	10	10	1/4	7	10
17	295/8	23/16	10	7	5/16	1/4	7
19	33	27/16	10	7	5/16	1/4	7
21	361/2	211/16	10	7	3/8	1/4	7
23	40	215/16	7	7	3/8	1/4	7
26	451/8	37/16	7	1/4	1/2	5/16	1/4
29	501/2	37/16	7	1/4	1/2	5/16	1/4
33	571/2	315/16	1/4	1/4	5/8	3/8	1/4

Rotatable Discharge

Size 07 through Size 33 are bolted side plate to bearing support, and may be rotated in the field to any one of the standard discharge positions. Increments of rotation are as follows:
Size 07 Through 17 Size 19 Through 23 Size 26 Through 33	— — —	221/2° 15° 111/4°

Wheel Weights with WR²in Lbs. Ft²for Wheel and Shaft

TYPE		9	11	13	15	17	19	21	23	26	29	33
“M”	WEIGHT	20	44	58	69	112	152	213	280	395	508	800
“M”	WR2	6.4	13.7	25.3	40	84	141	241	381	537	1102	2250
“A”	WEIGHT	39	57	69	93	142	176	265	302	439	562	926
“A”	WR2	12.4	17.7	30	54	106	199	300	411	597	1219	2604

Fans to be NIS-CO Blower Model (A,L, or M), belt drive, of the arrangement indicated. Fans to be constructed of heavy gauge steel and coated with a baked polyester coating over phosphatize-cleaned steel. The finish color to be gray. All fans to be checked for balance by a portable electronic balancing unit, while operating at the specified fan RPM.

Wheels and Housings

The housings to have inlet diameters and outlet areas in accordance with the latest AMCA standards for Industrial Blower Fans. All housings to be constructed of prime steel plate, continuous welded, and rigidly braced.

The wheel types shall be:

Type M – Heavy plate steel, all welded and dynamically balanced. Suitable for efficient handling of air containing granular materials, sawdust, grain, dust and particle-laden industrial process air or gas.

Type L – Constructed the same as the Type M wheel, but with no front plate. Heavy plate steel, all welded and dynamically balanced. Suitable for wood shavings, paper strips, textile scraps, wood and ensilage.

Type A – Heavy plate steel, all welded and dynamically balanced. Suitable for higher efficiency air handling of fumes, gages, or air containing fine particles.

Bearings

The bearings are to have a L-50 life of 100,000 average life hours and are to be either single row ball bearings, double roller spherical roller one-piece and two-piece housings. All bearings to have grease fittings for re-lubrication.

Motor and Drives

Motors shall be T-frame, 1800 or 3600 RPM, Open Drip Proof (ODP) Total Enclosed Fan Cooled (TEFC), or Explosion Proof (EXP). All drive belts and sheaves shall be sized for a service factor of 1.5.

Accessories

Accessories include weather covers, belt guards, access doors, drain, inlet flange, outlet flange, companion flanges, screens, spark resistant construction, dampers, and vibration isolation.

Useful Conveying Data Areas and Circumferences of Circles

Friction Loss in Inches of Water Per 100 Feet Round Duct

MATERIAL	AVG. CONVEYING VELOCITY, F.P.M.	APPROX. DENSITY LBS. PER CU. FT	SUCTION PICKUP INCHES WATER
BARLEY	5500	38	3.5
BEANS	5000	28	3.0
BRAN	3200	16	2.0
CEMENT	7000	100	5.0
CINDERS	6000	45	4.0
COAL DUST	4000	55	3.0
COFFEE BEANS	4500	26	3.0
CORK GROUND	3000	14	1.5
CORN COBS	5500	25	2.5
CORN SHELLED	5500	45	3.5
COTTON	3500	5	2.0
FEATHERS	3000	5	1.5
FRUIT DRIED	4000	30	3.0
GRINDING DUST	4500	30	2.0
HAIR	3000	5	1.5
LIME	5500	30	3.0
LINT	2000	5	1.0
MALT	4500	35	3.0
PAPER, SHREDDED	5000	20	3.0
RAGS	4000	30	2.5
RUBBER DUST	4000	30	3.0
SAND	7000	105	5.0
SANDBLAST DUST	5000	45	3.5
SAWDUST	3500	12	2.5
TANBARK	3500	20	2.5
WHEAT	6000	46	4.0
WOOD SHAVINGS	3500	15	3.0
WOOL	4000	5	2.0

DIA. IN.	AREA		CIRCUMFERENCE		DIA. IN.	AREA		CIRCUMFERENCE
DIA. IN.	SQ. IN.	SQ. FT.	IN.	FT.	DIA. IN.	SQ. IN.	SQ. FT.	IN.	FT.
1 2 3 4 5	0.78 3.14 7.07 12.57 19.63	0.005 0.002 0.049 0.087 0.136	3.14 6.28 9.42 12.57 15.71	0.262 0.524 0.785 1.047 1.309	51 52 53 54 55	2043 2124 2206 2290 2376	14.19 14.75 15.32 15.90 16.50	160.2 163.4 166.5 169.6 172.8	13.35 13.61 13.88 14.14 14.40
6 7 8 9 10	28.27 38.48 50.27 63.62 78.54	0.196 0.267 0.349 0.442 0.545	18.85 21.99 25.13 28.27 31.42	1.571 1.833 2.094 2.356 2.618	56 57 58 59 60	2463 2552 2642 2734 2827	17.10 17.72 18.35 18.99 19.63	175.9 179.1 182.2 185.4 188.5	14.66 14.92 15.18 15.45 15.71
11 12 13 14 15	95.03 113.10 132.73 153.94 176.71	0.660 0.785 0.922 1.069 1.227	34.56 37.70 40.84 43.98 47.12	2.880 3.142 3.403 3.665 3.927	61 62 63 64 65	2922 3019 3117 3217 3318	20.29 20.97 21.65 22.34 23.04	191.6 194.8 197.9 201.1 204.2	15.97 16.23 16.49 16.76 17.02
16 17 18 19 20	201.06 226.98 254.47 283.53 314.16	1.396 1.576 1.767 1.969 2.182	50.26 53.41 56.55 59.69 62.83	4.189 4.451 4.712 4.974 5.236	66 67 68 69 70	3421 3526 3632 3739 3848	23.76 24.48 25.22 25.97 26.73	207.3 210.5 213.6 216.8 219.9	17.28 17.54 17.80 18.06 18.33
21 22 23 24 25	346.36 380.13 415.48 452.39 490.87	2.405 2.640 2.885 3.142 3.409	65.97 69.11 72.26 75.40 78.54	5.498 5.760 6.021 6.283 6.545	71 72 73 74 75	3959 4070 4185 4301 4418	27.49 28.27 29.07 29.87 30.68	223.1 226.2 229.3 232.5 235.6	18.59 18.85 19.11 19.37 19.63
26 27 28 29 30	530.90 572.60 615.70 660.50 706.90	3.690 3.980 4.280 4.590 4.910	81.70 84.80 88.00 91.10 94.20	6.810 7.070 7.330 7.590 7.850	76 77 78 79 80	4536 4657 4778 4902 5026	31.50 32.34 33.18 34.04 34.91	238.8 241.9 245.0 248.2 251.3	19.90 20.16 20.42 20.68 20.94
31 32 33 34 35	754.80 804.20 855.30 907.90 962.10	5.240 5.580 5.940 6.300 6.680	97.40 100.50 103.70 106.90 110.00	8.120 8.380 8.640 8.900 9.160	81 82 83 84 85	5153 5281 5411 5542 5674	35.78 36.67 37.57 38.48 39.41	254.5 257.6 260.8 263.9 267.0	21.21 21.47 21.73 21.99 22.25
36 37 38 39 40	1017.90 1075.20 1134.10 1194.60 1256.60	7.070 7.470 7.880 8.300 8.730	113.10 116.20 119.40 122.50 125.70	9.420 9.690 9.950 10.210 10.470	86 87 88 89 90	5809 5954 6082 6221 6362	40.34 41.28 42.24 43.20 44.18	270.2 273.3 276.5 279.6 282.7	22.51 22.78 23.04 23.30 23.56
41 42 43 44 45	1320.30 1385.40 1452.20 1520.50 1590.40	9.170 9.620 10.080 10.560 11.040	128.80 131.90 135.10 138.20 141.40	10.730 10.990 11.260 11.520 11.780	91 92 93 94 95	6504 6648 6793 6940 7088	45.17 46.16 47.17 48.19 49.22	285.9 289.0 292.2 295.3 298.5	23.82 24.09 24.35 24.61 24.87
46 47 48 49 50	1661.90 1734.90 1809.60 1885.70 1963.50	11.540 12.050 12.570 13.100 13.610	144.50 147.70 150.80 153.90 157.10	12.040 12.300 12.570 12.830 13.090	96 97 98 99 100	7238 7390 7543 7698 7854	50.27 51.32 52.38 53.46 54.54	301.6 304.7 607.9 311.0 314.2	25.13 25.39 25.66 25.92 26.18

PIPE DIA.
VEL
FPM	CFM	FL	CFM	FL	CFM	FL	CFM	FL	CFM	FL	CFM	FL	CFM	FL	CFM	FL	CFM		FL	CFM	FL	CFM		FL	CFM	FL	CFM		FL	CFM		FL
2000	175	1.8	273	1.4	393	1.1	535	0.9	698	0.77	1092	0.58	1571	0.47	2140	0.38	2790	0.33		3540	0.28		4370	0.25	5280 0.22			6280 0.20			9818 0.15
2200	192	2.2	300	1.6	432	1.3	588	1.1	768	0.93	1200	0.70	1728	0.56	2350	0.46	3070	0.38		3890	0.33		4810	0.30	5810 0.27			6920 0.24 10810 0.18
2400	209	2.6	327	1.9	472	1.6	642	1.3	838	1.10	1310	0.82	1885	0.65	2565	0.54	3350	0.46		4240	0.40		5230	0.35	6330 0.32			7550 0.28 11800 0.22
2600	227	3.0	355	2.3	511	1.8	695	1.5	909	1.30	1420	0.96	2040	0.77	2780	0.64	3630	0.54		4600	0.47		5680	0.41	6870 0.37			8180 0.33 12780 0.25
2800	245	3.4	382	2.7	550	2.1	748	1.7	977	1.50	1530	1.10	2200	0.87	2990	0.73	3910	0.63		4950	0.54		6110	0.47	7390 0.43			8800 0.38 13760 0.29
3000	262	3.9	409	3.0	588	2.4	802	2.0	1048	1.70	1638	1.30	2355	1.10	3210	0.84	4180	0.71		5310	0.63		6550	0.54	7920 0.48			9430 0.44 14720 0.33
3200	279	4.5	437	3.3	628	2.7	855	2.3	1118	1.90	1748	1.40	2510	1.20	3420	0.95	4470	0.82		5660	0.70		6980	0.62	8450 0.55 10060 0.49 15710 0.37
3400	297	5.0	464	3.8	668	3.1	910	2.6	1188	2.20	1855	1.60	2670	1.30	3630	1.10	4750	0.92		6020	0.78		7430	0.69	8970 0.62 10700 0.56 16700 0.42
3600	314	5.6	492	4.3	707	3.4	962	2.8	1258	2.40	1965	1.80	2825	1.40	3840	1.20	5025	1.00		6370	0.87		7860	0.77	9500 0.68 11320 0.62 17700 0.47
3800	332	6.2	518	4.8	746	3.8	1018	3.2	1327	2.70	2070	2.00	2985	1.60	4060	1.30	5300	1.10		6720	0.97		8300	0.86	10050 0.76 11950 0.68 18680 0.53
4000	350	6.9	546	5.3	786	4.3	1070	3.5	1396	2.90	2184	2.20	3142	1.80	4280	1.50	5580	1.30		7080	1.10		8740	0.95	10560 0.84 12560 0.76 19640 0.58
4200	367	7.8	573	5.8	825	4.8	1125	3.9	1467	3.20	2290	2.50	3300	2.00	4400	1.60	5870	1.40		7430	1.20		9170	1.10	11100 0.96 13210 0.88 20620 0.66
4400	384	8.8	600	6.4	864	5.4	1176	4.4	1536	3.70	2400	2.80	3456	2.20	4700	1.80	6140	1.50		7780	1.30		9620	1.20	11620 1.10 13840 0.96 21620 0.72
4800	418 10.0		654	7.6	944	6.4	1284	5.2	1676	4.40	2620	3.30	3770	2.60	5130	2.20	6700	1.80		8480	1.60 10460			1.40	12660 1.30 15100 1.10 23600 0.88
5200	454 12.0		710	9.2	1022	7.2	1390	6.0	1818	5.20	2840	3.80	4080	3.10	5560	2.60	7260	2.20		9200	1.90 11360			1.60	13740 1.50 16360 1.30 25560 1.00
5600	490 14.0		764 11.0		1100	8.4	1496	6.8	1954	6.00	3060	4.40	4400	3.50	5980	2.90	7820	2.50		9900	2.20 12220			1.90	14780 1.70 17600 1.50 27520 1.20

DUCT DIAMETER INCHES	SYSTEMS CARRYING DUST	SYSTEMS CARRYING NON-CORROSIVE GASES AND VAPORS
	U.S. STANDARD GAUGE
8 AND UNDER 9 TO 18 19 TO 30 31 AND OVER	20 18 16 14	24 22 20 18

OZ. PER	LBS. PER	IN. OF	IN. OF	OZ. PER	LBS. PER	IN. OF	IN. OF
SQ. IN.	SQ. IN.	WATER	MERCURY	SQ. IN.	SQ. IN.	WATER	MERCURY
1	0.0625	1.7320	0.1276	12	0.7500	20.7842	1.5306
2	0.1250	3.4640	0.2551	13	0.8125	22.5162	1.6582
3	0.1875	5.1960	0.3827	14	0.8750	24.2483	1.7857
4	0.2500	6.9280	0.5102	15	0.9375	25.9803	1.9133
5	0.3125	8.6600	0.6378	16	1.0000	27.7123	2.0408
6	0.3750	10.3921	0.7653	18	1.1250	31.1763	2.2959
7	0.4375	12.1241	0.8929	20	1.2500	34.6404	2.5510
8	0.5000	13.8561	1.0204	24	1.5000	41.5684	3.0612
9	0.5625	15.5882	1.1480	28	1.7500	48.4965	3.5714
10	0.6250	17.3202	1.2755	32	2.0000	55.4246	4.0816
11	0.6875	19.0522	1.4030

			PRESSURE
	U.S. SYSTEM			METRIC
psi	"WG	"Hg	N/m2*	mmWG	mmHg	atm
1	27.736	2.036	6894.7	704.49	51.714	0.06805
0.03605	1	0.07341	248.36	25.4	1.8628	0.00245
0.49116	13.623	1	3386.4	346.02	25.4	0.03342
0.000145	0.00403	0.000295	1	0.10219	0.0075	0.0000098
0.00142	0.03937	0.00289	9.7863	1	0.07341	0.00009661
0.01934	0.53632	0.03937	133.32	13.623	1	0.001316
14.696	407.61	29.92	101325	10353	760	1

WG at 70°F or 21.11°C Hg at 32°F or 0° C *1 Pascals = 1 N/m²

	VOLUME FLOW
U.S. SYSTEM		METRIC
cfm	m3/sec	m3/min	m3/hr
1 2118.9 35.314 0.58858	0.000472 1 0.01667 0.0002887	0.02832 60 1 0.01667	1.699 3600 60 1

VELOCITY			POWER		TEMPERATURE
U.S. SYSTEM	METRIC	U.S. SYSTEM	METRIC		°F = (9/5°C +32°) °C = 5/9 (°F -32°)
fpm	m/sec	hp	W	kW
1 196.85	0.00508 1	1 0.00134 1.341	745.70 1 1000	.7457 0.001 1

Contact NIS-CO today to find out more about our full line of world class backward inclined blowers to meet all of your industrial blower fan needs. Our backward inclined blowers are used in both commercial and industrial applications and are used all over Canada and the United States. Our Industrial Blowers and Large Industrial Fans come in both Direct Drive Blower and Belt Drive Blower configurations. You can also choose between forward curve blowers and backward inclined blowers, depending on your needs ventilating.com fanblower.com highpressureblower.net industrialblowerfan.com industrialfanblower.net industrialfanblower.com pressureblower.net industrialpressureblower.com tenderall.com chicagoblowercanada.com cbblower.com buffaloblower.com buffalofan.com nis-co.com canadianblower.com olegsystems.com canadablower.com abbblower.com acmefan.net industrialblower.net fansandblowers.net americanblower.net barryfan.com cincinnatifan.net canadafans.com barryfan.net. We also carry a range of centrifugal blower fans which are high rated and high temperature blowers. We also carry a wide range of propeller fans, plenum fans, large Canada Blower industrial fans which can come in both belt drive and direct drive configurations. - Single fan installations are generally less expensive than multiple fan installations. - Multiple fan installations have the advantage of airflow redundancy, i.e. a percentage of airflow will always be available whilst a fan is off line for maintenance or component change out. - Single fan options do not provide any capacity for redundancy airflow The purchase of fan spares. The purchase of spares (motor impeller shafts bearings motor, impeller, shafts, bearings, blades etc) is good management and should be included as upfront capital expenditure.

Industrial Fans & Industrial Blowers

Correction Factor Table - Industrial Blower Fan

Data needed to fill requirements for Industrial Blower Fan:

Static and Dynamic Balancing

Standard Duty Construction - Industrial Blower Fans

Heavy Duty Construction - Industrial Blower Fans

Standards adopted for spark-resistant Industrial Blower Fan AMCA Standard 99-0401-86

Spark Resistant — Type A:

Spark Resistant — Type B:

Spark Resistant — Type C:

0.277 SQ. FT. INSIDE AREA 0.267 SQ. FT. INSIDE AREA

0.44 SQ. FT. INSIDE AREA 0.44 SQ. FT. INSIDE AREA

0.657 SQ. FT. INSIDE AREA 0.66 SQ. FT. INSIDE AREA

0.918 SQ. FT. INSIDE AREA 0.92 SQ. FT. INSIDE AREA

1.222 SQ. FT. INSIDE AREA 1.23 SQ. FT. INSIDE AREA

1.57 SQ. FT. INSIDE AREA 1.58 SQ. FT. INSIDE AREA

1.961 SQ. FT. INSIDE AREA 1.97 SQ. FT. INSIDE AREA

2.41 SQ. FT. INSIDE AREA 2.40 SQ. FT. INSIDE AREA

2.89 SQ. FT. INSIDE AREA 2.88 SQ. FT. INSIDE AREA

3.694 SQ. FT. INSIDE AREA 3.69 SQ. FT. INSIDE AREA

4.596 SQ. FT. INSIDE AREA 4.59 SQ. FT. INSIDE AREA

4.596 SQ. FT. INSIDE AREA 4.59 SQ. FT. INSIDE AREA

5.951 SQ. FT. INSIDE AREA 5.94 SQ. FT. INSIDE AREA

Standard Duty Construction

Rotatable Discharge

Wheel Weights with WR2 in Lbs. Ft2 for Wheel and Shaft

Bearings

Motor and Drives

Accessories

Useful Conveying Data Areas and Circumferences of Circles

Wheel Weights with WR²in Lbs. Ft²for Wheel and Shaft
